LED stage curtain video wall outdoor p6.5
LED stage curtain video wall outdoor p6.5
Specifications
Place of Origin :
shenzhen,China mainland
Brand Name :
GCL
Certification :
CE,RoHS,ISO9001,CCC
Description

LED stage curtain video wall outdoor p6.5

Product Description

1. high definition and hig quality image

2. flexibility, can made up to many shapes of stage;

3. high hollowing-out rate, lighter weight;

4. precise image, no mosaic and no flicker;

5. energy saving and environment protecton;

6. long lifespan;


Module		 specification P6.5
Pixel pitch 6.5mm
pixel configuaration 1R1G1B
density 23670dot/m2
module size 416*208mm
module resolution 64*32 dot
led type SMD3535
brightness 3000cd/m2
Cabinet cabinet size 416*832mm
cabinet resolution 64*108 dot
viewing angle H: 120º ; V: 120 º
protective grade IP65
max power consumption 1000w/m2
average power consuption 440w/m2
best viewing distance 6-100m
weight 18kg
material steel/aluminum
Screen operation temperature -20 ℃~50 ℃
operation humidity 10%-90%RH
driving method 1/8 scan
woking voltage AC85~264V(47-63hz)
colors 687 Million Colors
refreash rate 1200hz
smoothness ±0.1mm
MTBF >10,000hr
lifespan >100,000hr
LED failed <0.0001(zero when delivery)
Control system and LED Adopted control system PCTV Board + DVI Board + Control Board + Network cable Transmission
video signal RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
LED parameter R: (620-623nm) G: (519-522nm) B: (466-467 nm)
R: IV(800-1200mcd) G: IV(1800-2300mcd) B: IV(450-520mcd)
Brightness level Manual adjustment: 256 levels for R, G, B
Automatic adjustment: 16 grades for each color

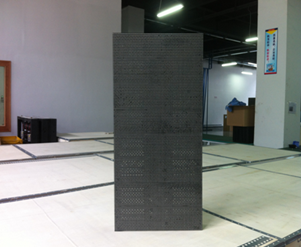

Module

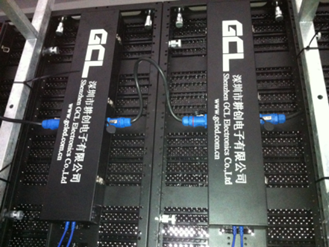

Cabinet

LED stage curtain video wall outdoor p6.5

LED stage curtain video wall outdoor p6.5

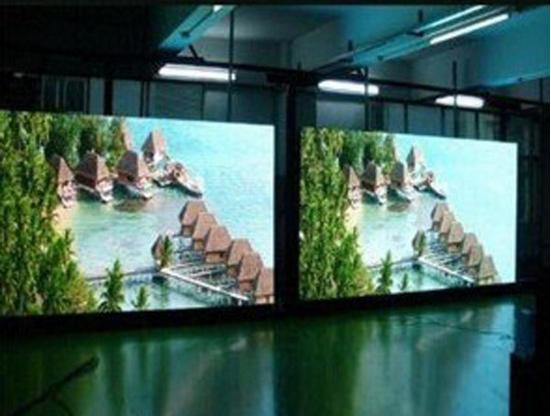

Application

LED stage curtain video wall outdoor p6.5LED stage curtain video wall outdoor p6.5

Company Information

a. our company was founded in 1999 with 16-year experience in the production of led display, which is one of the top 30 manufacturers in this field.

b. our company has over 10000sqm production base and over 2000sqm offices, and it is located in shenzhen.

c. our company has finished many big projects both at home and at abroad, and gets many good feedback from our customers.

Company Appearance

LED stage curtain video wall outdoor p6.5

Producting Line

LED stage curtain video wall outdoor p6.5

Certificates

LED stage curtain video wall outdoor p6.5
