Specifications
Place of Origin :
Shenzhen
Brand Name :
GCL
Certification :
CE,RoHs,CCC,ISO9001
Description

Quick Details

  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:GCL
  • Model Number:GC-IOS-P8
  • Usage:Indoor
  • Tube Chip Color:Full Color
  • Display Function:Video
  • Pixels:8mm
  • Pixel configuration:1R1G1B
  • Control System:Linsn
  • LED Standard:SMD 3in1 3528
  • LED Chip:Opto(Epistar)&Silan
  • Viewing angle:H:150, V:120
  • Certificates:CE&ROHS&CCC&ISO9001
  • Warranty:Two years

Packaging & Delivery

Packaging Details:1.Wooden case or Flight case 2.Also can according to your requirement 3.Flight case used for rent
Delivery Detail:1-50 sqm,within 2 weeks;50-100 sqm,within 3 weeks.

New invention p8 indoor led smd led true color module displays

Features:

1.Opto&Silan&Epistar led chip
2.Electricity saving
3.good quality
4.vivid image and fantastic color
5.long life span

  • With good lightening accordance and no mosaic.
  • Can play different formats of image files, flash, video signal from TV, video and other equipments.
  • Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.
  • High brightness, and can be adjustable, meets the needs of customer's requirements.
  • Uses real pixels rather than virtual pixcels, better viewing effect .

Technical Parameters:

GC-OFC-P16
Screen body areaAny size can be designed
GC-IOS-P8
Pitch8mm
Module Size256mm*128mm
Module cabinet24(pcs)
Module Resolution32*16(dot)
Cabinet Size1024mm*768mm
Resolution/cabinet128*96(dot)
Density15,625(dot/ m2 )
Pixel configuration1R1G1B
LED StandardSMD3528
PowerAverage Power: 290W/m2
Driving methodConstant driving 1/8 Scan
Brightness≥1500cd/m2
Viewing Angle(H/V)H: 150° V: 120°
The Optimal viewing distance7-80m
Control ModeVideo Sync
Rate≥1200HZ
IP Degree65
Operating ambient humidity10%-95%
Color687Million Colors
Lifespan>100,000hrs
MTBF>50,000hrs
LED Failed<0.00001
Control ModeVideo Sync
Rate≥800HZ
Encapsulation modeJiuzhou
Adopted Control System:PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal:RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION
- YPbPr, PAL/NTSC, HDMI, VGA, HD_SDI etc
LED parametr:R: (620-623nm) G: (519-522nm) B: (466-467nm)
IV(800-1200mcd) G: IV1800-2300mcd) B: IV(450-520mcd)
Brightness adjustment:Manual adjustment: 256 levels for R, G, B
Automatic adjustment: 8 grades for each color

Application area:

♥Indoor advertising, digital billboards, advertising for big companies.

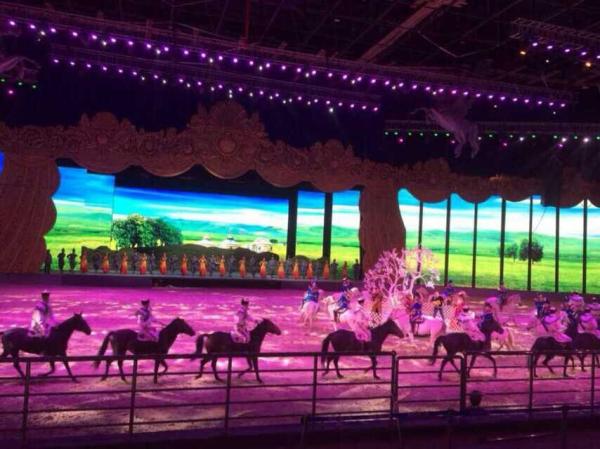

♥Stage background.

♥Airports, bus stations and railway passenger terminals.

♥Department stores, banks and car dealerships.

♥Show-business, concerts, festivals, and other public events.
