Specifications
Place of Origin :
CN
Brand Name :
YANGKE
Model Number :
QSP60GF
Certification :
ISO9001, ISO14001, SGS
Description

Perkins generator standard specification

3P,50Hz@1500RPM,400/230V(380/220V and 415/240V are for optional)

Genset Model: QSP48GF
Engine Model: 1103A-33TG2
Rated power:48KW/60KVA
Standby power:52.8KW/66KVA

General Features:

● Composed of Perkins diesel engine and Stamford or Yangke alternator
● 24V DC start motor and storage battery
● Brush-less, Self-excited, IP23, insulation class H alternator
● Engine cooling system:water-cooled
● Key start panel control system as standard,digital auto-start panel is optional
● Canopy: Super silent, Normal silent, trailer.
● Optional open type or super silent type, ATS and Standby power: synchronizing/paralleling system.
● Steel base frame with Anti-Vibration mounting, base fuel tank with flexible rubber fuel lube and level indicator.
● Overall sprayed powder coating.
● All generating sets are gone through rigorous testing before being released to the market place,including 50% load,75% load, 100% load, 110% load and all protection function(over-speed stop, high water temperature, low oil pressure, battery charging failure, emergency stop)

ENGINE BASIC DATA

NO. of Sylinder & type:3 in line
Air intake way:Turbocharged
Bore*Stroke(mm):105×127
Cubic Capacity (L): 3.3
BMPE(kpa):1333
Compression ratio:17.25:1
Rated speed(RPM): 1500
Rated power:55KW/68.75KVA
Gross power:60.5KW/75.6KVA
Piston speed(m/s):6.35
Engine Coolant flow(L/s):125.5
Air intake flow(L/s):3.8
Exhaust temperature (℃):557
Overall thermal efficiency 39.2%

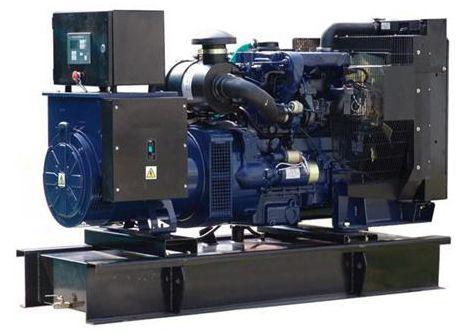

Open frame type
Size(L*W*H, mm):2030×730×1565
Gross weight: 880kg

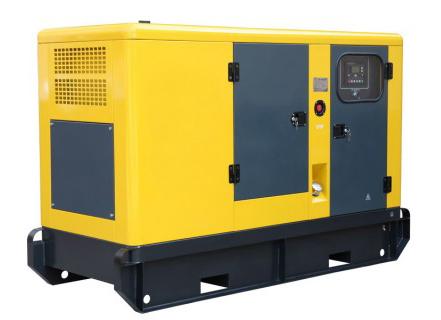

Super silent canopy
Over size (L*W*H, mm):2330×1100×1830
Gross weight: 1450kg
