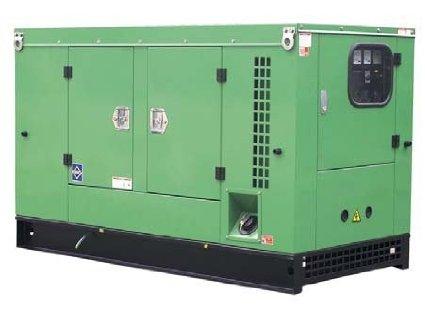

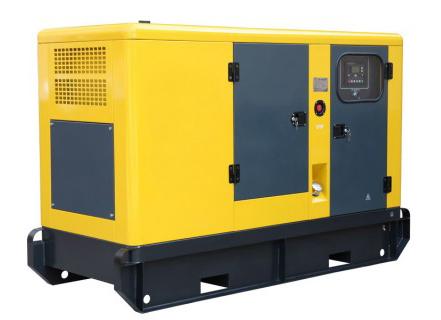

new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
new 15kva diesel power generator Super silent 12kw diesel generator set by yuchai YC2108D
Specifications
Place of Origin :
Yangzhou CHINA
Brand Name :
YANGKE
Model Number :
QSY15
Certification :
ISO9001; ISO14001
Description

15kva diesel power generator 12kw diesel generator set data

General Features:
● Composed of YUCHAI diesel engine and Yangke alternator
● 24V DC start motor and storage battery
● Brush-less, Self-excited, IP23, insulation class H alternator
● Engine cooling system:water-cooled
● Key start panel control system as standard,digital auto-start panel is optional
● 10-hour operation base tank
● Optional open type or silent type
● All generating sets are gone through rigorous testing before being released to the market place,including 50% load, 75% load, 100% load, 110% load and all protection function(over-speed stop, high water temperature, low oil pressure, battery charging failure, emergency stop)

Engine Data

Model:YC2108D
Number of Cylinders: 2
Cylinder Arrangement: Vertical in-line
Cycle: 4 stroke
Aspiration: Natural
Bore x Stroke(mm x mm): 108 x 120
Displacement(Liter): 2.199
Prime Power/Speed (kW/rpm): 18 / 1500
Standby Power/Speed(kW/rpm): 21 / 1500
Speed Governor: Mechanical
Cooling System: Water-cooled
Speed Stability(%): ≤5%

Open Type
Overall size (L*W*H)
1450 x 750 x 1250
Weight: 620kg

Super Silent Type
Overall size (L*W*H)
2100 x 1050 x 1550
Weight:780kg
