60kw 75kva diesel generator set data

Dimension and WeightOpen TypeOpen Type
Overall size (L*W*H)
2300 x 1150 x 1500
Weight: 1350kg

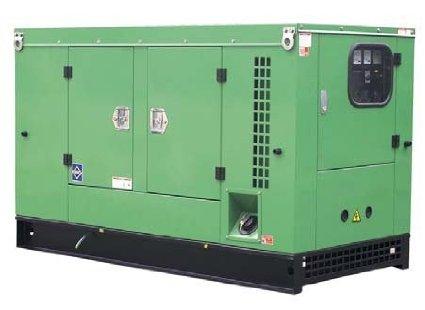

Super Silent Type
Overall size (L*W*H)
2860 x 1200 x 2100
Weight:1800kg

China ENGINE SPECIFICATION

YUCHAI Engine Model: YC6B100-D20
Number of Cylinders: 6
Cylinder Arrangement: Vertical in-line
Cycle: 4 stroke
Aspiration: Natural
Bore x Stroke(mm x mm): 108 x 125
Displacement(Liter): 6.871
Prime Power/Speed (kW/rpm): 70 / 1500
Standby Power/Speed(kW/rpm): 73.3 / 1500
Speed Governor: Mechanical
Cooling System: Water-cooled
Speed Stability(%): ≤5%

Fuel Consumptionat 1500RPM
110% 66KW: 258g/kW.h
100% 60KW: 235g/kW.h
75% 45KW: 176g/kW.h
50% 30KW: 115g/kW.h
25% 15KW: 58g/kW.h

ALTERNATOR SPECIFICATION
Alternators neet the requirement of BSEN 60034 and the relevant section of other international standards such as BS5000,VDE0530,NEMA MG1-32,IEC34,CSA22.2-100,As1359,and other standards and certifications can be considered on request.
The2/3 pitch design avoids excessive neutral currents.With the 2/3 pitch and carefully selected pole and tooth designs,ensures very low waveform distortion.
Brushless alternator with brushless pilot exciter for excellent load response. Class H insulation, easy parallelling with mains or other generators, standard 2/3 pitch stator windings avoid excessive neutral currents.

CONTROL SYSTEM

※ Start/Stop controller
※ Ampere meter
※ Voltmeter and selector switch
※ Frequency meter/Water temperature gauge/Oil pressure gauge / Hour counter / Batery voltage meter
※ Emergency stop pushbutton HGM170HC
※ Alarm System: Over speed,High Engine Temperature,Low Oil Pressure,Charge Failure
※ Protection System: Over speed,High Engine Temperature,Low Oil Pressure,Emergency Stop.And the other protection function presetting

Warning:
※ Alternator Under/Over Voltage
※ Alternator Under/Over Frequency
※ Mains Under/Over Voltage
※ Mains Under/Over Frequency
※ Under/Over Speed
※ Low Oil Pressure Pre-Alarm
※ High Engine Temp. Pre-Alarm
※ High/Low Battery Voltage
※ Over-current
※ Periodic maintenance
