1440dpi Three Dx7 Heads Epson Wide Format Printers For Fabric , Iprint Rip 3.0 Software
1440dpi Three Dx7 Heads Epson Wide Format Printers For Fabric , Iprint Rip 3.0 Software
Specifications
Place of Origin :
Changzhou,Jiangsu,China
Brand Name :
A-Starjet
Certification :
CE
Model Number :
7703
Print Head :
Three DX7 Print Head
Resolution :
1440dpi(Max)
Application :
Fabric, Wall Paper, Advertising Poster
Rip Software :
Iprint 3.0
Description

1440dpi Three Dx7 Heads Epson Wide Format Printers For Fabric , Iprint Rip 3.0 Software

Specifications:

Speed, stability,precision, all those factors do matter for high competitive signage market, we get them and offer you the A-Starjet 7703 series. The printer reaches 45sqm per hour at production mode with Three DX7 heads. Save cost of adding extra printer.

Item A- Starjet 7703
Print head Three DX7 print head
Number of nozzles 1440 nozzles per head
Color 4 Colors:Cyan,Magenta,Yellow,Black
Resolution 1440dpi(max)
Height of print head 2～5mm
Size of ink droplet 1.5～21pl
Printing width 1800mm
Speed

3pass 50sq.m per hour

4pass 38.6sq.m per hour

6pass 28.0sq.m per hour

8pass 19.0sq.m per hour
Media width 1900mm
Media take up Yes
Media feeder Option
Media payload 70kgs
Heating system

Print heater and Post heater with PID temperature control

temperature range:room temperature to 80℃
Ink

T5.5 eco-solvent ink

ST5.5 water-based dye ink

T7 reactive printing ink
Ink cartridge 8×350ML continuous ink supply, Optional bulk system
Rip software iPrint3.0
Control software Print console
Operation system MS Windows XP ﹠ Windows 7
Interface USB2.0
Power voltage AC 220～240V 50～60Hz or AC 110～120V 50～60Hz
Printing environment Temperature:20～25℃,humidity:40-60%
Printer dimension W2840×D900×H1250mm
Packing dimension W2920×D980×H700mm
Net weight 220kgs
Gross weight 300kgs

Description:

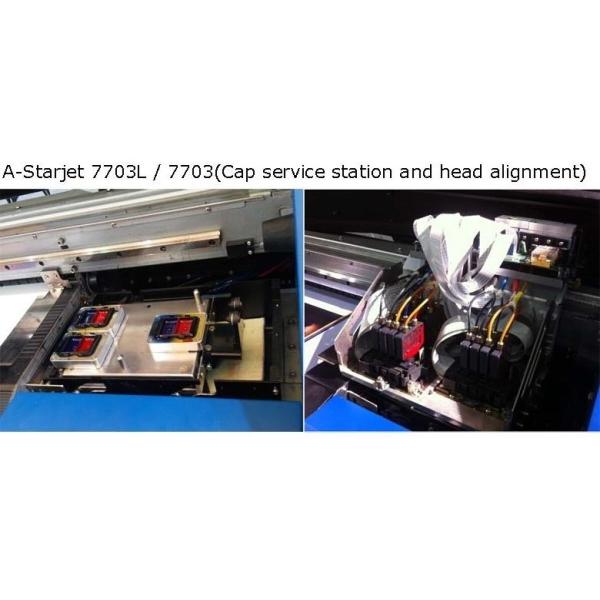

1. A-Starjet 7703/7703L (Cap serve station and head alignment)

Inheriting A-Starjet strict quality control on mechanical precision. The precision-machined service station and carriage makes it easy for head cleaning, head preserve. Its result of the printing will be stable and also prolong heads' life time.

1440dpi Three Dx7 Heads Epson Wide Format Printers For Fabric , Iprint Rip 3.0 Software

Competitive Advantage:

1. User Friendly

Free supplied 16bit IPrint Rip system, easy to use and we keep updating for our clients. 3rd party ICC can be used, provides best color rendition.

2. Three Print Head Design:

The technology of two print heads is one mature technology that we have brought out to the market in

the early stage for years. Now the product with three DX7 print heads will definitely replace the reviousprinters which use DX5 print heads.

3 pcs Epson DX7 printhead, each print head has 1440 nozzles.

Currently Epson is not encrypted for DX7, so the buyer no need to worry about the print head when he

/ she buy this kind machine.

3. Comprehensive Media Handling

The standard media handling includes the feeding & take-up system that can load up as heavy as 70kgs.The heating system and hot air drying system which can now easily print on flex banner

and diversify media.

4. 1.8m Printer also Available

For the best product coverage,the upgraded 1.8m printer with three DX7 print head (A-Starjet 7703)

model is also available to fulfill your requirements.

Mainly applications:

1. Eco-solvent Inkjet Media

Fabric: Flex Banner, Polyester Canvas, Pure Cotton Canvas and so on.

Wall Paper: Wall Paper with PVC on the surface, pure paper Wall Paper, wall paper with fabric on the

surface, wall paper with fiber on the surface.

2. PVC Type

Flex Banner, Knife Coated Substrate, Advertising Cloth, Adhesive Vinyl,

One Way Vision, Mesh, Reflective, Banner, Reflective Vinyl.
