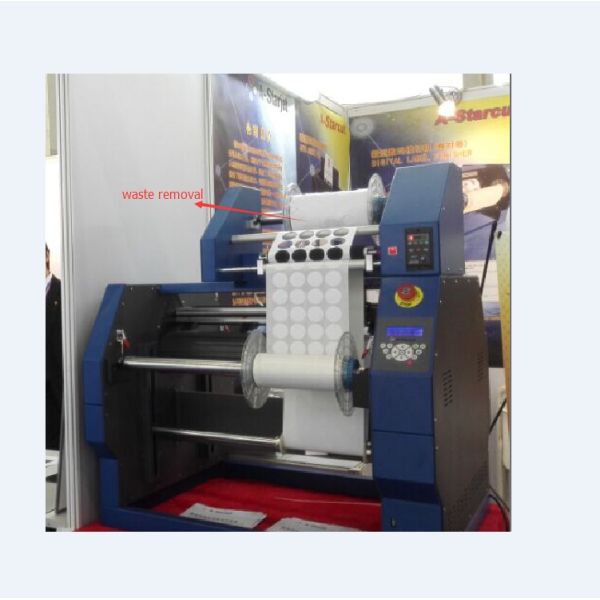

A-Starcut Roll To Roll Label Digital Cutter For Paper Sticker Cutting label Cut
A-Starcut Roll To Roll Label Digital Cutter For Paper Sticker Cutting label Cut
Specifications
Place of Origin :
Changzhou,Jiangsu,China
Brand Name :
A-Starjet
Certification :
CE
Model Number :
A-Starcut Roll To Roll Version
Cutting Method :
Roll To Roll, No Die
Cutting Speed :
10 To 810 To 800mm/s
Single Cutting Paper Area :
610mm (24 In)
Usage :
label / adhesive cutter
Description

A-Starcut Roll To Roll Label Digital Cutter For Paper Sticker Cutting label Cut

Quick Detail:

Type: digital cutter

Brand Name: A-Starjet

Place of Origin: Changzhou

Automatic Grade: Automatic

Usage: label / adhesive cutter

Certification: CE

Voltage: AC 220V

Model: A-Starcut

Weight: 56 kgs

Media size: 0.61M(MAX)

Keyword: cutter

After-sales Service: Yes

Description:

Digital Label Finisher Cut any shape with No Die

The Best Cutting Solution Ever Made

1. Digital Design

Edit in CorelDRAW, generate by A-Starcut station.

2. Digital Print

Various output device suit your need.

3. Digital Cut

Cut any shape without die. Stand along with work mode.

4. End product

Cost Analysis

A-Starcut saves one time cost than traditional die-cutting in small amount.

Single model(Small-medium amount): Save cost and time, high flexibility.

Applications:

1. Adhesive

All kinds of adhesives used in various kinds of label making and wall posters.

2. Cutting of heat transfer paper

Specifications:

Cutting method

Media-moving method; Roll- to- roll

Loadable material width

200 to 700mm( 8 to 27.5-1/2 in)

Loadable material diameter

75 to 500mm (2 TO 19-1/2 in)

Single cutting paper area

width:610mm (24 in)

Height

24998mm (984-1/8 in)

Cutting speed

10 to 810 to 800mm/s (all directions)

Rewinding speed

5 to 37.5m/min

Blade force

0 to 255g

Rewinding accuracy

± 0.5mm or less

Distance accuracy

error of less than ±0.2% of distance moved, which ever is greater

Repetition accuracy

± 0.1mm or less

Replot memory

128k bytes

Power supply

Input:AC 220V+- 10% 50/60HZ

Dimension

900W *950D * 700H mm

Weight

56kg(123lb)

Environment

Temperature:5 to 40℃, Humidity: 35 to 80% (no condensation)

Application software

A-Starjet cutstation V1 for Windows CorelDRAW 12/X3/X4/X5 for Windows

Competitive Advantage:

1. High Accuracy: The picture in the computer can be output correctly through our software to present the accurate output.

2. Accurate Location: The infra-red light can find the black lump easily so that there are no accumulated errors.

3. Easy Operation: With USB flash disk alone the machine is easy to operate, cost-saving(the cost of computer and labor) and space-saving.

4. Fewer errors: The machine is equipped with tension device and a location-limited device while feeding the paper to ensure the error to fall within 3 mm.

5. Excellent Performance in Handling Small/Medium Quantities: The machine is aimed to handle small quantity goods. Compared with printing factory, it can save you a lot of time and money .It can handle complicated shape as well.

6. No cutting die fees.

A-Starcut Roll To Roll Label Digital Cutter For Paper Sticker Cutting label Cut
