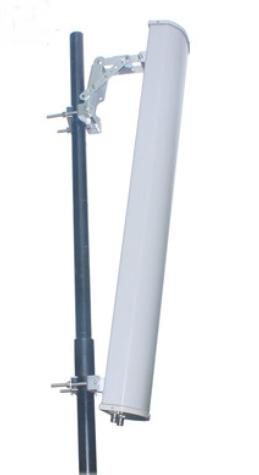

2.4GHZ WIFI 120 degree 16dBi Dual Pol sector antenna
2.4GHZ WIFI 120 degree 16dBi Dual Pol sector antenna
Specifications
Description
Frequency Range2400-2483MHz
Gain16DbI
VSWR≤1.5
3dB Beam-Width, H-PlaneV Port: 107-120°; H Port 115-125°
3dB Beam-Width, E-Plane8°
PolarizationVertical & Horizontal
Front to Back Ratio>30 dB
Port to Port Isolation>28 dB
Maximum Input Power100 Watt
Impedance50 Ω
Lightning ProtectionDC Grounded
Mechanical
Connector2 × RP-SMA Female
Antenna Dimension770x130x54mm
Weight2.4 KG
Radome MaterialUV Protected PVC
Mounting Mast DiameterØ40~Ø60 mm
Operationg Temperature-40° C to +65° C
Rated Wind Velocity216KM/h
