Injection molding machine chillers air cooled 30 ton CE ceritified chiller
Injection molding machine chillers air cooled 30 ton CE ceritified chiller
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Certification :
CE
Model Number :
MG-100WS
Description

Injection molding machine chillers air cooled 30 ton CE ceritified chiller

Professional water chiller solution provider since 2003!

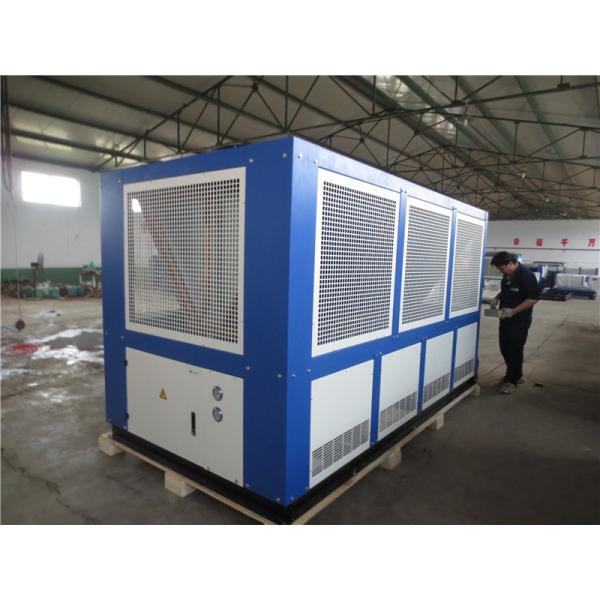

Injection molding machine chillers air cooled 30 ton CE ceritified chiller

Product Description

---Feature Of 30 tons air cooled chiller---

1. 30 tons air cooled chiller Details
  • Cooling capacity:205kw( 50ton)
  • R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if you need other environmental refrigerant R407c,134a,pls kindly let us know
  • Our air cooled chillers can be made for single system, or twin system 1tr to 145tr cooling capacity for different customers' requirements, the air cooled chiller with the air fans for cooling, they are easy to install and operate, there is no need for a cooling tower.
  • We are industrial chillers manufacturer, but we also welcome OEM.
Injection molding machine chillers air cooled 30 ton CE ceritified chiller

---Technical Details Of 30 tons air cooled chiller---

Model MG-40CS MG-80C
Cooling capacity USRT 31 58.3
Kcal/h 93740 176300
KW 109 205
Power supply 3Ph-380V-50HZ
Refrigerant Type R134a/r407c/R410a/R22
Controler Thermostatic expansion valve
Compressor Type Semi-hermetic screw
Power(kw) 38 68
Start Y
Capacity control 25%-50%-75%-100%
Evaporator Type Shell and tube
Water flow(m³/h) 26 35
Dia.of inlet/outlet(inch) DN65 DN80
Condenser Type Inner screw copper tube aluminum plate fins
Air cooling flow(m³/h) 40000 80000
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension L 3200 3300
W 1450 2300
H 2150 2400
Weight(kg) 1900 3200

---Technical Specification Of 30 tons air cooled chiller---

2.Technical Details
  • This series machines are widely used in electroplating, plastic, metal, chemical, electronics, food preservation, laser engraving, vacuum coating, ultrasonic cleaning, high frequency and other industries.
  • Adopt high-quality, new design scroll compressor, high performance, mute, power and durability.
  • Equipped with sophisticated electronic circuitry, its temperature precision controlled within ±1℃, just start inching power switch to the desired temperature can operate automatically when the system into acid, cooling water drying up, blower protection, pump protection, phase sequence protection, compressor protection, when protection, frost.

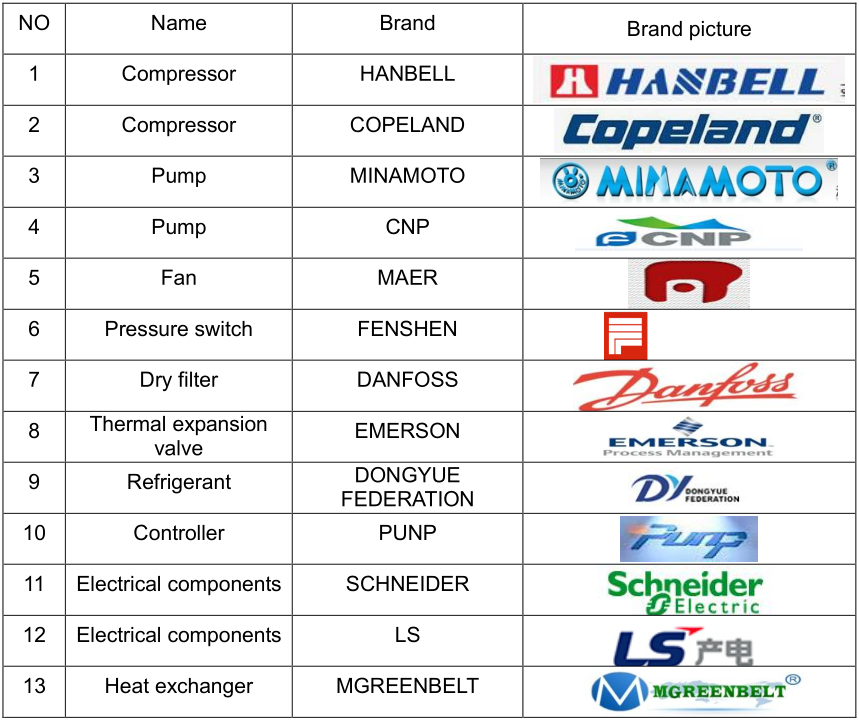

  • All of the air cooled chiller price components adopt the imported brand, all of the pasrt from original supplier directly, such as BITZER, COPELAND, DANFOSS, SCHNEIDER and etc.
Injection molding machine chillers air cooled 30 ton CE ceritified chiller

---30 tons air cooled chiller Detailed Picture---

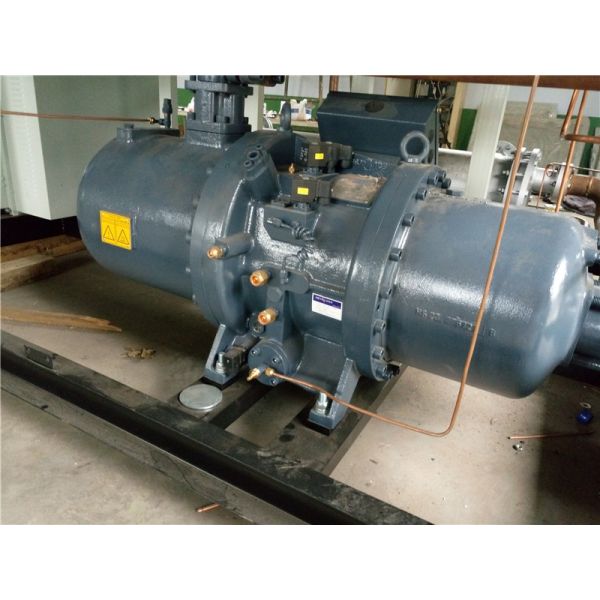

  • Chiller Compressor
Injection molding machine chillers air cooled 30 ton CE ceritified chiller

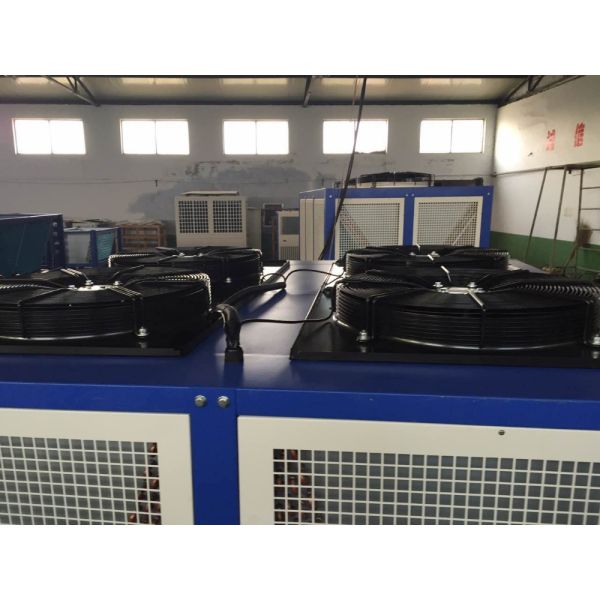

  • Chiller fan
Injection molding machine chillers air cooled 30 ton CE ceritified chiller
  • Product tags

    injection molding chiller

    ,

    chiller for injection molding machine

    ,

    injection molding chillers
