0 deg C Commercial Dairy Industriy Food Processing Milk Chillers
0 deg C Commercial Dairy Industriy Food Processing Milk Chillers
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Certification :
CE
Model Number :
MG-60WL
Cooling capacity :
161.1Kw
Description

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers

1. Description Of Our Milk Chillers:

1).Adopt the world famous semi-hermetic screw compressor, low noise, and super cooling.

2).Adopt the sensor to test the capacity control, compressor with the 25%-50%-75%-100% Piecewise start and stop, more energy saving when make the largest cooling capacity.
3).The evaporator and condenser adopt seamless welded inside screw heat exchange tubes
4).Adopt micro-computer controller, display the temperature, protect, fault code and etc to the control panel, easy operate
5).The unit design the running temperature can up to -35deg C, satisfy kinds of industry user need.
6).Adopt the most advanced industrial third generation 5 to 6 teeth asymmetrical design of double screw compressor.

2. Components Of Milk Chillers:

Compressor HANBELL, BITZER
Controller PUNP
Electrical components SCHNEIDER
Evaporator MGREENBELT
Condenser MGREENBELT
Dry filter DANFOSS
Expansion valve DANFOSS

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers0 deg C Commercial Dairy Industriy Food Processing Milk Chillers

3. Specification Of Milk Chillers:

Product Water Cooled Chiller
Model MG-60WS
Power supply 3PH-380V-50HZ
Chilled water flow(m3/h) 31
Total power consumption (kW) 42
Cooling capacity KW 179
kCal/hr 153940
Compressor
 Type Advanced semi-hermetic screw
Quantity 1
Start method Y-delta
Energy control 0-25%-50%-75%-100%( start @ 25%)
Condenser Type Shell and tube
Inlet/Outlet pipe dimension PT3"
Cooling water flow(m3/h) 31
Quantity 1
Refrigerant Type R22
Filling quantity (kg) 32
Expansion valve Type Thermostatic expansion valve
Evaporator Type Shell and tube
Quantity 1
Inlet/Outlet pipe dimension PT3"
Safety protection Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing
Machine Dimension L(mm) 2600
W(mm) 850
H(mm) 1700
Net Weight kg 1680

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers0 deg C Commercial Dairy Industriy Food Processing Milk Chillers0 deg C Commercial Dairy Industriy Food Processing Milk Chillers

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers

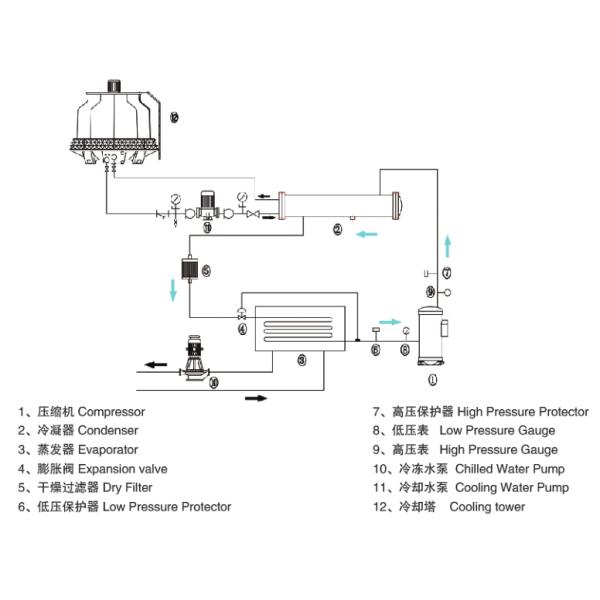

4. Schematic Diagram Of Milk Chillers:

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers

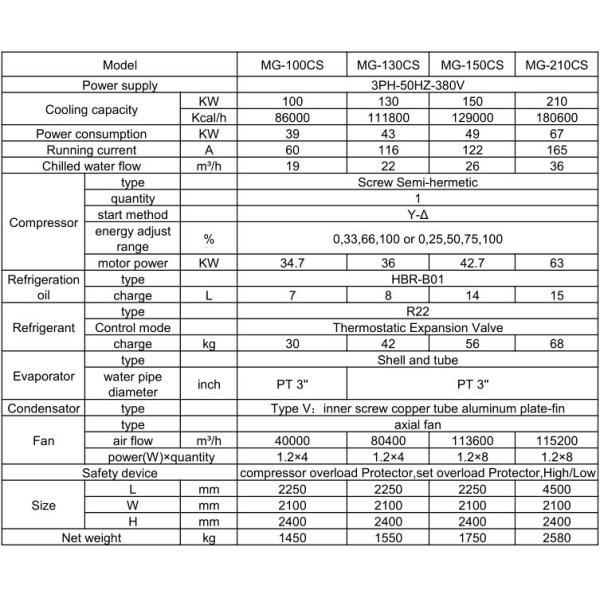

5. If this water cooled type chiller is not workable for your market, we also provide the air cooled industrial water chiller solution, different model optional:

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers
