45 Tr Mini Series Screw Industrial Air Cooled Chiller
45 Tr Mini Series Screw Industrial Air Cooled Chiller
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Certification :
CE
Model Number :
MG-60AS
Cooling Capacity :
165kw
Compressor type :
Semi-hermetic screw
Compressor power :
45kw
Power supply :
3Phase-380V/415V/440V/460V-50HZ/60HZ
Refrigerant :
R22,R407c,R134a,R410a,R404a
Description

45 Tr Mini Series Screw Industrial Air Cooled Chiller

Feature

(1)Bitzer/Germany or Hanbell/Taiwan compressor available
(2)Refrigerant optional R22,R407c,R134a,R410a
(3)Outlet chilled temperature is 0-45 degree
(4)Multi protection device designed to ensure the stable safety of the operator and prolong the life.
(5) Adopt good performance screw compressors of high reliability and high efficiency from Hanbell/Taiwan, Bitzer/Germany, etc
(6) Internal electric control parts from Schneider/France or Siemens/Germany, etc.
Technical Specification
Model MG-280CS
Power supply 3PH-50HZ-380V
Cooling capacity KW 283
Kcal/h 243400
Power consumption KW 92
Running current A 139.8
Chilled water flow m³/h 48.7
Compressor type Screw Semi-hermetic
quantity 1
start method Y-
energy adjust range % 0,33,66,100 or 0,25,50,75,100
motor power KW 82.4
Refrigeration oil type HBR-B01
charge L 16
Refrigerant type R22
Control mode Thermostatic Expansion Valve
charge kg 78
Evaporator type Shell and tube
water pipe diameter inch PT 4''
Condensator type Type V:inner screw copper tube aluminum plate-fin
Fan type axial fan
air flow m³/h 115200
power(W)×quantity 1.2×8

Note:

1.Testing working condition: inlet chilled water temperature 12 ℃ ,outlet chilled temp 7 ℃

2.Optional power supply:220v,380v,415v,440v,frequency 50/60HZ

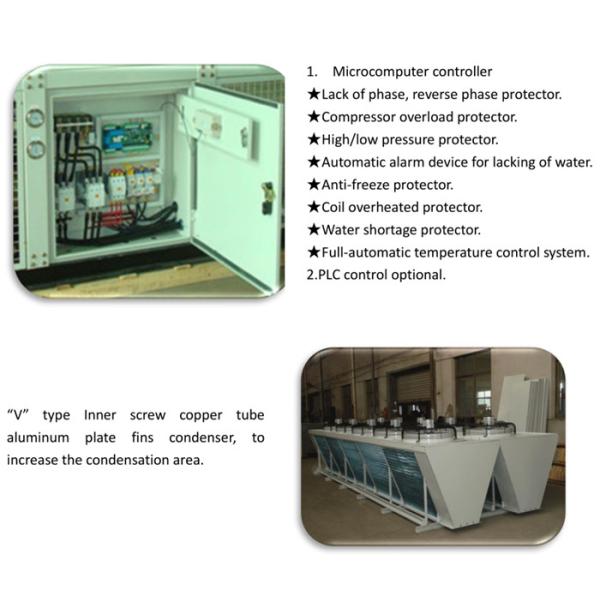

Components
45 Tr Mini Series Screw Industrial Air Cooled Chiller
45 Tr Mini Series Screw Industrial Air Cooled Chiller
45 Tr Mini Series Screw Industrial Air Cooled Chiller
45 Tr Mini Series Screw Industrial Air Cooled Chiller
45 Tr Mini Series Screw Industrial Air Cooled Chiller

Payment term:

T/T: 50% Down payment, the balance before shipment, or you also can show us if any special required.

L/C,D/P,DDU and etc.

Contact preson:Grace Zhang
Cell:0086 18615626360(calling,whatspp,viber,weichat) Email:cnmgchiller@gmail.com
Skype:mb.gracezhang

Looking forward long and good cooperation from all over the world! MGREENBELT will give you the 5% discount and good service.
