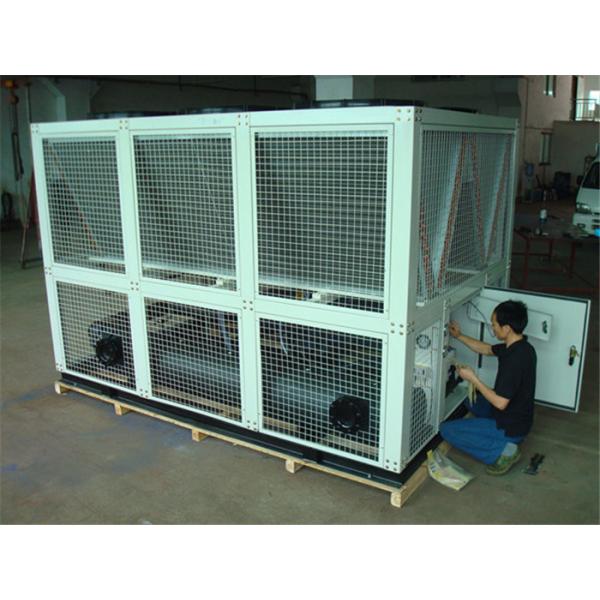

2016 New Design Industrial Air Cooeld Screw Online Water Chiller
2016 New Design Industrial Air Cooeld Screw Online Water Chiller
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Certification :
CE
Model Number :
MG-100AS
Cooling capacity :
100kw/25ton
Compressor :
Semi-hermetic screw type compressor
Refrigerant :
R407c/R134A/R22
Keywords :
Online water chiller
Water chiller website :
http://www.mgchiller.com
Description

2016 New Design Industrial Air Cooeld Screw Online Water Chiller

Why choose us?

Shandong Mgreenbelt Machinery Co., Ltd. is a leading specialized manufacturer of industrial process cooling equipment in Northern China and was founded by Mr. Zhang Gaoyuan in 2003. Mgreenbelt is a Shandong based corporation located in Dezhou, covering a total area of 34,000 square meters.

We are engaged in manufacturing, exporting and supplying Water Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China .

1. We are manufactures, we provide machine by ourselves
2. Different models with different cooling capacity to satisfy you
3. Professional technical consulants
4. Best Service, Best Quality, Best Price
2016 New Design Industrial Air Cooeld Screw Online Water Chiller
Description of industrial water chiller:
1.High efficiency condensers: copper tube coils and aluminum fins with low noise radial fans, cool the water in a short duration to reduce the power consumption
2.Water tank type evaporator made of 304 stainless steel with internal copper tube coils and external thermo-insulation layers
3.Shell and tube type evaporator also available
4.Precise microcomputer control system and LED touch screen to make the technicians monitor the chiller machine operation condition constantly
5.Especially suitable for these occasions where is short of water or the water is not that clean or the chiller machine shall move with the equipment accordingly
6.Caution: not that advisable to use air cooled water chiller where the air ventilation of the workshop is not that good because such conditions maybe influence the cooling effect
7.Faultless aftersales service: personnels from the aftersales service department can quickly respond to users requirements upon the receipt of the trouble notice
8.Economical, save the cost of auxiliary equipments: cooling tower and water pump and related pipes
9.Easy to assemble, disassemble, install and maintenance
10.Box type design, elegant in appearance
11.R22/R134a/R407 refrigerant available
12.Short lead time, timely delivery, and one year quality warranty
2016 New Design Industrial Air Cooeld Screw Online Water Chiller
2016 New Design Industrial Air Cooeld Screw Online Water Chiller
Technical specification of industrial water chiller
Model MG-280CS
Power supply 3PH-50HZ-380V
Cooling capacity KW 260
Kcal/h 887120
Power consumption KW 92
Running current A 139.8
Chilled water flow m³/h 48.7
Compressor type Screw Semi-hermetic
quantity 1
start method Y- delta
energy adjust range % 0,33,66,100 or 0,25,50,75,100
motor power KW 82.4
Refrigeration oil type HBR-B01
charge L 16
Refrigerant type R22
Control mode Thermostatic Expansion Valve
charge kg 78
Evaporator type Shell and tube
water pipe diameter inch PT 4''
Condensator type Type V:inner screw copper tube aluminum plate-fin
Fan type axial fan
air flow m³/h 115200
power(W)×quantity 1.2×8
Safety device compressor overload Protector,set overload Protector,High/Low Pressure Switch,Anti-frost Protector,Anti-phase&lack-phase Protector,flow protector
2016 New Design Industrial Air Cooeld Screw Online Water Chiller
2016 New Design Industrial Air Cooeld Screw Online Water Chiller
Package of industrial water chiller

1). Fumigation-free wooden case for each water chiller machine.

2). Chiller machine will send to Qingdao loading port if clients don't have any special requirements.

2016 New Design Industrial Air Cooeld Screw Online Water Chiller

Payment terms:

T/T: 50% Down payment, the balance before shipment, or you also can show us if any special required.

L/C,D/P,DDU and etc.

2016 New Design Industrial Air Cooeld Screw Online Water Chiller

Contact preson:Grace Zhang

Cell:0086 18615626360(calling,whatspp,viber,weichat)
Email:cnmgchiller@gmail.com
Skype:mb.gracezhang
Looking forward long and good cooperation from all over the world! MGREENBELT will give our agent price and good service.
