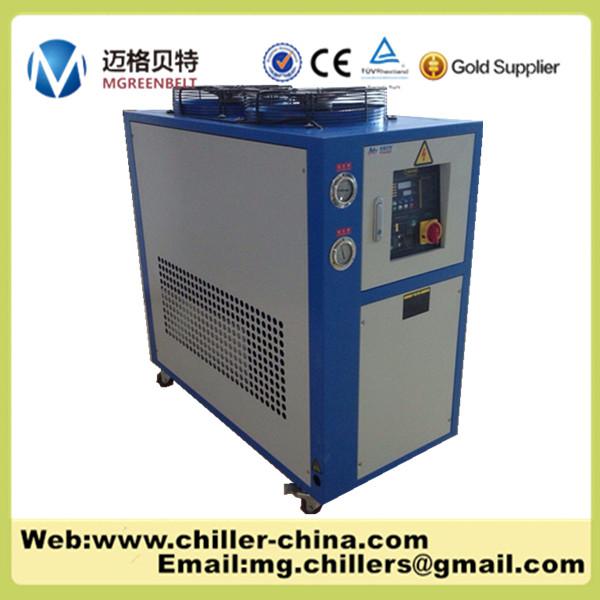

Top Sale Small Air Cooled Glycol Water Chiller for Beer
Top Sale Small Air Cooled Glycol Water Chiller for Beer
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-5CL
Certification :
CE
Description

Top Sale Small Air Cooled Glycol Water Chiller for Beer

1.Feature

  • Cooling capacity: 7.5kW
  • 14 months quality warranty
  • CE certificate
  • Refrigerant: R407c/R410a/R404a or R22
  • Voltage: 220,380V-415V,440V-460V,480V,600V
  • Single or three phase--50/60HZ
  • Chilled outlet water temperature -- -20C,15C,-10C,-5C to +35 C degree.​

​2.Technical data

Product

Beer Water Chiller

Model

MG-5CL

Power supply

3Phase-380V-50Hz( others avilable)

Chilled water flow rate (m3/h)

1.53

Total power consumption (kW)

5.3

Cooling capacity

KW

8.9kw for 50hz, 10.7kw for 60hz

kCal/hr

7654/50hz,9185/60hz

Compressor

Type

Hermetic Scroll

Quantity

1

Power

5HP

Refrigerant

Type

R22, or R407c, R404a

Expansion valve

Type

Thermostatic expansion valve

Evaporator

Type

S.S tank with coil or Shell and tube

Tank volume(L)

70

Fitting pipe diameter(mm)

DN20

Condenser

Type

Finned copper tube with low noise axial fan

Cooling air flow(m3/h)

5000

Fan motor power(kw)

0.15kw*2

Chilled water pump

Lift(m)

20

Power(kw)

0.75

Machine Dimension

L*W*H(mm)

1200*600*1100

Net weight

KG

200

Remarks:

1.The chilled water temperature of such chillers is +5~35 deg C;

2.All the chillers contain ecological refrigerant r407/r134a when shipped; 3. These chillers listed on the sheets are air cooled type, and water cooled type of the same are

available;

4. All the parts, whole machine and the tube dimensions are up to standards;

5. Nonstandard parts, machines and tube connections can be customed;6. Installation, commissioning and maintenance shall be performed by qualified service technicians.

3.Components

CompressorSanyo, Copeland, DanfossTemperature ControllerPUNP, Siemens PLC
Electrical componentsSchneiderExpansion valveEMERSON
Water pumpCNP/MINAMOTOPressure gaugeFUCO
EvaporatorMGreenbeltDry filterDANFOSS
CondenserMGreenbeltAir fanMAER

Top Sale Small Air Cooled Glycol Water Chiller for Beer

Top Sale Small Air Cooled Glycol Water Chiller for Beer

Top Sale Small Air Cooled Glycol Water Chiller for Beer

Top Sale Small Air Cooled Glycol Water Chiller for Beer

Top Sale Small Air Cooled Glycol Water Chiller for Beer

Top Sale Small Air Cooled Glycol Water Chiller for Beer

Package and shipping

  • Package of water chiller: Standard export wooden case
  • Shipping by LCL, if your quantity is large we will arrange FCL.
