100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt
100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-100WS
Certification :
CE
Description

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

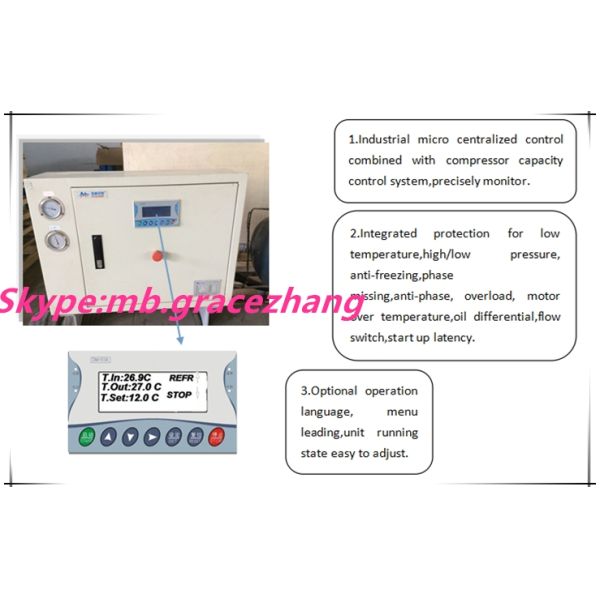

Full protection systems installed

1). Lack of phase, reverse phase protector.

2). Compressor overload protector.

3). High/low pressure protector.

4). Automatic alarm device for lacking of water.

5). Anti-freeze protector.

6). Coil verheated protector.

7). Water shortage protector.

8). Full-automatic temperature control system.

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

Main feature of water cooling chiller

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

Parameter data

ProductScrew Water cooled chiller
ModelMG-100WS
Power supply3PH-220V380V/415V/460-50HZ/60HZ
Chilled water flow(m3/h)55
Total power consumption (kW)64.8
Cooling capacityKW310
kCal/hr267030
CompressorTypeSemi-hermetic screw
Quantity1
Start methodY
Energy control0-25%-50%-75%-100%( start @ 25%)
CondenserTypeShell and tube
Cooling water flow(m3/h)71
Quantity1
RefrigerantTypeR22/R407c/R134a
Expansion valveTypeThermostatic expansion valve
EvaporatorTypeShell and tube
Inlet/Outlet pipe dimensionPT4"
Safety protectionCompressor over temperature,over current,high and low pressure,Phase sequence,phase-missing
DimensionL*W*H(mm)2800*800*1800mm
Machine weightkg1930

Product photo show

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

Package of chiller

100HP 85Tr Screw Water Cooled Water Cooling Chiller From Mgreenbelt

If any further questions or inquiry please contact with us:

Ms Grace Zhang

Ph:+86 18615626360

Skype:mb.gracezhang

Email:mg.chillers at gmail.com
