10Tr Low Temperature Glycol Chiller For Brewery
10Tr Low Temperature Glycol Chiller For Brewery
10Tr Low Temperature Glycol Chiller For Brewery
10Tr Low Temperature Glycol Chiller For Brewery
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-20CL
Certification :
CE
Description

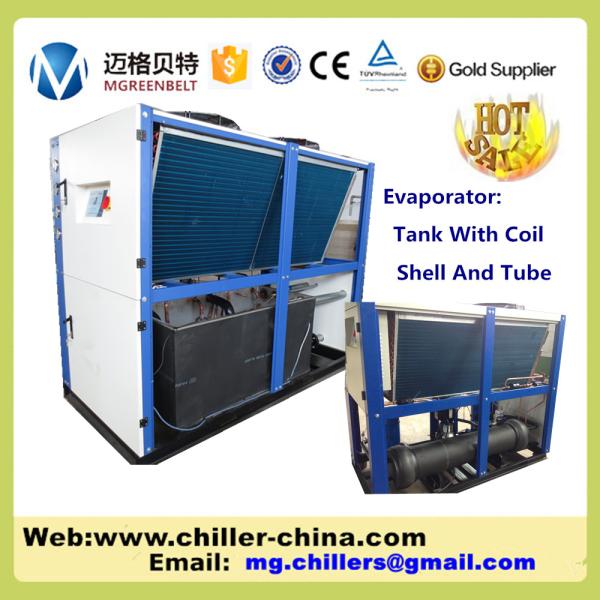

10Tr Low Temperature Glycol Chiller For Brewery

-5deg C glycol water chiller for brewery

Internal compressor brand is USA Copeland.

Copland vortex compressor, more durable, refrigeration effect is more stable

Medium: Environmental protection refrigerants R22,R407c,R134a, R404A..

Using the latest evaporator condenser integrated, import compressor.

Advantage:

Adopt plate heat exchanger cooling technology, cooling effect faster than copper coil type 40%. Reduce power consumption more than by 20%.

10Tr Low Temperature Glycol Chiller For Brewery

Parameter data

Model MG-3CL MG-4CL MG-5CL MG-8CL MG-10CL MG-12CL MG-15CL MG-20CL MG-25CL MG-30CL
Nominal cooling capacity 50HZ Btu/h 19039 20915 30196 45379 60563 68751 76121 121126 137503 152243
KW 5.58 6.13 8.85 13.3 17.75 20.15 22.31 35.5 40.3 44.62
Kcal/h 4798 5272 7611 11438 15265 17329 19186 30530 34658 38373
Power supply 380V/3PHASE/50HZ
Compressor power KW 2.25 2.58 3.69 5.6 7.2 8.08 9.06 14.4 16.16 18.12
Type of control Capillary Thermostatic expansion valve
Refrigerant R22,R407c,R410a,R134a
Condenser Type Finned copper tube with low noise axial fan
Evaporator Type Shell and tube or Tank with coil
Volume L 50 70 70 90 120 200 270 350 350 420
Chilled water flow M3/h 0.95 1.05 1.51 2.27 3 3.45 3.82 6 6.9 7.6
Pipe diameter DN 25 25 25 25 40 40 50 50 65 65
Water pump KW 0.5 0.5 0.5 1 1 1 2 2 3 3
Machine size L(mm) 930 1140 1140 1310 1650 1650 1800 2000 2000 2200
W(mm) 520 560 560 720 750 750 990 1130 1130 1130
H(mm) 970 1040 1040 1270 1340 1340 1690 1720 1925 2025
Net weight kg 120 150 150 250 320 350 680 720 1000 1200

Remarks:

1). Different original compressor for options: Sanyo, Copeland, Danfoss

2). Tailor made power supply: 3phase,208-240v,380-415v,440v-460v,50hz or 60hz

3). Popular refrigerants allowed in your country, R407c,R410a,R134a,R404a

Components

Name

Brand

Compressor

COPELAND/SANYO

Electric components

SCHNEIDER

Pump

MINAMOTO

Evaporator

SHETA

Condenser

SHETA

Pressure control table

YOHA

Oil type pressure gauge

HONGSEN

Temperature controller

PUNP

Expansion valve

EMERSON/ALCO

Dry filter

EMERSON/ALCO

Fan coil

MAER

10Tr Low Temperature Glycol Chiller For Brewery

10Tr Low Temperature Glycol Chiller For Brewery

10Tr Low Temperature Glycol Chiller For Brewery

10Tr Low Temperature Glycol Chiller For Brewery

10Tr Low Temperature Glycol Chiller For Brewery

10Tr Low Temperature Glycol Chiller For Brewery

10Tr Low Temperature Glycol Chiller For Brewery

If any further questions or inquiry please contact with us:

Ms Grace Zhang

Ph:+8618615626360

Skype:mb.gracezhang

Email:mg.chillers at gmail.com
