Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Industrial 3HP MG-3C Air Cooled Package Small Water Chiller
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-3C
Certification :
CE
Small chiller :
Small Water Chiller
Description

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

1.Specification

Mini Air cooled package chiller

Cooling capacity:8.5kw

Power supply:3Phase-220V/380V415V/440V/460-50HZ-60HZ

Refrigerantion: R407c,R22

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

2.Data

Model

Unit

MG-3C

Nominal cooling capacity

kcal/h

7310

KW

8.5

Input power

KW

3.53

Set temp. range

3ºC~35ºC

Power supply

1PH-220V-50HZ

Refrigerant

Type

R22/R407

Type of control

Capillary

Compressor

Type

Hermetic scroll

Power(kw)

2.95

Condenser

Type

Finned copper tube+low noise outer rotor fan

Cooling air flow(m3/h)

3000

Evaporator

Type

Tank with coil/shell and tube

Chilled fluid flow(m3/h)

1.46

Volume(L)

20

Inlet and outlet pipe diameter

1"

Pump

Power(kw)

0.37

Lift(m)

20

Dimension

Length(mm)

1200

Wide(mm)

600

High(mm)

1100

Weight

kg

150

Safety protection

Compressor over temperature, over current, high and low pressure, Phase sequence, phase-missing

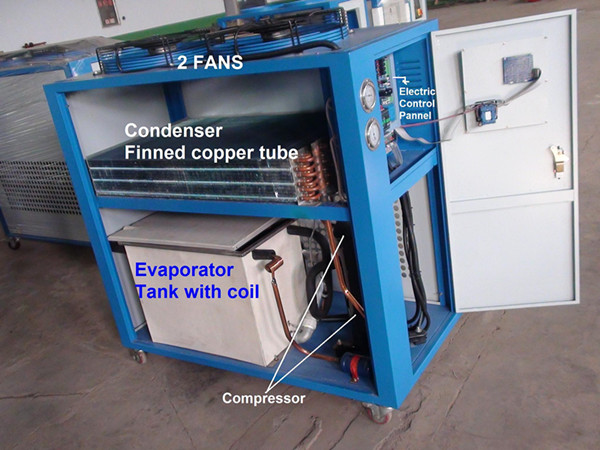

3.Small water chiller details below:

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

4.Package-Standard export wooden case

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

5.Certificate of small water chiller

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

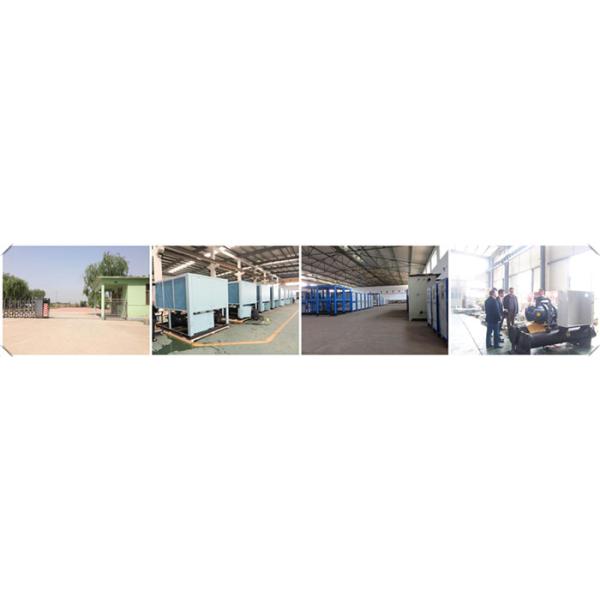

6.Welcome to our factory

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

7.Dear customer,

If this model is not suitable for your project? As a professional water chiller manufacture and solution provider, we can provide different chiller series based on your requirements, any customize and OEM accept, please check our home.

Industrial 3HP MG-3C Air Cooled Package Small Water Chiller

If any further questions or inquiry please contact with us:

Ms Grace Zhang

Ph:+8618615626360

Skype:mb.gracezhang

Email:mg.chillers at gmail.com
