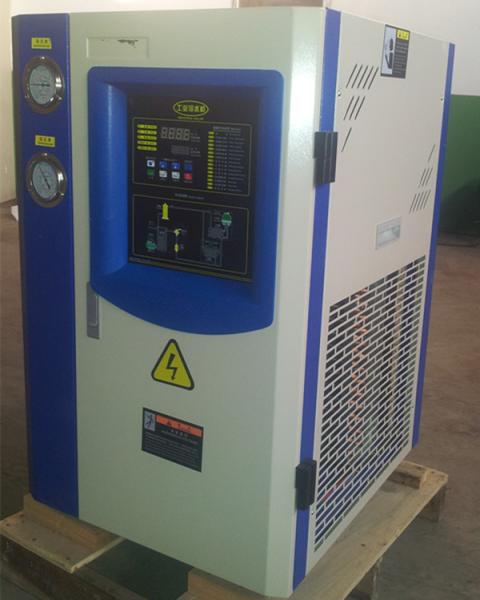

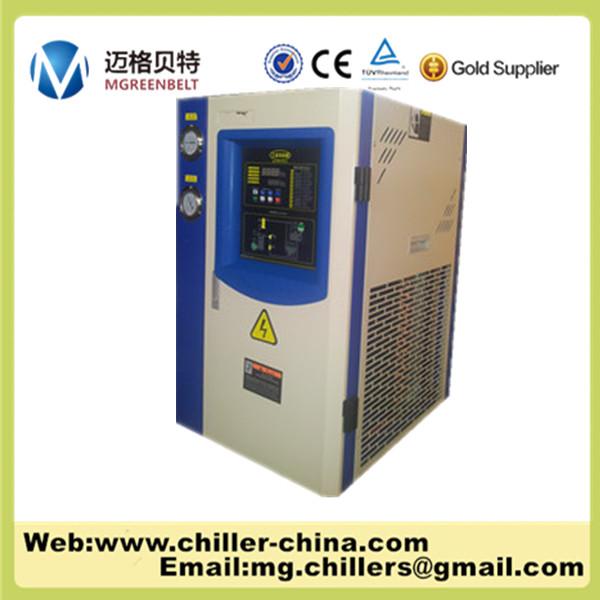

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-1C
Certification :
CE
mini chiller :
Mini package water chiller
Description

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

1.Specification

Mini Air cooled package chiller

Cooling capacity:2.85kw

Power supply:1Phase-220V-50HZ-60HZ

Refrigerantion: R410a,R22

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

2.Data

Model

Unit

MG-1C

Nominal cooling capacity

kcal/h

2322

KW

2.85

Input power

KW

1.42

Set temp. range

3ºC~35ºC

Power supply

1PH-220V-50HZ

Refrigerant

Type

R22/R410a

Type of control

Capillary

Compressor

Type

Hermetic scroll

Power(kw)

0.88

Condenser

Type

Finned copper tube+low noise outer rotor fan

Cooling air flow(m3/h)

1000

Evaporator

Type

Tank with coil/shell and tube

Chilled fluid flow(m3/h)

0.46

Volume(L)

20

Inlet and outlet pipe diameter

1"

Pump

Power(kw)

0.37

Lift(m)

20

Dimension

Length(mm)

500

Wide(mm)

500

High(mm)

720

Weight

kg

70

Safety protection

Compressor over temperature, over current, high and low pressure, Phase sequence, phase-missing

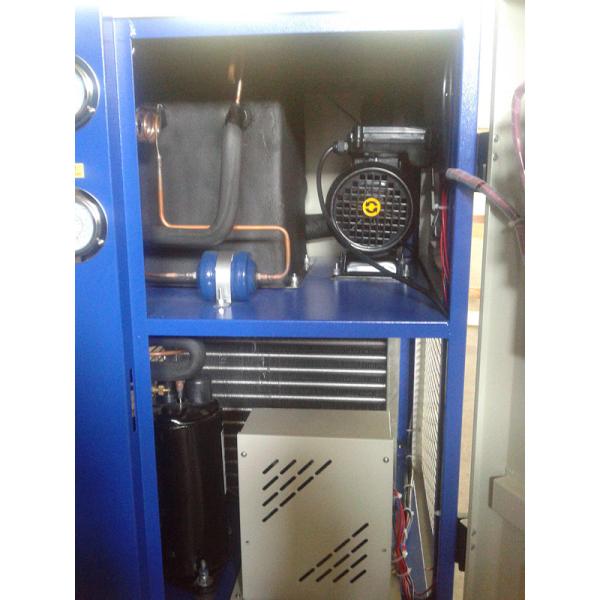

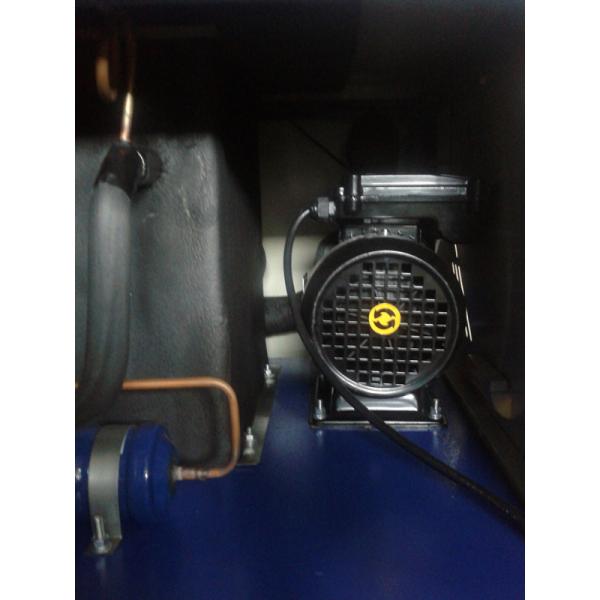

3.Mini chiller detailsbelow:

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

4.Package-Standard export wooden case

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

5.Certificate of mini water chiller

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

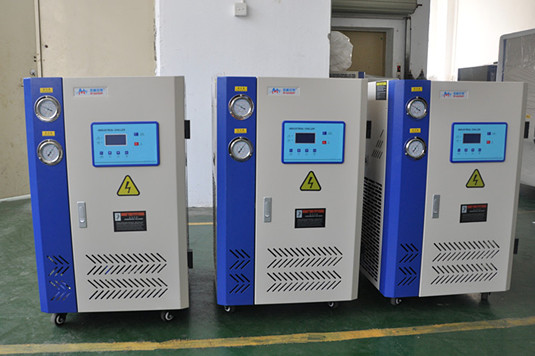

6.Welcome to our factory

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

7.Dear customer,

If this model is not suitable for your project? As a professional water chiller manufacture and solution provider, we can provide different chiller series based on your requirements, any customize and OEM accept, please check our home.

Industrial Mini Chiller 1HP MG-1C Package Air Cooled Water Chiller

If any further questions or inquiry please contact with us:

Ms Grace Zhang

Ph:+8618615626360

Skype:mb.gracezhang

Email:mg.chillers at gmail.com
