5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-5C
Certification :
CE
Keywords :
Small Water Chiller Units
Description

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

Loading port:Qingdao,Shenzhen,Guangzhou,Ningbo,Shanghai

Delivery time: 15 days

Warranty: 14 months start form the date of B/L

MOQ:1 Unit

Certificate: CE approved

Please contact me if your application is cooling system,we have various water chillers from 2.85kw to 2015.6kw.

Sale Director:Grace Zhang

Email: mg.chillers at gmail.com

Skype:mb.gracezhang

Main features description

1) Different refrigerant available like R22,R407c,R134a,R410a

2) Voltage/phase/frequency optional 1/3 phase-220/380/415/440/460V-50/60Hz

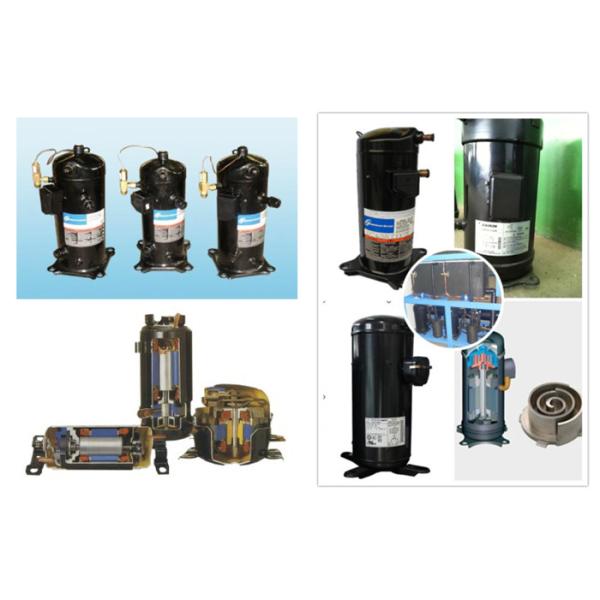

3)Compressor

*MGreenbelt water chiller adopt Copeland/USA,Sanyo/Japan,Bitzer/Germany,Hanbell/Taiwan,Normally Copeland and sanyo scroll compressor is for small cooling capacity chillers,Hanbell and Bitzer screw compressor is for large capacity chillers.

4)The Evaporator:You can choose thank with coil tube type or shell and tube type. Shell and tube type evaporator is more efficient than coil tube type. If you choose coil tube type evaporator, a water tank should be equipped with. The chiller will need a water supplement tank according to some situations too. In consideration of corrosive liquid, the evaporator can be titanium coil tube type or stainless plate type.

5)multi protection devices bult in

Compressor overlod protect, High/low pressure protect,coil overheat protect,phase missing and reverse protect,water shortage protect,etc.

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

Technical Specification

Model

Unit

MG-5C

Nominal cooling capacity

kcal/h

11266

KW

13.1

Input power

KW

5.61

Power supply

3PH-380V-50HZ (220V/415V/440V/460V/600V-50Hz/60Hz)

Refrigerant

Type

R22/R134a/407c

Type of control

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

Power(kw)

4.54

Condenser

Type

Finned copper tube+low noise outer rotor fan

Cooling air flow

5000(m3/h)

Evaporator

Type

Tank with coil/shell and tube

Chilled fluid flow

2.25 (m3/h)

Volume(L)

70

Inlet and outlet pipe diameter(inch)

2"

Pump

Power(kw)

0.75

Lift(m)

20

Dimension

LxWxH(mm)

1300*650*1200

Weight

kg

200

Remarks

based on condensing temp 40C,inlet/outlet temp 12C/7C.

Machine details

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

Package of small water chiller

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

About us

We can not do everything for everyone,but we are always focus on the field that we do well,provide solutions to our requests,and also design the custom cooling systems.

MGreenbelt is a leading specialized manufacturer of process cooling equipment in Northern China and was founded in 2003. Mgreenbeltis a Shandong based corporation located in Dezhou, covering a total area of 34,000 square meters .

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

5HP MG-5C Scroll Type Air Cooled Small Water Chiller Units

If you have any further details want to know, you also can contact with us directly:

Contact preson:Grace Zhang

Cell:0086 18615626360(calling, whatspp,viber,weichat)

Email:mg.chillers at gmail.com

Skype:mb.gracezhang

Looking forward long and good cooperation from all over the world! MGREENBELT will give you the 5% discount and good service.
