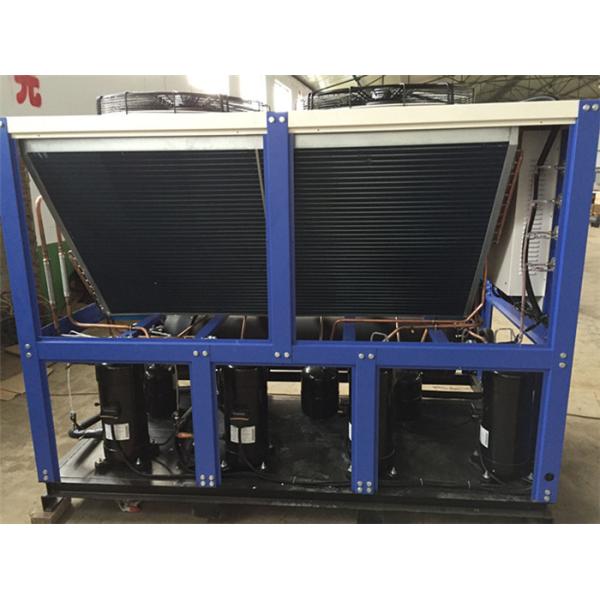

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ
40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ
40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ
40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-50C(D)
Certification :
CE
water cooling chiller :
Air Cooled Water Cooling Chiller
Description

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ

Main Water cooling chiller series for your optional:

1.Air cooled water chiller,water cooled water chiller, glycol chiller, heat pump and etc.

2.Outlet temperature can be:+5deg C to +35 deg C control, -5deg C,-10dg C,-15deg C,-20deg C and etc up to -80deg C.

3.Cooling capacity: 1Ton-500Ton optional.

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ

Specification of water cooling chiller

ModelUnitMG-50C(D)
Nominal cooling capacitykcal/h 50HZ/60HZ118852 142622
KW 50HZ/60HZ138.2 165.84
Set temp. range5ºC~50ºC
Input powerKW49.65
Power supply3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ)
RefrigerantTypeR22/R134a/407c
Type of controlThermostatic expansion valve
CompressorTypeHermetic scroll
Power(kw)10.6*4
CondenserTypeFinned copper tube+low noise outer rotor fan
Cooling air flow(m3/h)50000
EvaporatortypeTank with coil/shell and tube
Chilled fluid flow(m3/h)23.69
Volume(L)580
Inlet and outlet pipe diameter(inch)DN80
PumpPower(kw)4
Lift(m)20
DimensionLength(mm)2000
Wide(mm)2000
High(mm)1750
Weightkg1600
Safety protectionCompressor over temperature,over current,high and low pressure,Phase sequence,phase-missing

Remarks:

1.The chilled water temperature of such chillers is +5~35 deg C,-5C,-10C and etc;

2.All the chillers contain ecological refrigerant r407/r134a when shipped;3. These chillers listed on the sheets are air cooled type, and water cooled type of the same are

available;

4. All the parts, whole machine and the tube dimensions are up to standards;

5. Nonstandard parts, machines and tube connections can be customed;6. Installation, commissioning and maintenance shallbe performed by qualified service technicians.

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ

Packge of water cooling chiller

Package adopt the most economic way, and do the best to saving cost for customer.

If the machine is smaller not enough for one 20" container, we will use the PE material, then packaged withsmoked-freewooden case for export.

If the water chiller is large, then we will use one 20" container.

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ

Service of water cooling chiller

1.14 Months warranty for whole machine.

2. Any problem will feedback within 24 hours.

3.Within warranty, any parts will from us and also all shipping charge if any quality problem; if the machine have 3 times big quality problem, customer can send back it and change a new one, we will responsible the shipping.

4.Outlet of warranty, we will keep support, any parts from us with agent price.

Payment terms

1). 30%T/T in advance, 70% should be paid before shippment is our regular payment terms.

2). D/P, L/C is also acceptable for discussion.

3). Per your secial requests are also welcome for communicating.

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ

Contact preson:Grace Zhang

Cell:0086018615626360(calling,whatspp,viber,weichat)

Email:mg.chillers at gmail.com

Skype:mb.gracezhang

Looking forward long and good cooperation from all over the world! MGREENBELT will give you the 5% discount and good service.

40Ton Industrial Air Cooled Water Cooling Chiller 50HZ/60HZ
