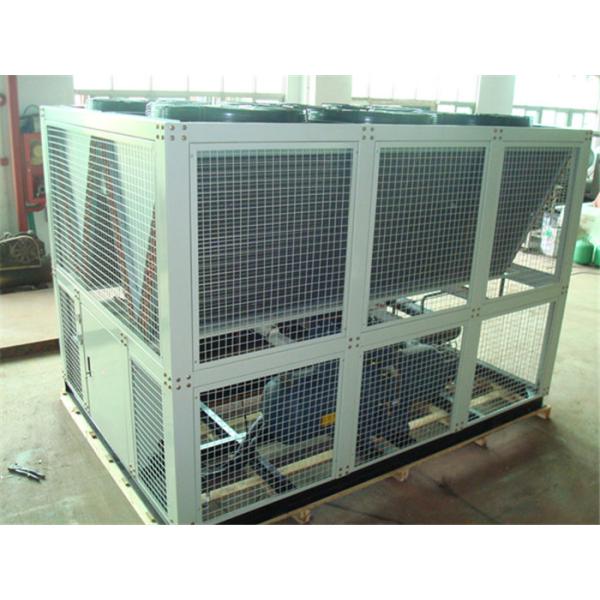

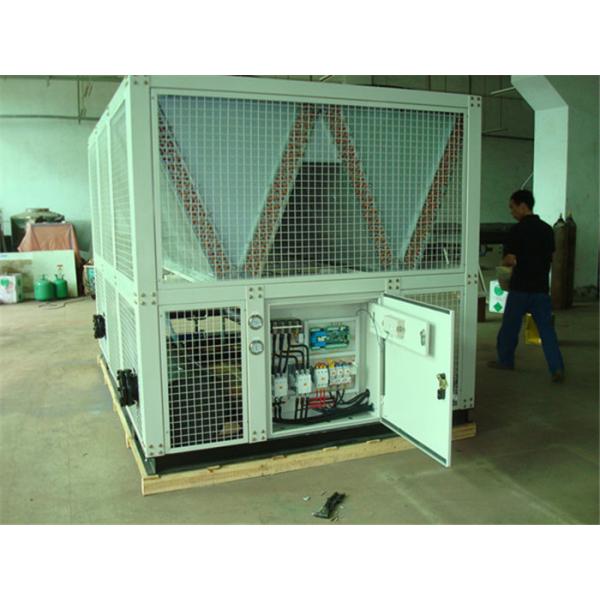

Economical Industrial Air Cooled Screw Water Chiller for Injection Industry
Economical Industrial Air Cooled Screw Water Chiller for Injection Industry
Specifications
Place of Origin :
China
Brand Name :
MGREENBELT
Model Number :
MG-60AS
Certification :
CE
Description

Economical Industrial Air Cooled Screw Water Chiller for Injection Industry

Feature

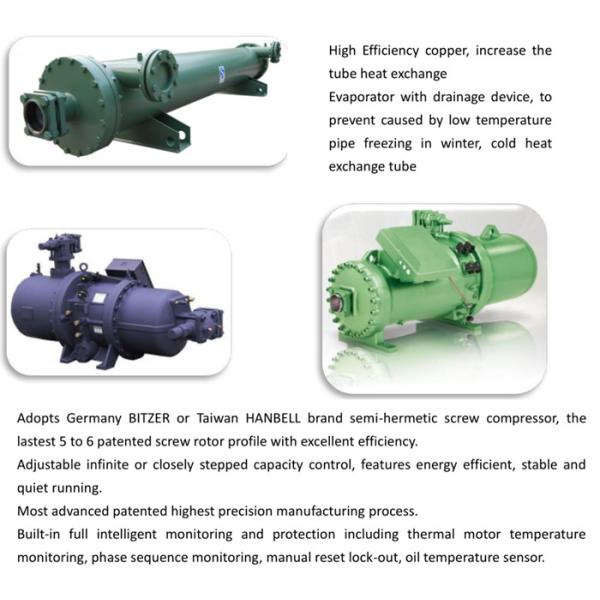

1.The choice of imports of semi-closed original double-screw compressor, reciprocating compressor, compared with the traditional, high efficiency, quiet operation, simple operation and long life.
2.Using the world famous brand refrigeration parts, to ensure the quality and stable unit.
3.Evaporator,condenser threads are using the latest high efficiency and ensure a good cooling unit performance.
4.Independent of the cooling loop, separate maintenance and repair without affecting the machine’s use.
5.The unit uses micro-computer PLC control, energy control system with the compressor section can be timely and accurate cooling capacity control mechanism and the cooling load matching, to ensure the most efficient plant operation, lowest energy consumption and achieve energy-saving and reliable operation.
6.Able to monitor the setting of actual temp, and display temp, trend in hours or daily.

Economical Industrial Air Cooled Screw Water Chiller for Injection IndustryEconomical Industrial Air Cooled Screw Water Chiller for Injection IndustryEconomical Industrial Air Cooled Screw Water Chiller for Injection Industry

Model

Unit

MG-60AS

Nominal cooling capacity

kcal/h

129000

KW

150

Input power

KW

49

Set temp. range

3ºC~35ºC

Power supply

3PH-380V-50HZ

Refrigerant

Type

R22/R134a/407c

Type of control

Thermostatic expansion valve

Compressor

Type

Semi Hermetic screw

Power(kw)

45

Condenser

Type

Finned copper tube+low noise outer rotor fan

Cooling air flow(m3/h)

60000

Evaporator

Type

Tank with coil/shell and tube

Chilled fluid flow(m3/h)

26

Inlet and outlet pipe diameter

PT3"

Dimension

Length(mm)

2200

Wide(mm)

2100

High(mm)

2400

Weight

kg

1950

Safety protection

Compressor over temperature, over current, high and low pressure, Phase sequence, phase-missing

Economical Industrial Air Cooled Screw Water Chiller for Injection IndustryEconomical Industrial Air Cooled Screw Water Chiller for Injection IndustryFunction

The power of screw chillers with vortex type is opposite bigger, than the central air conditioning system, or a large industrial refrigeration applications. Mgreenbelt series screw chillers applicable for cooling to reduce products molding cycle, also they are available in the cooling of equipment in order to maintain normal temperature. Besides, they are suitable for other industries with the need of cooling.

Economical Industrial Air Cooled Screw Water Chiller for Injection IndustryPackage&shipping

Economical Industrial Air Cooled Screw Water Chiller for Injection IndustryWarranty

Economical Industrial Air Cooled Screw Water Chiller for Injection Industry

If you are interested in our water chiller for plastic? please inform us your right working requirements, cooling capacity? power supply? temperature requirements.

Then the accurate offer will be sent to your email within 12 hours.
