NEMA43 100BLF3A110-483 48VDC 3000RPM 3N.M 940W Brushless DC Motor
NEMA43 100BLF3A110-483 48VDC 3000RPM 3N.M 940W Brushless DC Motor
Specifications
Place of Origin :
Changzhou
Brand Name :
Changyi
Certification :
GSG is9000
Model Number :
110BLF3A110-483
Voltage :
48v
Rated speed :
3000rpm
Rated torque :
3N.m
Power :
940w
Current :
26.1A
Weight :
4.5kg
Length :
138mm
Description

Brushless DC Motor NEMA43

110BLF3A110-483

Specification:

MODEL

110BLF3A110-483

Voltage (VDC)

48

Rated speed(rpm)

3000

Rated torque(N.m)

3

Rated current(A)

26.1

Power(W)

940

Peak torque(N.m)

9

Torque constant(N.m/A)

0.115

Length(mm)

138

Weight(kg)

4.5

Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gear box.

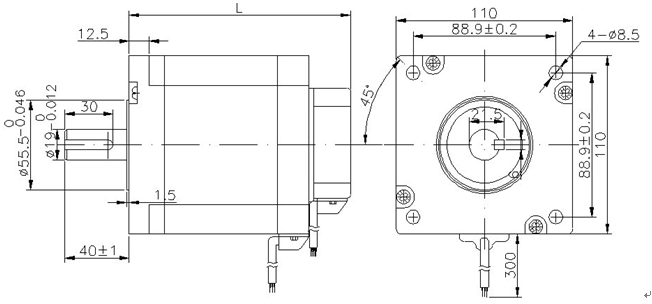

Figure:

NEMA43 100BLF3A110-483 48VDC 3000RPM 3N.M 940W Brushless DC Motor

Wiring Diagram:

NEMA43 100BLF3A110-483 48VDC 3000RPM 3N.M 940W Brushless DC Motor
