80BLF3A140-3103 310DC 3000RPM 1.6N.M 500W high voltage Brushless DC Motor
80BLF3A140-3103 310DC 3000RPM 1.6N.M 500W high voltage Brushless DC Motor
Specifications
Place of Origin :
Changzhou
Brand Name :
Changyi
Certification :
GSG is9000
Model Number :
80BLF3A140-3103
Voltage :
310v
Rated speed :
3000rpm
Rated torque :
1.6N.m
Power :
500w
Current :
2.2A
Weight :
3.6kg
Length :
163mm
Description

Brushless DC Motor

80BLF3A140-3103

Specification:

MODEL

80BLF3A140-3103

Voltage (VDC)

310

Rated speed(rpm)

3000

Rated torque(N.m)

1.6

Rated current(A)

2.2

Power(W)

500

Peak torque(N.m)

4.8

Torque constant(N.m/A)

0.75

Length(mm)

163

Weight(kg)

3.6

Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gear box.

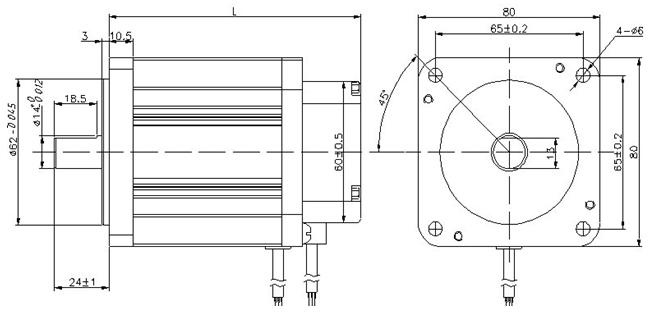

Figure:

80BLF3A140-3103 310DC 3000RPM 1.6N.M 500W high voltage Brushless DC Motor

Wiring Diagram:

80BLF3A140-3103 310DC 3000RPM 1.6N.M 500W high voltage Brushless DC Motor
