NEMA17 42BLF3A90-243 24V 3000RPM 62W 0.2N.M Brushless DC Motor
NEMA17 42BLF3A90-243 24V 3000RPM 62W 0.2N.M Brushless DC Motor
Specifications
Place of Origin :
Changzhou
Brand Name :
Changyi
Certification :
GSG is9000
Model Number :
42BLF3A90-243
Voltage :
24v
Rated speed :
3000rpm
Rated torque :
0.3N.m
Power :
94w
Length :
91mm
Weight :
0.65kg
Description

Brushless DC Motor

(NEMA17)

Specifications:

42BLF3A90-243

MODEL

42BLF3A90-243

Voltage (VDC)

24

Rated speed(rpm)

3000

Rated torque(N.m)

0.3

Rated current(A)

5.2

Power(W)

94

Peak torque(N.m)

0.9

Torque constant(N.m/A)

0.056

Length(mm)

91

Weight(kg)

0.65

Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gear box.

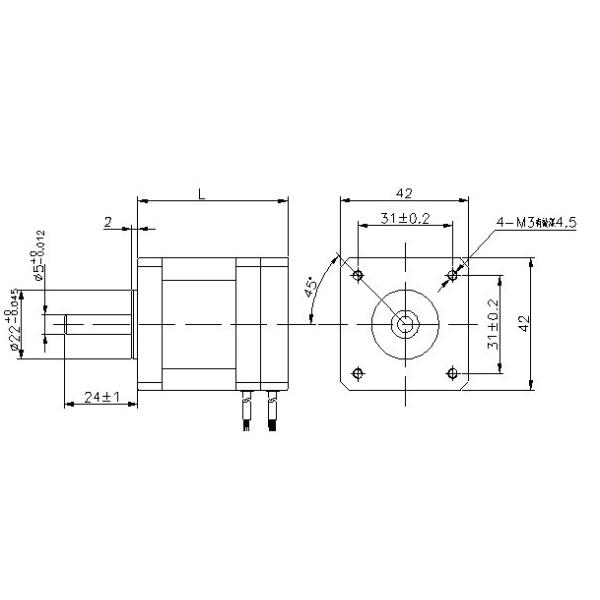

Figure:

NEMA17 42BLF3A90-243 24V 3000RPM 62W 0.2N.M Brushless DC Motor

Widing Diagram:

NEMA17 42BLF3A90-243 24V 3000RPM 62W 0.2N.M Brushless DC Motor
