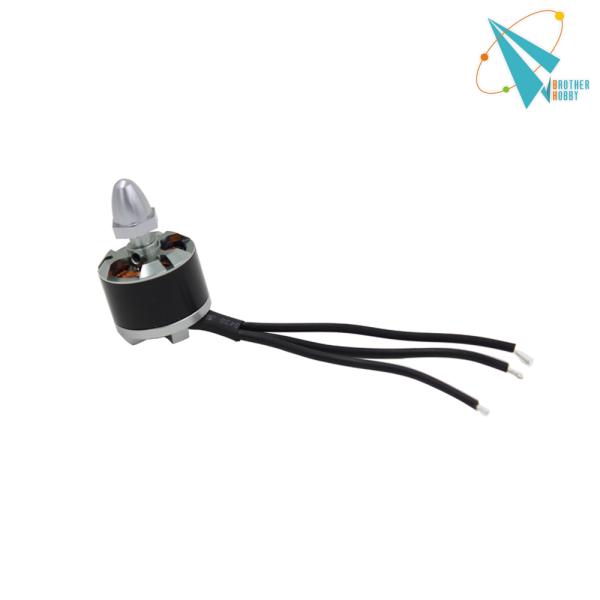

Small Electric High rmp multicopter outurnner brushless DC Motor 2812 980kv
Small Electric High rmp multicopter outurnner brushless DC Motor 2812 980kv
Specifications
Place of Origin :
Shenzhen
Brand Name :
Brotherhobby
Model Number :
2812
Certification :
CE ROHS
Style :
Radio Control Toy
Power :
battery
KV :
980
Item :
high power brushless dc
No.of Cells( Lipo) :
3s
Stator Length :
12mm
Stator Diameter :
22mm
Shaft Diameter :
3mm
Material :
metal
Type :
Multicopter
Description

Small Electric High rmp multicopterouturnner brushless DC Motor2812 980kv

Design Feature:

1. Long life of Japan NMB ball bearings.

2. Efficient Japanese Kawasaki stator steel.
3. R are earth magnets stable up to 180°.
4. Anaerobic pure copper wires.
5. CNC machining aluminum alloy shell.
6. The Silicone wire leads.
7. The balance of the patent technology.
8. The Unique connection method.

2812high power rc brushless dc

Technical Datas
KV980KVIdle Current @ 10.0V0.8A
Configu-ration12N14PNo.of Cells( Lipo)3S
Stator Diameter22mmMax continuousCurrent (A) 60S16A
Stator Length12mmMax continuous Power (W) 60S200w
Shaft DiameterΦ3mmMax efficiency>83%
Motor Dimension( DiaxL)28x25mmInteral resistance20mΩ
Net Weight( g )56Recom. Speedcontroler30A
Tested with 30A ESC
PropVolts (V)Amps (A)Watts (W)Thrust (g)Thrust (oz)Efficienc(g/W)Efficienc(oz/W)
8x6(APC)50%11.15.358.8345015.877.650.27
8x6(APC)60%11.17.077.755019.407.080.25
8x6(APC)70%11.111.4126.5475026.465.930.21
8x6(APC)75%11.115.0166.585029.985.110.18
8x6(APC)100%11.116.0177.693032.805.240.18

Small Electric High rmp multicopter outurnner brushless DC Motor 2812 980kvSmall Electric High rmp multicopter outurnner brushless DC Motor 2812 980kvSmall Electric High rmp multicopter outurnner brushless DC Motor 2812 980kvSmall Electric High rmp multicopter outurnner brushless DC Motor 2812 980kvSmall Electric High rmp multicopter outurnner brushless DC Motor 2812 980kv

Packaging Detail:

Small Electric High rmp multicopter outurnner brushless DC Motor 2812 980kv
