Product Features
1. The machine use international advanced cutting structure, adopted soft knife joint forms, realize the step speed change, final products can cut into the required length and not less burr of products.
2. The design is novel, unique, simple structure, easy install and disassembly, easy to operate.
3. The screw and screw wear use high temperature alloy steel material, after heat treatment forming, has advantages of abrasion resistance and long life.
4. With distinctive turbocharged punching device, ensure the forage yield and quality. And to improve feed puffing rate the machine equipped with electric heating device.
5. The main motor adopts high-quality Y series three-phase motor, ensure the power is strong.
6. The machine has speed adjust feeding device, it more convenient to operate and feeding evenly, to prevent machine quick stoppage.
7. Discharging template change simple, only need change different diameter template when need different size of feed.

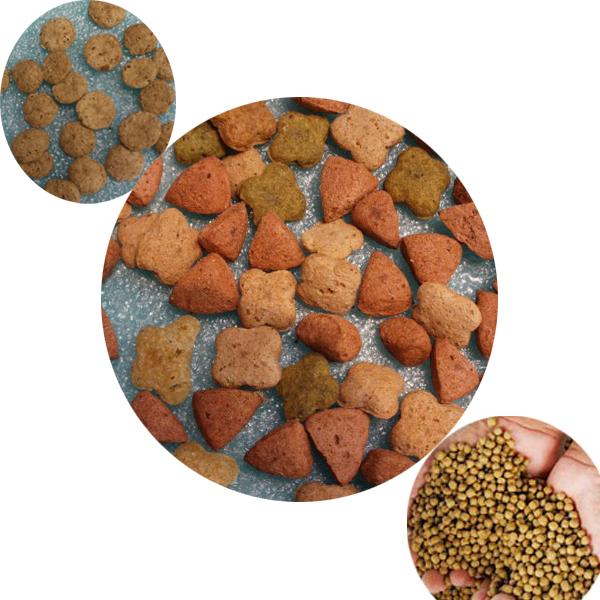

8. Production of buoyancy puffed feed particles can maintain at least 12 hours don't bubble floating in the water, fish and livestock like to eat and easy digest, artificial class can easily observe frog fish to eat, can’t cause feed waste, pollution of water quality. Under high temperature and high pressure effectively kill harmful bacteria such as e. coli, salmonella, ensure the health of feed, promotes protein degeneration absorption and starch pasting, easy to fish and livestock. Commonly used expanded buoyancy fish feed than powder or granule Save feed 8% to 15%.
9. It can produce heavy aquaculture, livestock feed particles, can eliminate most of materials containing toxins and no nutritional factors antitrypsin and urine enzyme, thus is advantageous to the animal digestion and absorption, improve digestion and utilization of nutrients.
Model | Capacity kg/h | Main power KW | Feeding power KW | Spiral diameter mm | Cutting power KW |
ZS40-C | 30-40 | 5.5 | 0.4 | 40 | 0.4 |
ZS50-C | 60-80 | 7.5-11 | 0.4 | 50 | 0.4 |
ZS60-C | 120-150 | 15 | 0.4 | 60 | 0.4 |
ZS70-C | 180-200 | 18.5 | 0.4 | 70 | 0.4 |
ZS80-C | 200-300 | 22 | 0.4 | 80 | 0.6 |
ZS90-C | 300-400 | 37 | 0.6 | 90 | 0.8 |
ZS120-C | 500-600 | 55 | 0.6 | 120 | 1.5 |
ZS135-C | 700-800 | 75 | 0.8 | 133 | 2.2 |
ZS160-C | 1000-1200 | 90 | 1.1 | 155 | 3.0 |
ZS200-C | 1800-2000 | 132 | 1.5 | 195 | 3.0-4.0 |
