Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen
Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen
Specifications
Place of Origin :
China
Brand Name :
Nomo
Certification :
CE,RoHs
Model Number :
ST60W W
Description

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen

Quick details

Light Source:

LED

Item Type:

Street Lights

LED Light Source:

45mil Bridgelux

Input Voltage(V):

AC985-265V /DC12-24V

Lamp Power(W):

60W

Lamp Luminous Flux(lm):

6600lm

Lamp Luminous Efficiency(lm/w):

110

CRI (Ra>):

85

Color Temperature(CCT):

2700-7200K

Working Temperature(℃):

-40 - 50

Working Lifetime(Hour):

50000

Lamp Body Material:

Aluminum

IP Rating:

IP67

Certification:

C-tick, CE, RoHS, SAA,

Warranty(Year):

3-5years

Place of Origin:

Shenzhen, China (Mainland)

Brand Name:

Nomo

Model Number:

NM-Street light

Light source:

Bridgelux 45mil LEDS (America)

Available color:

Gray/customized

Frequency:

50/60HZ

Product name:

LED Street Light

Power:

60W-180W

Application:

Square,street light

Type:

ST60W-180W

Power Supply:

85-265V 50/60Hz

LED Chip:

COB

Material:

Die-casting Aluminum

Model

Power

Lumen

LED Chip

LED QTY

Dimension (mm)

ST60W

60W

95-110lm/W

Bridgelux

1(pcs)

L505*W215*H75

ST80W

80W

95-110lm/W

Bridgelux

1(pcs)

ST100W

100W

95-110lm/W

Bridgelux

2(pcs)

L725*W285*H82

ST120W

120W

95-110lm/W

Bridgelux

2(pcs)

ST150W

150W

95-110lm/W

Bridgelux

3(pcs)

L950*W355*H85

ST180W

180W

95-110lm/W

Bridgelux

3(pcs)

Detailed arameter

Model

NOMO-60W

NOMO-100W

NOMO-150W

NOMO-180W

Category

Road Light

Power

60W

100W

150W

180W

Input Voltage

AC85-265V DC12-24V

Light source

Bridgelux 45mil LEDs (America)

Power drive

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen MEANWELL HLG series

Size(mm)

530*250*110

650*250*110

805*310*125mm

805*310*125mm

Package Size(mm)

550*270*160

660*275*175

820*335*195mm

820*335*195mm

Net Weight

4.9kg

6.75kg

10.6kg

10.6kg

Gross weight

5.7kg

7.4kg

11.4kg

11.4kg

Power Fator

>0.95

LED QTY

60W*1pcs

50W*2pcs

50W*3pcs

60W*3pcs

Efficiency(lm/w)

>110lm/w

Frequency

50/60HZ

Material

Aluminium + tempered glass

Available color

Gray/customized

Light degradation rate

25000h ≤ 30%

Rated life

50000h

Working temperature

-40~+50°C

IP grade

IP67

Color rendering index

Ra>85

Warranty

5 Years

Application

Highway,courtyard,road,Downtown streets,Parking lots,etc.

Detailed image

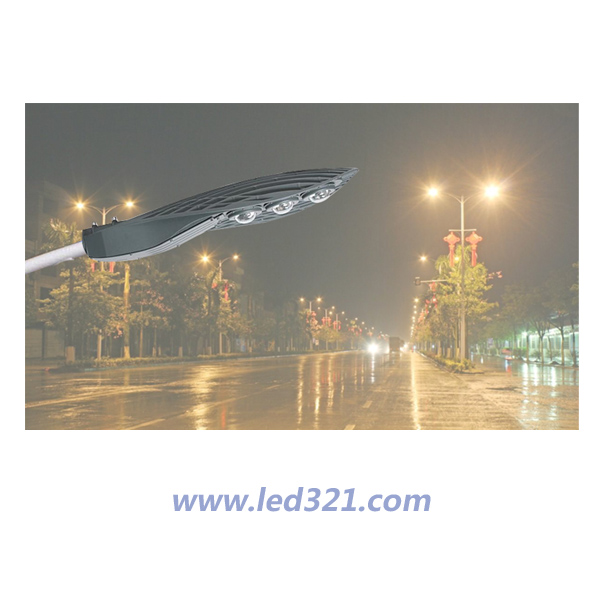

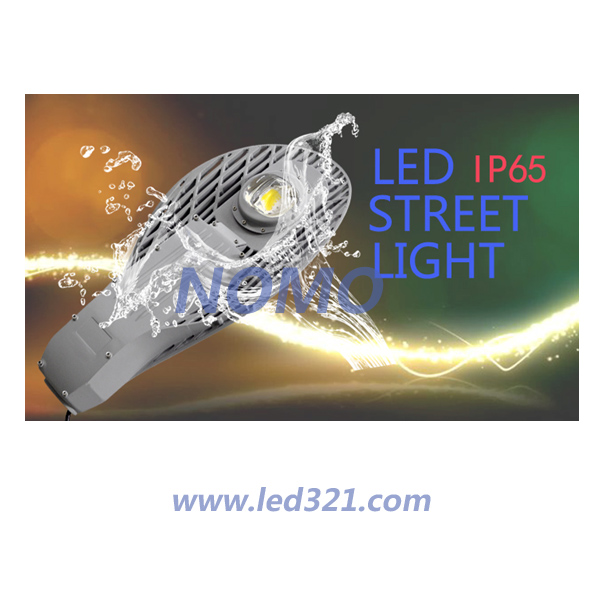

60W LED street light

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen

Ø Using the high power led which has the independent intellectual property, saving more than 65 % energy compared to the traditional street light

Ø Initiating the radiator and housing integration design, LED is connected to the shell directly (ideal cooling effect) , fully guaranteeing the operating life.

Ø Shell encapsulated with aluminum alloy, which can effective cooling, prevent water, and meet IP65.

Ø No bad glare, stroboscope or startup delay, eliminating the disadvantage of the traditional street light.

Ø Environmental-friendly without contamination, with no Lead, Hg or any other pollution elements included, No pollution to the environment.

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen

Lighting issued by LED street light with COB(Chip On Board)without ghosting is uniformly and smooth,COB adopt heat resistant tempered glass as material for lens with higher clarity and bearing capacity known for better tensile breaking strength and excellent thermal performance as well as explosion-proof and anti-cold.

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen

High quality power supply, selection of power supply to prolong the service life of meanwell.

Enegy saving 60W LED Street Lighting Lamp Power Factor(PF)≥ 0.95/street light high lumen
