manual operation cement grouting pump
manual operation cement grouting pump
Specifications
Place of Origin :
china
Brand Name :
chinacoal
Model Number :
ZM
Certification :
CE
Description

Application :

Manual cement grouping pump used widely,can be injecting cement slurry, chemical pulp and all kinds of the low viscosity liquidity good pulp material .

Mainly used in coal mine explosion-proof places need grouting; Mine highway tunnel power supply, traffic inconvenience sites of the grouting.

Advantage ：

1,No electric, small volume ,light weight ,easy move.

2,durable, easy maintenance

3,manual operation ,high pressure ,grouting speed and flow can be arbitrary control.

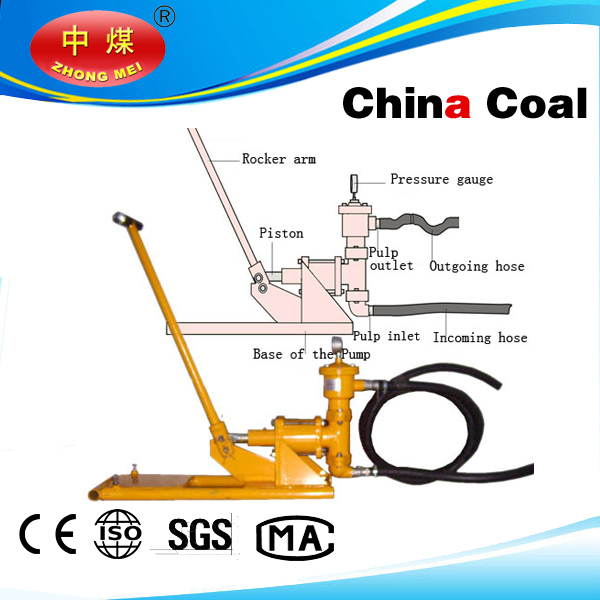

Working instruction :

1 Put the incoming hose into the liquid material .

2 The operator stand on the Base of the pump ,then pull the Rocker arm up and down ,then the material will out from the Outgoing hose .

Machine principles:

Simply say is the piston movement, piston out, this time the ball at inlet opening, outlet gate ball close. When the piston advancing the material, then close the inlet ball, outlet ball open. Reciprocation. There is a sealing ring between the slurry and the piston . Piston with butter mouth needs added butter regularly. No grease lubrication will cause friction heat , then produce abnormal phenomenon, the performance is the piston can not move.

Precautions:

1, after each job is completed, washing machine and pipes. The specific approach is: 1)put suction tube into the tank, rocker rocking back and forth until the water outflow discharge slurry pipe; 2) stir with wire midge mouth move the ball, the piston chamber outflow of water through the grout port; 3) Tilt the machine 90 degrees, so that the water flows out from the ball on the chamber discharge slurry outlet.

2, injected butter at the injection nozzle regularly.

Technical Parameters:

Work capacity

6-10L/min

Pressure

0-1.0 Mpa

Inlet pipe diameter

25mm

Outlet pipe diameter

25mm

Weight

45kg

Overall size

1250*300*500 mm
