Newest led line light AC100-277V CE ROHS approval
Features of led line light
Light source: SMD LED Epistar
Low power consumption
High luminosity and long life time
Environmentally friendly
Excellent opto-electronic performance
High-efficiency cooling system
Isolated Driver, PF>0.98
IP54
No need bracket, easy to install
Bnefit of led line light
Energy saving about 70%
Long life span more than 50000 hours
No infrared rays , no ultraviolet radiation , no thermal effect
can be adjusted any angle according needs
Special circuit design , avoided the single broken LED influence problem
High efficiency constant current drive system with heat protection system , can work under unstable voltage
Super brightness 110lumen/w ,special led structure , much brighter than normal led tube or led panel
Beautiful and model design , top grade which is suitable for top grade hotel , supermarket shop and houses
Dimmable function with different size ,600mm/900mm/1200mm/150mm
Specification of led line light
Model | PS- C15130A | |
Total Power | 130W | |
Light Source | 2835 SMD LED | |
Power Driver | Isolated driver | |
Main Material | Aluminum alloy +copper | |
Input Voltage | 100-277V | |
Color Tempreature | 3000K/4000K/5500K/6500K | |
Total Fulx(LM) | 14300lm | |
Life span | >50000 hours | |
CRI(generally) | Ra=75(According to the requirements≧80) | |
Adjustable Angle | Fixing angle | |
Power Factor | >0.97@240V / >0.99@110V | |
1W LED Luminous Efficiency | 145-150Lm/W | |
Lamp Fixture Luminous Efficiency | 110Lm/W | |
IP Rating | IP54 | |
Carton Size(mm) | 1500mm*850mm*84mm | |
Packaging Style | Knife card and the pearl wool , Neutral packing for the outer container | |
Operating Environment | Temperature : -20℃-45℃ Humidity : 20%-95% | |
Warranty | 3 years | |
Certificate | CE ROHS FCC ETL |

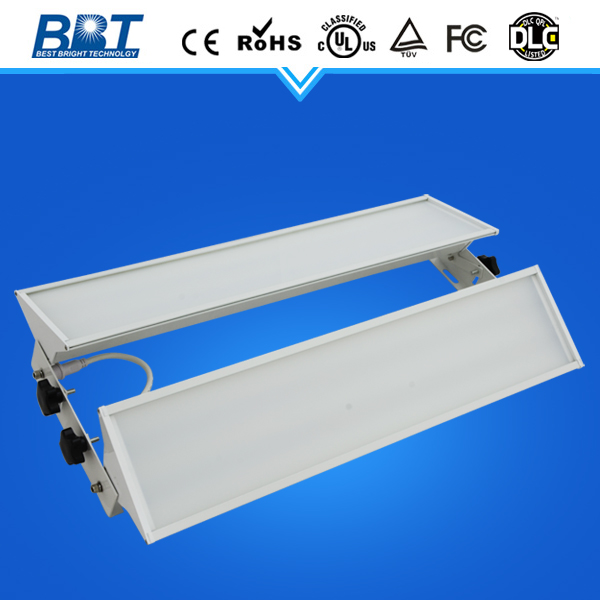

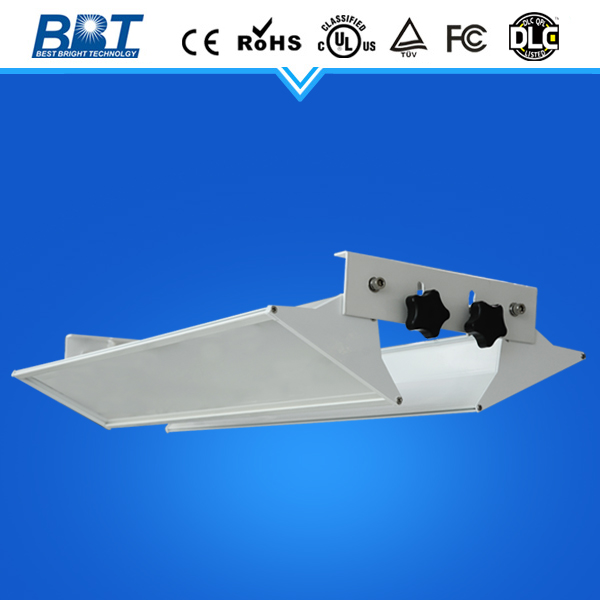

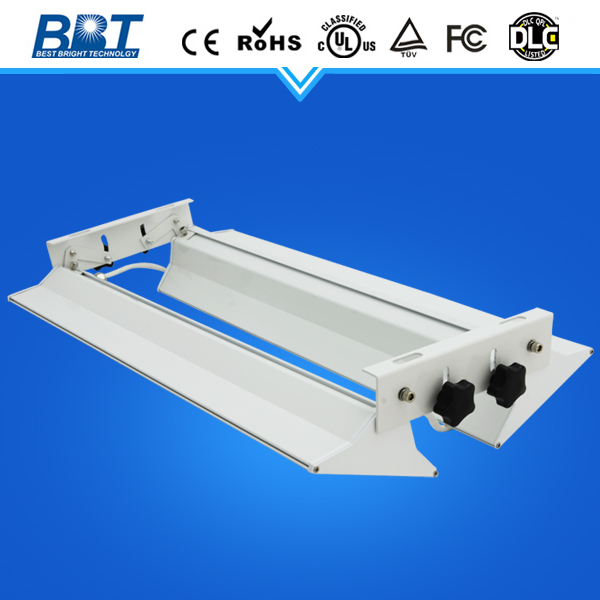

Photos of led line light
Application of led line light
Led line light shipment
1. By Express:such as DHL, UPS,TNT, FEDEX, etc.
2. By Air: When you order more than 200KG,it will be much more economical than express.
3. By Sea:shipping by sea is available for bulk order.
4. Agent designated by client:please tell us the contact detail of your shipping agent and we will arrange to deliver the items
