Specifications
Place of Origin :
Shenzhen
Brand Name :
BBT
Certification :
CE, RoHS.
Model Number :
PS-C12110A
Description

110W linear light CE ROHS approval PF>0.98 Isolated driver

Features of linear light

  • Light source: SMD LED Epistar

  • Environmentally friendly

  • Excellent opto-electronic performance

  • BBT patented cooling system, working temperature is below 50℃

  • Isolated Driver, PF>0.98

  • IP54

Advantages of linear light

  • Energy saving about 70%

  • Long life span more than 50000 hours

  • No infrared rays , no ultraviolet radiation , no thermal effect

  • Instant start , no flickering , no humming , no RF interference

  • Connectable there is male and female plus on each new panel style led tube ,you can connect 1000pcs one by one

  • Dimmable function with different size ,600mm/900mm/1200mm/1500mm/1800mm/2400mm

Specification of linear light

Model PS-C12110A
Total Power 110W
Light source 2835 SMD Epistar
Power Driver Isolated driver
Main Material Aluminum + PC cower
Input Voltage 100-277V
Color Tempreature 3000K/4000K/5500K/6500K
Total Fulx(LM) 12100Lm
Life span >50000 hours
CRI(generally) Ra≧80
Adjustable Angle Fixing angle
Power Factor >0.97@240V / >0.99@110V
1W LED Luminous Efficiency 140-150Lm/W
Lamp Fixture Luminous Efficiency 110Lm/W
IP Rating IP54
Carton Size(mm) 1530mm*150mm*212mm 4PCS inner/Box
Packaging Style Knife card and the pearl wool , Neutral packing for the outer container
Net Weight 2.4KG/PCS
Gross Weight 4PCS/14.6KG/BOX
Operating Environment Temperature : -20℃-45℃ Humidity : 20%-95%
Warranty 3 years
Certificate CE ROHS FCC ETL

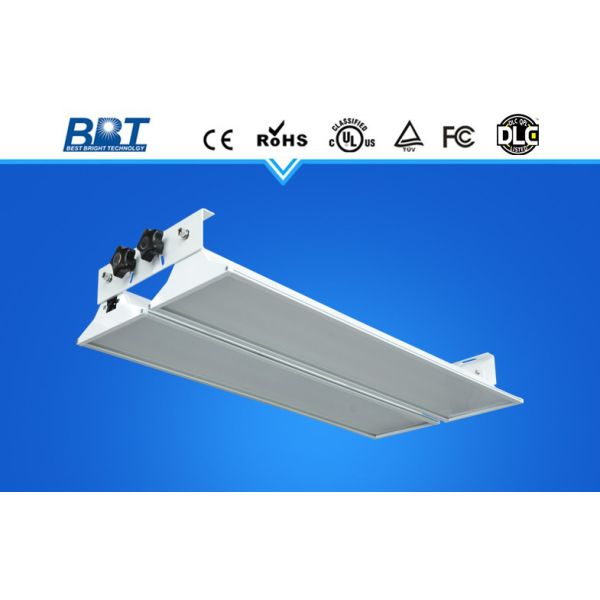

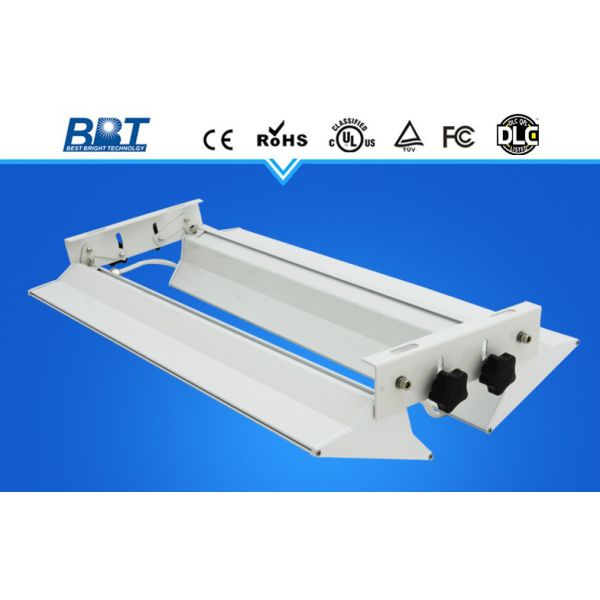

Photos of linear light

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

110W twins linear light CE ROHS approval PF>0.98 Isolated driver110W twins linear light CE ROHS approval PF>0.98 Isolated driver

linear ligth series

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

Connection ways of linear light

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

Impression drawing of linear light

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

Picture of linear light shipping

1. By Express: such as DHL, UPS, TNT, FEDEX, etc.

2. By Air: When you order more than 200KG, it will be much more economical than express.

3. By Sea: shipping by sea is available for bulk order.

4.
Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

About Us

BBT has engineers from Holland , Japan , and Germany , and manufacture LED Tube ,LED High Bay , LED Flood Light ,LED street Light ,LED Linear Light, LED wall Light, LED SG light and so on since 2009.

BBT is specialized in developing , designing producing selling LED products , and providing professional lighting solutions and intergraded service.

BBT products are exported to the United States Australia , Holland , Norway , Germany , England , etc ,the quality of products received by customers.

110W twins linear light CE ROHS approval PF>0.98 Isolated driver

Our service

  1. For all your inquires about us or our products, we will reply you in detail within24 hours.
  2. We have engineers who has the experience of 58 designsfor big lighting engineering projects to help you solve all the problems of technical.
  3. We have sales who have engage in LED about 8yearsto help you custom-made the sales solution.
  4. We have a good translation, enthusiastic sales and service who can speak fluently in English language.
    5. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
  5. We have very experienced R&D engineersand we have strong ability to do ODM projects.

110W twins linear light CE ROHS approval PF>0.98 Isolated driver
