Tile Forming Machine and Corrugated Roof Tile,Roof Use Galvanized Roofing Sheet Machine
Tile Forming Machine and Corrugated Roof Tile,Roof Use Galvanized Roofing Sheet Machine
Specifications
Place of Origin :
China
Brand Name :
XH
Certification :
SGS,BV
Model Number :
35-125-750
Description

750 Fully Automatic Corrugated Tile Steel Roof Roll Forming Machine

Working process

Tile Forming Machine and Corrugated Roof Tile,Roof Use Galvanized Roofing Sheet Machine

Tile drawing and tile

Tile Forming Machine and Corrugated Roof Tile,Roof Use Galvanized Roofing Sheet Machine

Machine parameter

Material Width 1000mm
Effctive width 750mm
Thicknes 0.3-0.6mm
Size 5600mm*1400mm*1300mm
Weight about 3tons
Diameter of shaft Φ70,45#steel
Material of roller 45#steel,Chrome
Main motor power 3.0kw
Hydraulic station 3.0kw
Number of rollers 13stand rollers
Control system PLC computer controller
Speed 6-10m/min
Chain 0.6 inch

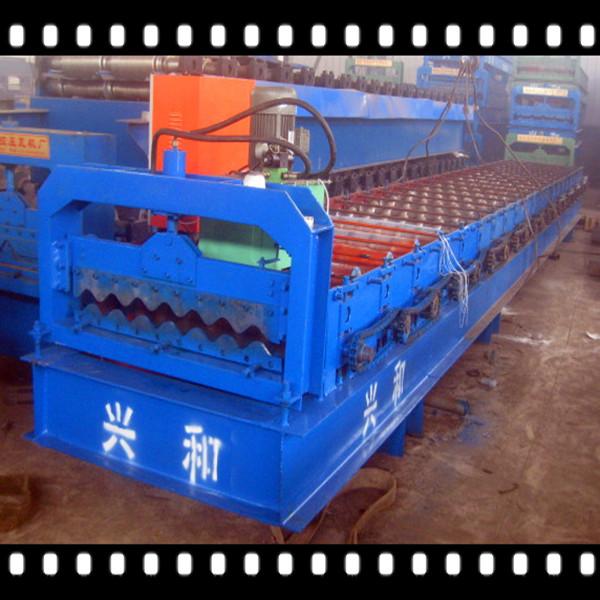

Machine shows

Tile Forming Machine and Corrugated Roof Tile,Roof Use Galvanized Roofing Sheet Machine

Package & Payment & Delivery

1.Delivery: in stock

2. Package: Export Standard package for container

3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine we send )

4. Validity: good for 30days

Our Service

1)- we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country

2)You can send your men to our factory. we will teach them how to operate the machine withouttraining charges

3)Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.

4)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support

FAQ

A QU: Does one machine can only produce one style panel profile?

AS: Not exactly.For wider and double layer making machine.

It can produce more than 6 kinds of panels.

B QU: How many panels does common machine produce?

AS: Maybe more than two.It depends on feeding width.

C QU: I need the machine to roll form 914mm width sheet and 1219 mm width sheet , ok?

AS: Of course,OK.It is common feeding width. Many kinds of roll forming machine designs available.

D QU: Is your machine suitable for thickness of 0.25mm, 0.28mm and 0.30mm and 0.36mm of sheet thickness?

AS: Yes.Common thickness is 0.3-0.8mm.But it can roll 0.25mm also.

E QU:What is effective width and cover width?

AS:Effective width=Cover with

It means the max distance between two waves of finishing panel sheet.
