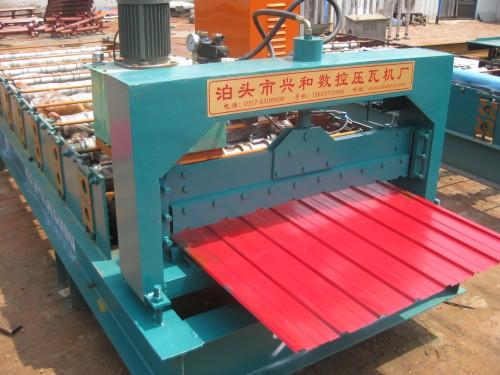

Horizontal Installed Corrugated Wall Panel Forming Machine
Horizontal Installed Corrugated Wall Panel Forming Machine
Specifications
Place of Origin :
Hebei
Brand Name :
XH
Certification :
SGS,BV
Model Number :
9-130-910
Description

Horizontal Installed Corrugated Wall Panel Forming Machine

1.Forming Tile Show:

Horizontal Installed Corrugated Wall Panel Forming Machine

2.Producing Process Show:

Horizontal Installed Corrugated Wall Panel Forming Machine

3.Equipment Technical Pamameter:

Main Forming Machine Technical Pamameter:

machine size

5800mm*1400mm*1300mm

Feeding width

1000mm/1250mm

Equipment weight

3.5T

Material of shaft

45#steel adjustable treatment

Out diameter of shaft

φ70mm

Material of roller

Cr12, quenched treatment HRC58-60°C

Number of forming rollers

12 standard rollers

Main frame

300 H steel

Thickness of medium plate

14mm

Transportation system

Chain transportation

Thickness of chain

0.6 inch

Main motor power

3 KW

Bearing

6213

Forming speed

8-12m/min

Rolling thickness

0.3-0.8mm

Ps:Parameters above is the standard configuration.Parameters can be designed as per your special requests.

4.Equipment Show:

Horizontal Installed Corrugated Wall Panel Forming Machine

5.Equipment Loading Show:

Horizontal Installed Corrugated Wall Panel Forming Machine

6.Customers to Visit:

Horizontal Installed Corrugated Wall Panel Forming Machine

Ps:our products have been exported to more than 20 countries and regions over the world, and maintained good cooperative relations with customers .

We do firmly believe in technological innovation and making every detail of the product perfect is our ambition ever.

7.About Us:

Botou Xinghe Roll Forming Machinery Co.,Ltd. is located in botou - the home of roll forming machine . With8years of production experience ,we can offer you good quality machine at favourable price .

8.Service:

1) Pre-sale service:

Freely provide project designing, process designing, choosing suitable equipment for you.

2) Medium-sales service:

Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3) After-sales service:

We sent engineer to the scene to guide installation, debugging and training operators.
