Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Steel Roof Panel Glazed Tile Roll Forming Machine For Construction
Specifications
Place of Origin :
China
Model Number :
1050
Description

1050 Popular In India Glazed Tile Roll Making Machine

1050 Glazed tile roll forming mchine

1.Steady performance
2.Longtime usage
3.Easy operation and machine

Working process

Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

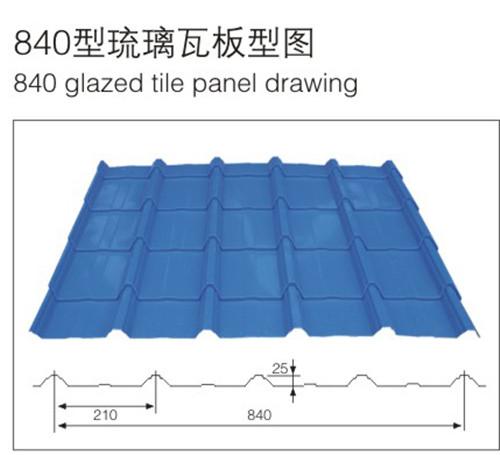

Tile Drawing

Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

Machine parameter

Material Width1000/1200mm
Effctive width

1050mm/840mm

Thicknes0.3-0.6mm
Size6500mm*1400mm*1300mm
Main Frame300H steel
Chain0.6 inch
Weightabout 3.5 tons

Shaft

Φ70,45#steel
Material of roller45#steel
Number of rollers1050Glazed:11 stand
Main motor power3.0kw
Hydraulic station3.0kw
Control systemPLC computer controller

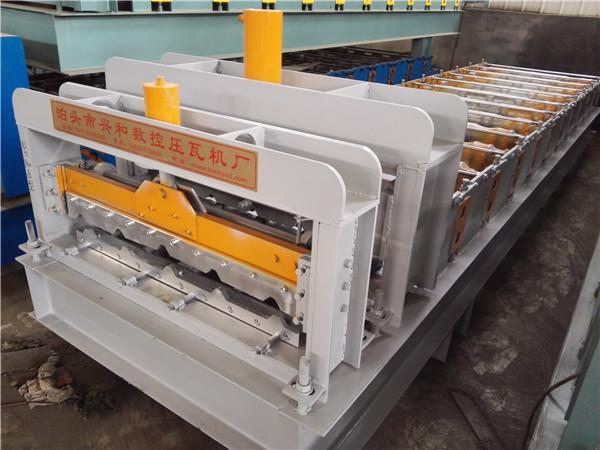

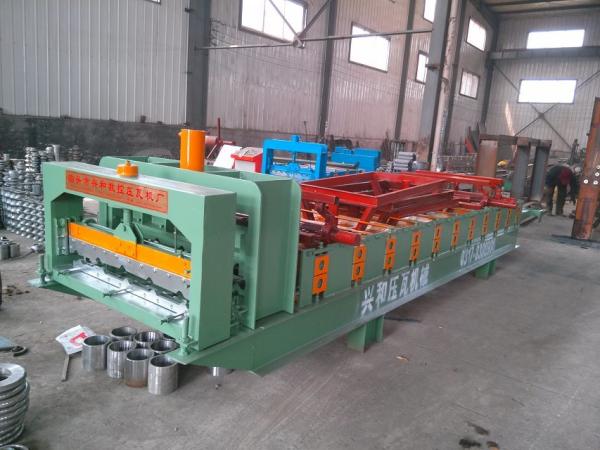

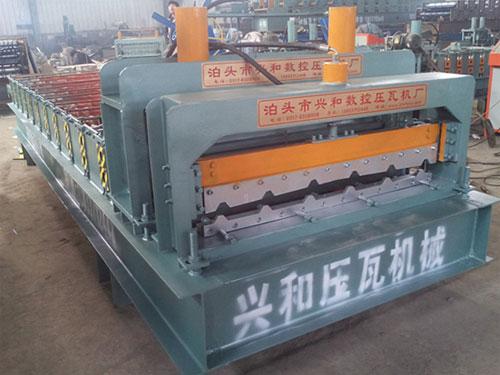

Machine shows

Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

Steel Roof Panel Glazed Tile Roll Forming Machine For Construction

Company shows

Steel Roof Panel Glazed Tile Roll Forming Machine For ConstructionSteel Roof Panel Glazed Tile Roll Forming Machine For Construction

Our Services

1.)we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country

2.)You can send your men to our factory. we will teach them how to operate the machine without training charges

3. )Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine.

Then we can get a video call,and teach you on-line how to operate the machine.

4.)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support !

Product tags

metal roofing sheet making machine

,

roof tile forming machine

,

glazed roof tile roll forming machine
