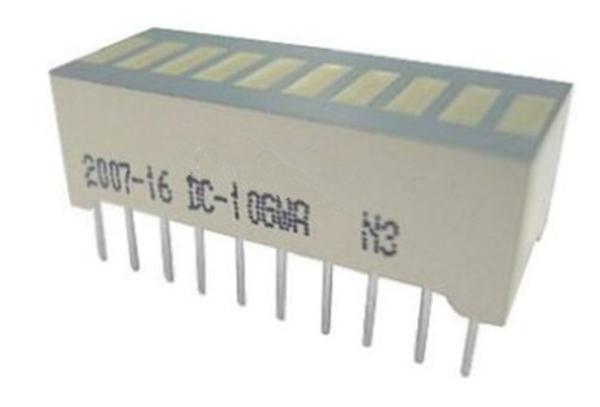

Light Bar Array Through hole LED Display, Orange 110000 mcd
Light Bar Array Through hole LED Display, Orange 110000 mcd
Specifications
Place of Origin :
China
Model Number :
DC-10SEKWA
Certification :
RHOS,CE
Description

Description:

Colour of Face:Grey
Display Type:Light Bar Array
External Depth:8mm
External Dimensions:10.16 x 25.4 x 8 mm
External Height:10.16mm
External Width:25.4mm
LED Colours:Orange
Luminous Intensity:110000 mcd
Maximum Operating Temperature:+85°C
Minimum Operating Temperature:-40°C
Mounting Type:Through Hole
Number of Segments:10
Operating Temperature Range:-40 → +85°C

10 Segment Bar Graph ArrayThis family of bar graph arrays consist of 10 segments. They are available in a range of single a multi-colour options with a high on/off contrast. This make the 10 segment bar graph arrays ideal for level indicator applications. As standard, these bar graph arrays have a grey face with white segments.
Features of the 10 segment bar graph arrays:
Array dimensions: 25.4 x 10.16 x 8 mm
Segment dimensions: 5.08 x 1.78 mm
Low current operation End stackable
Mechanically rugged
