11 Seats Electric Sightseeing Bus 4 Wheel Electric Shuttle Car
11 Seats Electric Sightseeing Bus 4 Wheel Electric Shuttle Car
11 Seats Electric Sightseeing Bus 4 Wheel Electric Shuttle Car
11 Seats Electric Sightseeing Bus 4 Wheel Electric Shuttle Car
11 Seats Electric Sightseeing Bus 4 Wheel Electric Shuttle Car
11 Seats Electric Sightseeing Bus 4 Wheel Electric Shuttle Car
Specifications
Brand Name :
TOPCART
Model Number :
TG-11
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Price :
3000-4500 USD PER UNIT
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500 UNITS PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
EXPORTED PACKAGE
Color :
Bule
Seats :
11
Controller :
USA Curtis Controller 350A
Dimension :
4500*1500*200 MM
Chassis :
Aluminum Material
Climbing Capacity :
25%
Description

Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.

Our golf cart has the same parts with Club Car,so the warranty can be gurantee,details parts listed as below:

※ Advanced Disc Brake Technology
※ Global Special LED Headlight
※ Italy Graziano Transaxle
※ Curtis Controller 48V 275A
※ Special Design Battery Tray
※ Rear View Mirror And Driver/Passenger Side Mirrors
※ Automotive Safty Glass Windshield
※ Deep Cup Holders
※ USA Imported Unique E-KEY
※ Eletromagnetic Brake Makes Driving More Safty
※ 100% Waterproof accelerator

Key Components

Item Description
System DC system AC system
Controller Curtis controller 1266A-5301, 350A, imported from USA directly Curtis controller 1234E-5321, 350A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 5kw
Battery Trojan battery, T875,6V*12pcs, imported from USA directly Trojan battery, T875,6V*12pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16
Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator

Performance

Item Description
system DC system AC system
Passenger Capacity 14 14
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 50-70km 60-80km
Charging time 8-10 hours 8-10 hours
Max.loading weight 510kgs 510kgs
Min.turning radius 5.1m 5.1m
Max. movement after brake at speed of 20km/h ≤4m ≤4m

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item Description
Overall dimensions (L x W x H) 5300x1500x2000mm
Ground clearance 150mm
Wheelbase 2850mm
Front wheel tread (mm) 1210mm
Rear wheel tread (mm) 1200mm

Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer

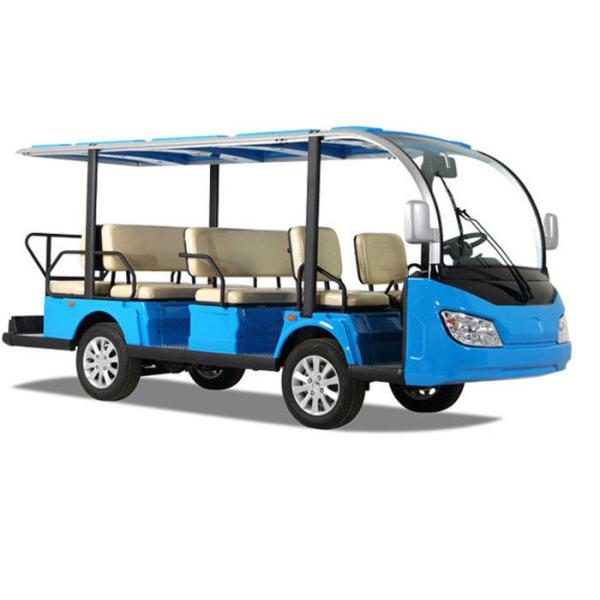

Product Image

11 Seats Electric Sightseeing Bus 4 Wheel Electric Shuttle Car
