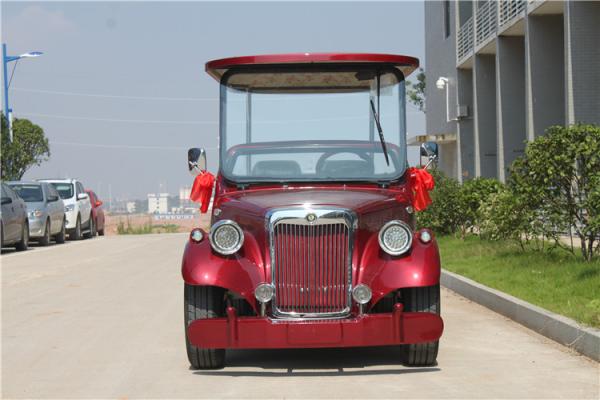

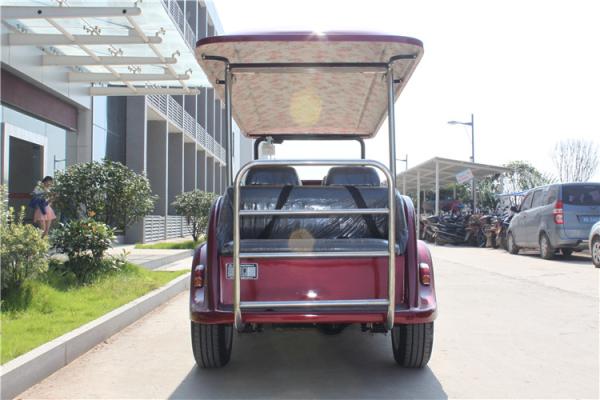

Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Classic 6 Person Custom Electric Golf Carts With Aluminum Chassis For Sightseeing
Specifications
Brand Name :
Topcart
Model Number :
TC-6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
3000-4500 USD PER UNIT
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500 UNITS PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
EXPORTED PACKAGE
Color :
Red
Seats :
6
Fuel type :
Electric
Battery Voltage :
48V
Service :
OEM
Chassis :
Aluminum
Description

48V Classic Golf Cart 6 Seater With Aluminum Chassis For Sightseeing

Features

Exterior dimensions5000*1500*1950 mm4860*1570*1950mm4860*1570*1950mm
Curb mass923kg915kg915kg
Max.total mass1523kg1550kg1550kg
Max.speed28km/h
Driving Mileage80-100km
Front tread1165mm
Rear tread1165mm
Grade capability25%
Energy consumption(kwh)>15
Rated capacity(including driver)8
Suspension(front/rear)Torison bar spring/independent suspension/stell plate spring
Brake typeFormer dish brake/hub after brake
Transmission case typeCVT
Tire type175/70R14
Min.Ground clearance 150mm
DC/DC converter48v/12v non isolated type
ChassisHigh-strong composite aluminum frame
BodyHIgh-strong composite body(GRP body)
Rear axleEfficient gear differential mechanism
AcceleratorMechanical signals match to electronic logic and it is water-proof and anti-fog
Roof Solf topHard topHard top
Drive system

4860*1570*1950mm
915kg
1550kg
Hard top
MotorMotor typeDC motor
Power4KW
Voltage48V
Torque (N.m)13.65n.m
BatteryTypeLead-acid cell
Voltage8V
Capacity (AH)150AH
ControllerHigh voltage rated DC voltage48V
Peak current virtual value400A
Standard colorBlack, White, Lemon yellow, Champagne gold, Golden yellow, Orange, Brown, Charade Red
PackageProtective film and steel frame for safe shipment

Basic Troubleshooting Tools

To start troubleshooting a problem with a golf cart, a good set of hand tools is the first requirement, and owners need a few specific tools to check and test some of the cart's components. The following chart lists the items that are helpful in the diagnostic process.

Tool

Purpose

Digital multimeterTo test electrical components
Ratchet and socketsTo disassemble bolts on attachments for inspection or to access hidden parts
ScrewdriverTo tighten or loosen connections, clamps, and screws
FlashlightTo illuminate work area
Repair manualTo provide instruction on vehicle operation and repair procedures
Battery hydrometer

To check health of a lead acid battery


Having a repair manual for the brand and model of golf cart is an invaluable tool for the owner to troubleshoot some common concerns with the vehicle, in addition to providing instructions for disassembly and re-installation of specific components. If working on the undercarriage of the golf cart, a floor jack can help raise the vehicle for access to the steering, suspension, and drive-axle components of the cart.

Packaging Details:
wooden case or fumigation-free wooden pallet floor sweeper machine
Each order will be packed carefully by our packing specialists who professionally design packing solution for long distance transportation.
