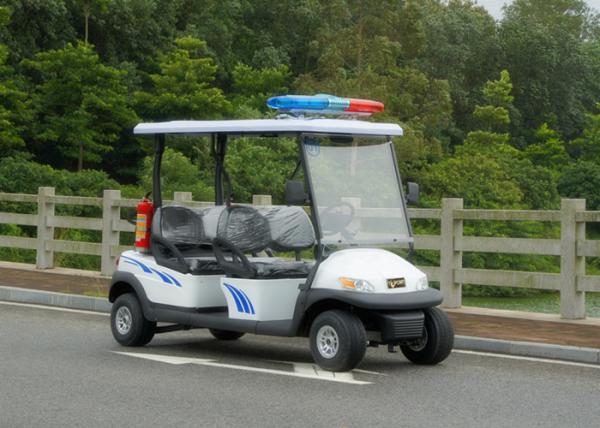

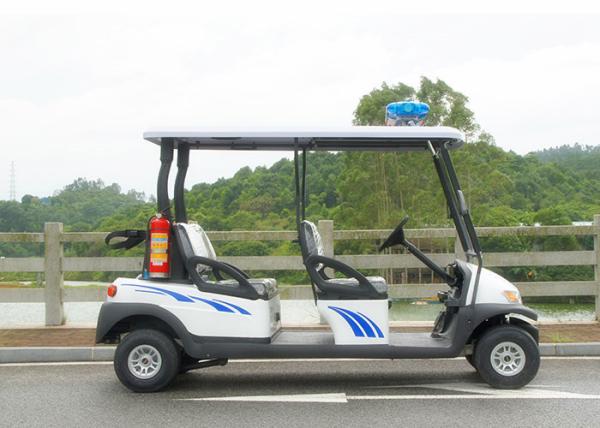

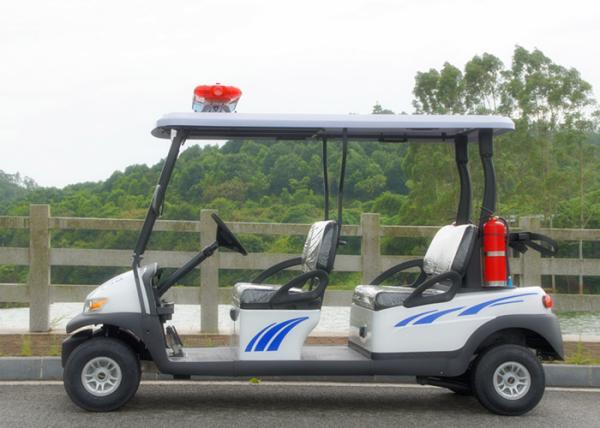

Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Customized White Utility Golf Cart , Electric Police Car For 4 Person
Specifications
Brand Name :
Topcart
Model Number :
TP-4
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
3000-4500 USD PER Unit
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
10-15 Work DAYS
Packaging Details :
Exported Pacrage
Color :
White
Seats :
4
Controller :
Curtis 400 A Controller
Fuel Type :
Electric
Motor :
3.7kw KDS Motor
Battery Voltag :
48V
Description

48V 4 seater Electrical Golf Cart Patrol Cart With Alarm Light

Product Description
Electric system controller 1266/275A
battery Trojan battery 8V 6 units
motor KDS48V/3.7KW motor
charger Computer Intelligent input 220V/110V ourput 48V 20A
Charging time Less than 12 hours discharging rate 80%







Body configuration		 Glass PC glass Sun Roof ABS Vacuum forming
seat leather Floor Autiskid rubber floor
Rear mirror Handoperated, both side Steering Dual automotive-style strut and self-adjust rack-and pinion steering
DC/Light/Signal 48V/12V-300W Front light turning light rear light horn Buzzer
Body PP Vacuum forming
Dash Board PP Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
Braking system Rear drum brake+compound pedal brake
Front axle and suspension Independent suspension helical spring +cylinder hydraulic shock absorption
Rear axle and suspension Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
Tire diameter 452mm

The characteristics of

1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.

Advantages


1. Hot-Galvanized-DIP - 15 years no rust gurantee for hot-galvanized-DIP frame and the cost is much more lower than aluminum;

2. Independent suspension with two arms - It is Safe and comfortable for independent suspension with two arms;

3. Battery tray - Battery tray can protect the batteries and prevent the electrolyte from rusting the frame;

4. Both mechanical and hydraulic brake (two options) - All the automobiles are with hydraulic brake including BMW, brake distance is shorter and people feel comfortable when braking;

5. 10' Aluminum - No rust for aluminum wheels, and bigger wheels look nice;

6. On-board smart charger from same manufacture of Delta On-board charger is convenient that customers can charge the car where there is a socket.
