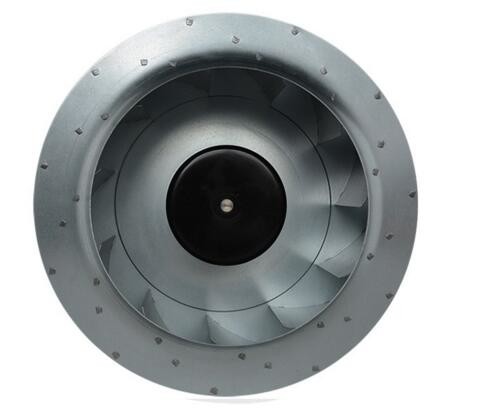

Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor
Specifications
Brand Name :
OFAN
Model Number :
LD280C-230D3-01
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Supply Ability :
10000PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
45*45*24
Power :
170W
Rated Speed :
2150RPM
Air Flow :
1900m³/h
Nominal voltage :
230V
Type :
LD280C-230D3-01
Current draw :
1.2A
Description

Air Flow EC Centrifugal Fans For Air Exchanger With External Rotor Motor

​Type

Nomual voltage

(VAC)

Frequency

(HZ)

Speed

(rpm)

Power imput

(w)

Curreng draw

(A)

Sound pressurelevel

(dB)

 Perm.amb.temp
LD280C-230D3-01 230 50/60 2150 170 1.2 60

-20~+60

Power factor correction(PFC): Passive and active(IEC61000-3-2)

Soft start, adjustable acceleration, CVT

Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)

Protection: over voltage, over temperature, over current, phase loss detection, communication failures.

The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma

The basic parameters of field programmable: Maximum speed, minimum speed, maximum power,

Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans.

Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to

maintain the work area, the fans are run at roughly half the airflow.

AC fan 2800hrs @ 4 x 1.41kW = 5.64kW 15,792 kWh
5600hrs @ 4 x 0.62kW = 2.48kW 13,888 kWh
Total A 29,680 kWh
EC fan 2800 hrs @ 4 x 1.04kW = 4.16kW 11,648 kWh
5600 hrs @ 4 x 0.27kW = 1.08kW 6,048 kWh
Total B 17,696 kWh
A minus B 11,984kWh saved with the EC fan

aster/Slave : This system is used when several fans are used together within a single application. The main fan (Master) is individually pressure

controlled. The other fans (slaves) are then speed controlled by the Master fan : Slave Fans are always at the speed of the master fan (Rosenberg Versions only).

Safe-common necessity of company and customers

Excellent –worker and product

Efficiency-worker and produc
