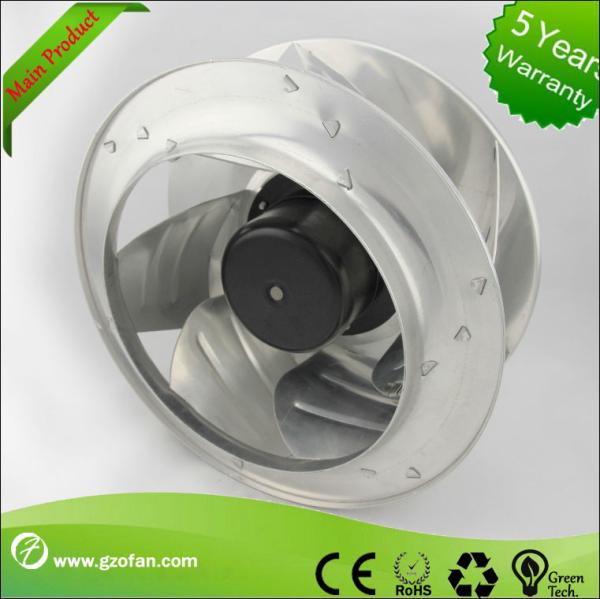

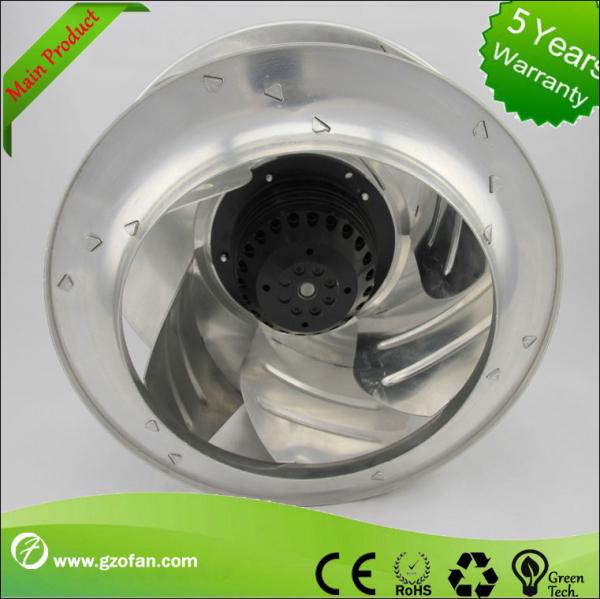

Filtering Ffu Ac Centrifugal Fan Definition Manufacturers With Kc48-6m-400b

Specifications:

Model Number:KC48-6M-400B

Rated Voltage:220V

Rated Speed:910RPM

Power:120w

Rated Current:0.58A

Air Flow:2200m³/h

Material:Gakvabused sheet steel

Type of protection: IP44

Approvals: CCC CE

Insulation class:B

Ball bearing:NSK

AC single-phase 230+-10% Vor three –phase 400+-10%v are alternative for voltage, and 50HZ or 60HZ for frequency

Extensive application---can be widely used in refrigeration and ventilation fields such as duct fans and roofing fans

The safety grade of this series is IP54,and the insulation classes are available among B,F and H,

The average longevity of service is over 24,000 hours

The products have got the CCC certificate in China and CE approval in Europe

Ventilation system in houses and buildings

Air-conditioning system in busses and yachts

FFU(Fan Filter Unit)and clean room system

Electronic oven, burner, constant temperature cabinet, medical instrument, sterilizer and desiccator

Various air curtains

1. if the fans doesn't work well, what shall I do ?

If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
If after one year, we will supply you the right parts to replace at low price.

2. What about delivery date?

Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days

Our performance curves are tested in test camber according to DIN 24163 and refer to an air density of 1.2kg/M3. Testing conducted with inlet cone in airflow direction A, without protection guard
