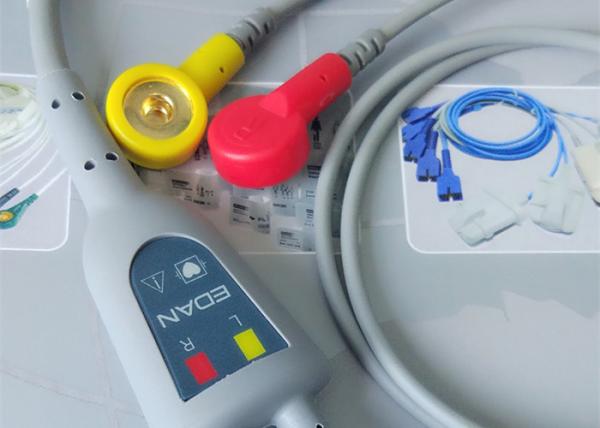

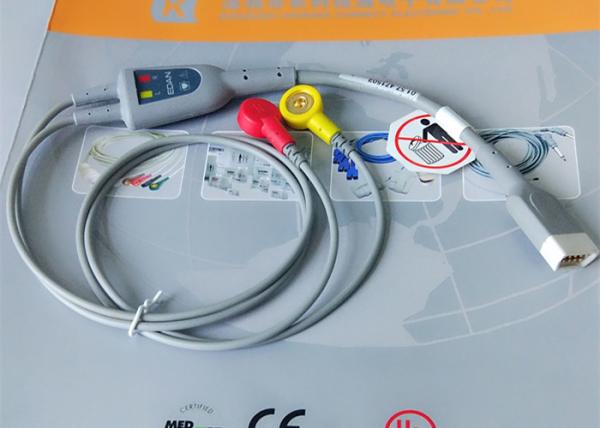

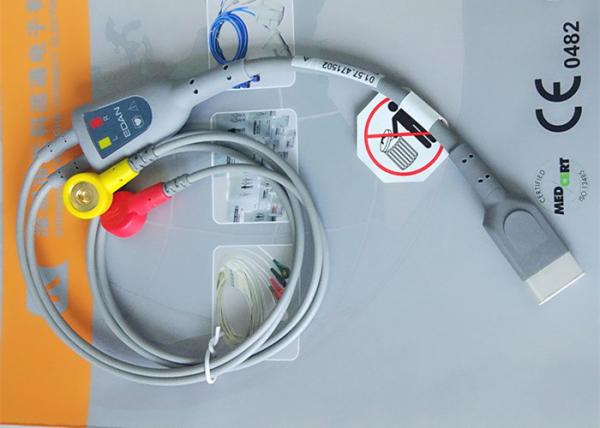

Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
Specifications
Brand Name :
Sinohero
Model Number :
CK-101-211
Certification :
CE&ISO13485
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T, D/A, D/P, T/T, Western Union, MoneyGram，VISA
Supply Ability :
500pcs per Month
Delivery Time :
5-8 days after payment received
Packaging Details :
1PC/BAG/BOX
Brand :
Sinohero
Connector :
DB 9Pin
Length :
2.4M
Connection :
Snap Connection
Warranty :
12 Monthes
Product :
Holter ECG Cable
Product Name :
Snap Electrode Holter ECG Cable 2 Leads For Patient Monitor
Resistance :
1.2Ohm
Material :
PVC,PU
Description

Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor

Name

Snap Electrode Holter ECG Cable 2 Leads For Patient Monitor

ECG Cable Introduction

1:Series ECG Cable Lead Sets as a spare parts of the Electrocardiograph;

2:It's transmit the pysiological sign from the patient's body,connecting Electrocardiograph the with the electrode;

3:the appearance of the play is diffenrent, according to the practical cable;

Production Feature

1:Insulated performance:Between wire and wire ,wire and shield ,the insulated resistance should >100MΩ ,the testing voltage should be 100 DC.

2:Strength of anti electricity , between wire and wire ,wire and shield,exert AC1000V±20%,50Hz voltage,1 s, creepage current<0.25mA, 1 s, creepage current≤0.25mA

3:Creepage current: use the 120V AC 60HZ power supply, live wire tadem ammeter and all trunk cable and lead wire signal cable, the ammeter indicate the passed creepage current less than 10A

4:Anti defibrillation performance(sutible for the product with defibrillation function) The product suffer DC5000V 360J(joule)20% power surge 3 times (every time exert electricity power time is 60seconds) Change in resistance value does not exceed ±10%

Snap Electrode Holter ECG Cable 2 Leads Medical Device Accessories For Patient Monitor
