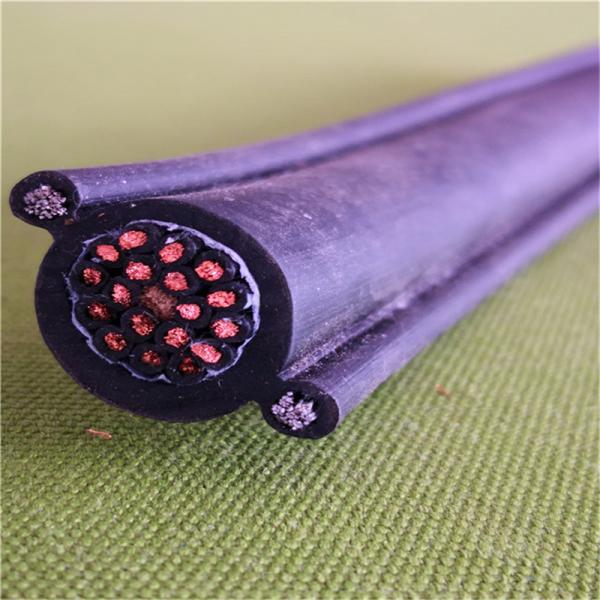

Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
Specifications
Brand Name :
ECHU
Model Number :
RVV2G 12*1.0MM2
Certification :
CCC,CE,UL
Place of Origin :
China
MOQ :
300M
Price :
USD2.29
Supply Ability :
1000000000000METERS
Delivery Time :
7-10days
Packaging Details :
REELS, DRUM,ROLLS
Payment Terms :
T/T
Type :
Pendant Cable
conductor :
bare copper
crane cable :
round crane cable
use for :
crane parts
Voltage :
450/750V
Description

Pendant Cable :
Special flexibility
Temperature range:-15 to +70
Bending radius :20 X outer diameter
one or two steel rope


Applications:
It is the control cable being used for cranes and other appliances in dry or wet indoor.

Properties:

In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4GN and the height 150m. For the adoption of modified PVC sheath,the product has an excellent properties and safty service.

Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2

Structure:

Conductor: Fine strands of oxygen-free copper wire. According to VDE0295 CLASS 5.

Color: Various color cores with number Acc.to JISC3306

Black wit white number and green/yellow acc.to IEC227

Inner liner: non-woven fabric wrapping to release impact

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.

Outer sheath: special PVC, black (RAL9005)
Rated Voltage:<1.5mm2: 300/500v, >1.5mm2 :450/750v Test Voltage:<1.5MM2:2500V , >1.5MM2:3000V


Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2

Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2
