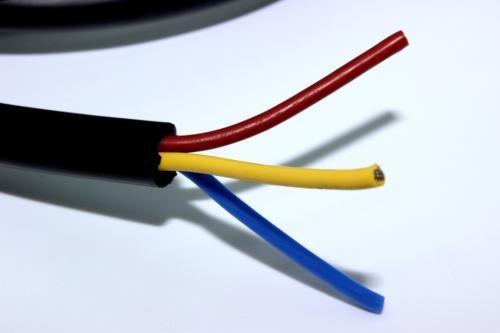

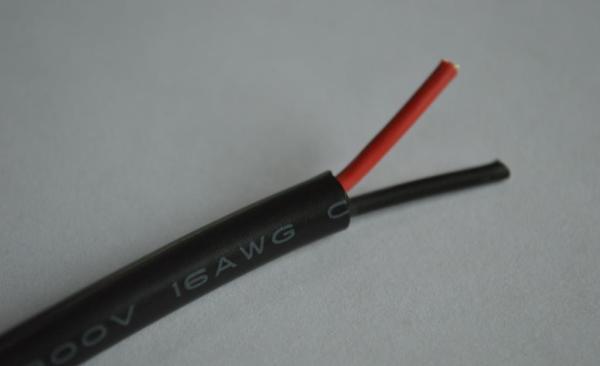

RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
Specifications
Brand Name :
ECHU
Model Number :
UL2501
Certification :
UL
Place of Origin :
China
MOQ :
200Meter
Price :
USD0.155-USD2.12/m
Payment Terms :
T/T, Western Union
Supply Ability :
10000KM/week
Delivery Time :
10day after receiving payment
Packaging Details :
splint reel/ splint box
Type :
Insulaton
Application :
Appliance
Rated Voltage :
600V
Rated Temp :
105℃
Conductor Material :
Copper
Conductor Type :
stranded
Description

UL High Flexible Mobile Cable

◆Application:

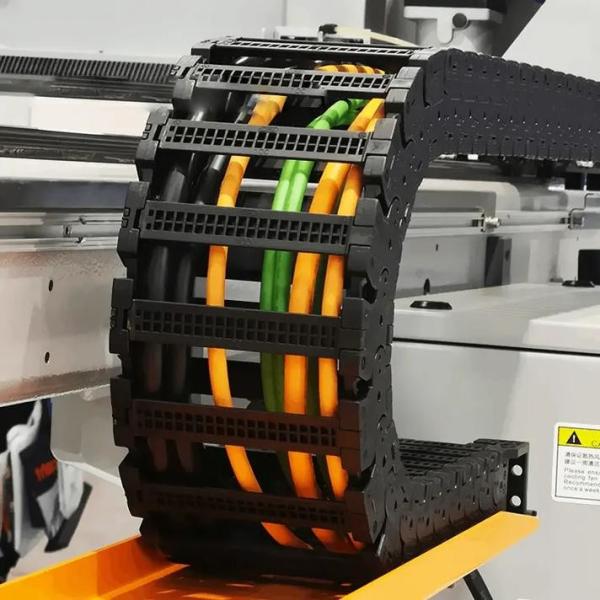

Robots,towing chains,mobile devices

◆Properties:

Waterproofing;oil resistance;coolresistance;abra- sion resistance;flame resistance;anti-ultraviolet. Bending for life:above 10000000times

◆ Structure:

Conductor:Fine strands of oxygen-free copper wire Insulation:special PVC

Shielding:tinnedcopper brainded shielding Sheath:special PVC

Black grey orange

Related voltage:<0.5mm²:300/300V

≥0.5mm²:300/500V Test voltage:2000V

The working temperature:

fixed instalation:-15℃~+105℃ Moved installation:-5℃~+105℃ Minimun bending radius:

fixed instalation:5×outer diameter Moved installation:

When travel<10m,bending radius of 8×d When travel≥10m,bending radius of 10×d

Part-No

Specification

 (kg/km) Weight

(mm)

External Diameter
2501 18AWG*2C 98 9.1
2501 18AWG*3C 117 9.6
2501 18AWG*4C 143 10.5
2501 18AWG*6C 198 12.4
2501 18AWG*8C 262 14.3
2501 18AWG*10C 331 16.2
2501 18AWG*12C 407 18.2
2501 18AWG*16C 435 17.8
2501 18AWG*20C 531 19.7
2501 18AWG*2C 118 9.8
2501 18AWG*3C 146 10.5
2501 18AWG*4C 180 11.3
2501 18AWG*6C 250 13.3
2501 18AWG*8C 340 15.6
2501 18AWG*10C 421 17.8
2501 18AWG*12C 518 20
2501 18AWG*16C 560 19.5
2501 18AWG*20C 692 21.6

Part-No

Specification

 (kg/km) Weight

(mm)

External Diameter
2501 14AWG*2C 149 10.7
2501 14AWG*3C 181 11.3
2501 14AWG*4C 227 12,4
2501 14AWG*6C 321 14.6
2501 14AWG*8C 434 17.2
2501 14AWG*10C 551 19.6
2501 14AWG*12C 675 22
2501 14AWG*16C 741 21.4
2501 14AWG*20C 911 23.7
2501 12AWG*2C 195 11.8
2501 12AWG*3C 248 12.6
2501 12AWG*4C 310 13.9
2501 12AWG*5C 368 14.5
2501 12AWG*6C 442 16.4
2501 12AWG*7C 519 17.9
2501 10AWG*2C 288 14.2
2501 10AWG*3C 362 15
2501 0AWG*4 458 16.5
