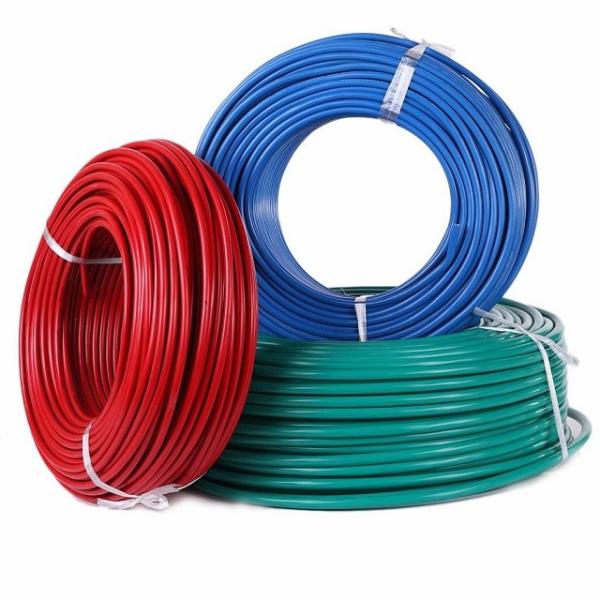

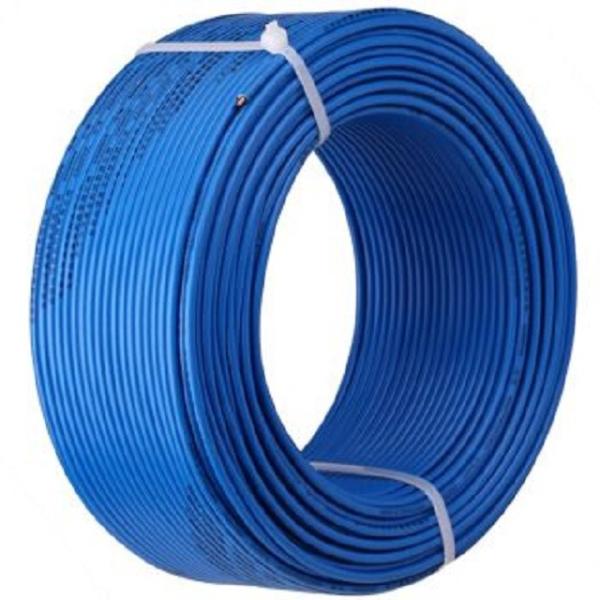

E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
Specifications
Brand Name :
ECHU
Model Number :
UL10269
Certification :
E312831
Place of Origin :
Shanghai, China
MOQ :
300meter
Price :
US$0.073-0.546/m
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000km/week
Delivery Time :
within 10days
Packaging Details :
305m/roll, 610m/roll
Insulation :
ROHS PVC
Jacket :
ROHS PVC
Color :
Different kind of colors
Voltage :
1000V
Description

Product Description:

UL CERT.:E312831

UL10269: 26AWG. 24AWG, 22AWG, 20AWG, 18AWG, 16AWG, 14AWG, 12AWG.....1AWG, 2AWG, 3AWG,4AWG,5AWG,6AWG,7AWG,8AWG, 1/0AWG,2/0AWG, 3/0 AWG, 4/0AWG, 250Kcmil, 300kcmil,350kcmil, 400kcmil,450kcmil,500kcmil,500kcmil

Construction

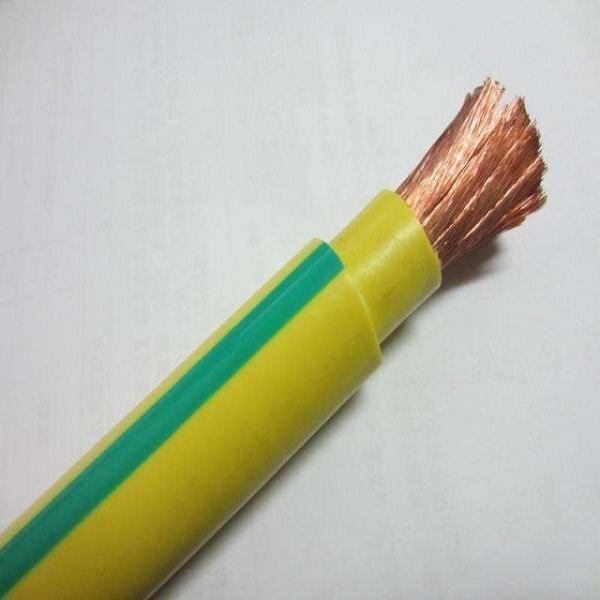

Conductor :bare copper or tinned copper conductor Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:1000V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 105 ℃ Oil
E312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000VE312831 UL & CE Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
UL10269UL10269
TYPE Spec. AWG Bare Copper Tinned Copper Outside Diameter (mm) Remark
Conductor No. Conductor Dia. Conductor No. Conductor Dia.
UL10269 8 118 0.3 118 0.30 7.1
UL10269 7 147 0.3 147 0.30 7.5
UL10269 6 189 0.3 189 0.30 9.2
UL10269 5 238 0.3 238 0.30 9.8
UL10269 4 299 0.3 299 0.30 10.6
UL10269 3 378 0.3 378 0.30 11.4
UL10269 2 475 0.3 475 0.30 12.4
UL10269 1 600 0.3 600 0.30 15
UL10269 1/0 251 0.52 272 0.50 15.9
UL10269 2/0 317 0.52 343 0.50 17.4
UL10269 3/0 400 0.52 433 0.50 19
UL10269 4/0 505 0.52 546 0.50 20.7
UL10269 250 598 0.52 647 0.50 22.8
UL10269 300 716 0.52 774 0.50 24.4
UL10269 350 833 0.52 901 0.50 25.7
UL10269 400 955 0.52 1033 0.50 27.4
