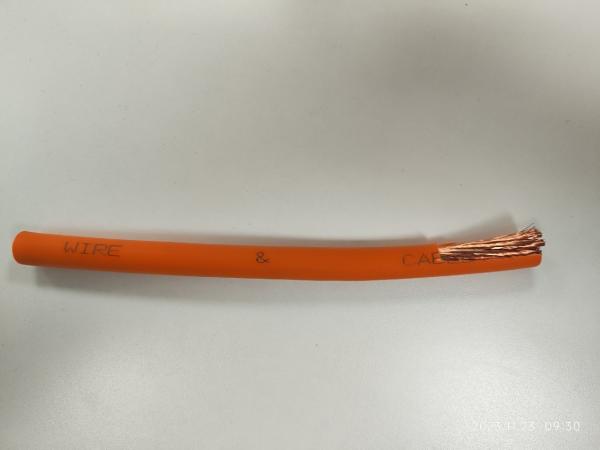

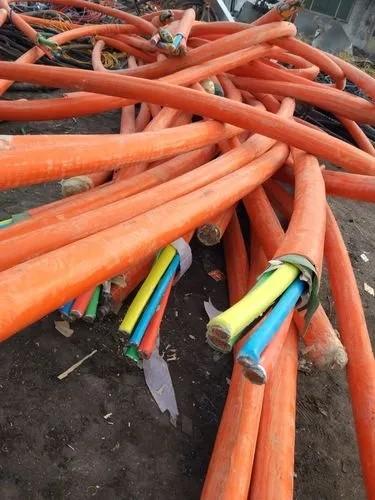

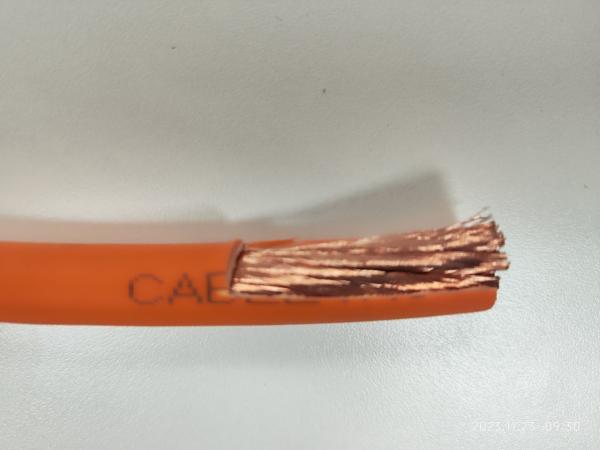

XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
Specifications
Brand Name :
ECHU
Model Number :
ES-RYJ-125/ES-H09Z-F
Certification :
TUV SUD
Place of Origin :
China
MOQ :
100M
Price :
USD0.101-USD10.954/m
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000KM/week
Delivery Time :
10day after receiving payment
Packaging Details :
splint reel/ splint box
Type :
Insulaton
Application :
for battery energy storage system
Rated Voltage :
DC900V
Rated Temp :
125℃
Conductor Material :
Tinned copper or bare Copper
Conductor Type :
stranded
Description

Battery Storage Cable


·Applications:
The cables are for use at the direct current (d.c.)side of battery energy storage system, connecting the batteries,battery packs, battery packs to the combiner box or the power conversion system as fixed wiring.
·Properties:
The flame retardancy meets the requirements of iec60332-1-2
Uniform insulation thickness to ensure easy, stripping and cutting.
◆ PRODUCT DESCRIPTION:
Temperature range:125 ℃
Rating voltage:DC 900V
Reference standard:CQC1143,PPP58049A
Conductor:stranded tinned or bare copper conductor
Insulation:Lead free XLPO insulation
Jacket:Lead free XLPO

Conductor Insulation Jacket Resistance
Cross section mm2 Nom.Dia (mm) Nom.Thick (mm) Nom.Dia (mm) Nom.(mm) Nom.Dia (mm) Ω/km.20℃(DC)
4 2.6 0.7 4.1 0.7 5.5 5.09
6 3.2 0.7 4.7 0.7 6.1 3.39
10 4.1 0.7 5.6 0.7 7.1 1.95
16 5.6 0.7 7.1 0.7 8.6 1.24
25 7 0.9 8.9 0.8 10.6 0.795
35 8.3 0.9 10.2 0.8 12 0.565
50 9.9 1 12 0.8 13.8 0.393
70 11.7 1.1 14 0.9 16 0.277
95 13.9 1.1 162 0.9 18.2 0.21
120 15.5 1.2 18 0.9 20 0.164
150 17.3 0.4 20.3 1 22.5 0.132
185 19.2 1.6 22.6 1 24.8 0.108
240 23.4 0.7 27 1.1 29.5 0.0817
