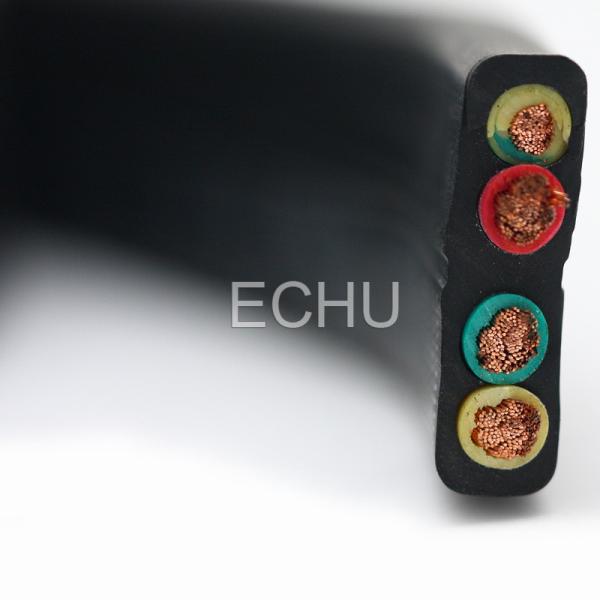

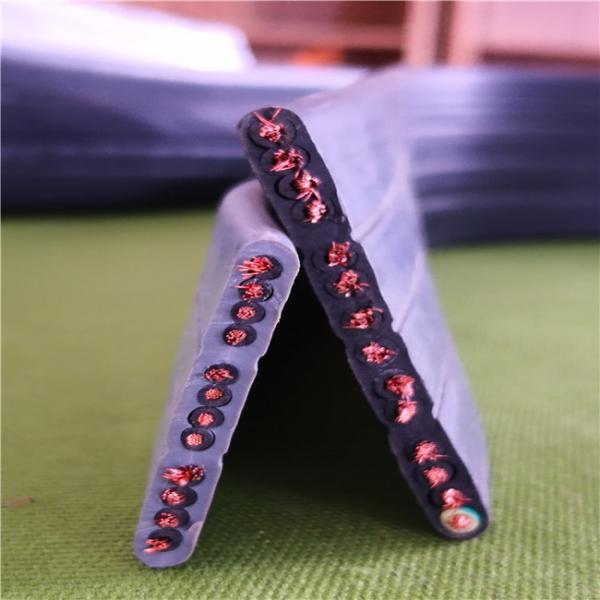

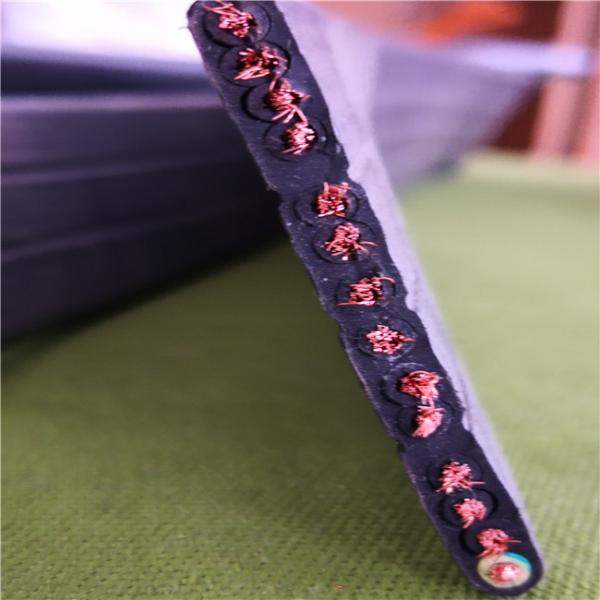

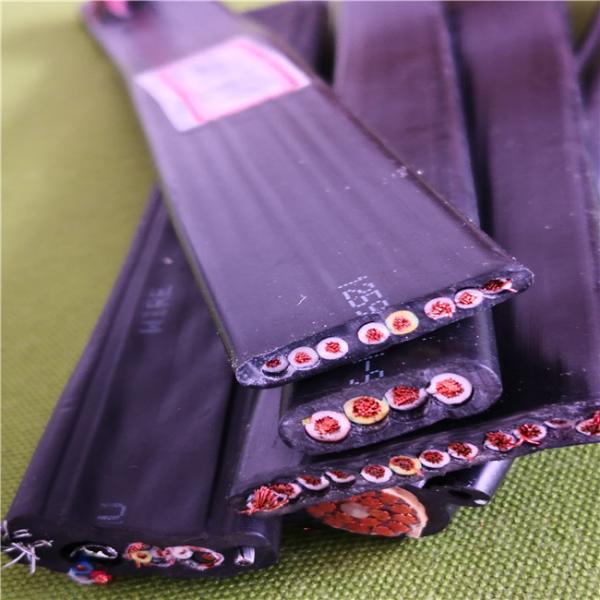

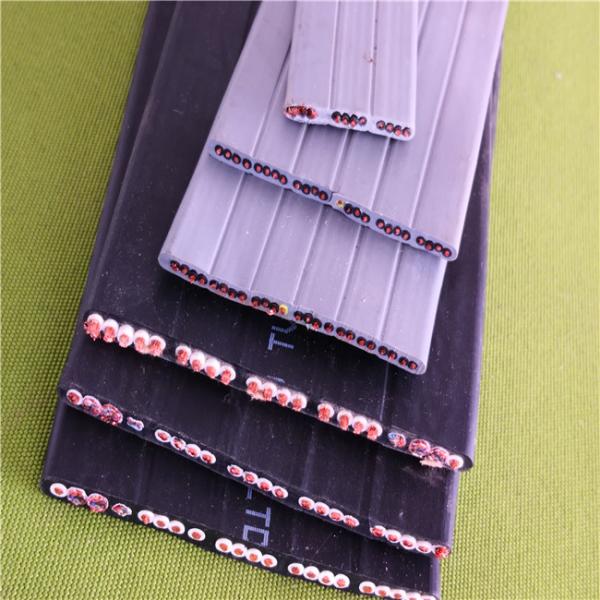

Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Flat Flexible Traveling Cable for Crane or Conveyor in Parrallel type H07VVH6-F with Black Jacket
Specifications
Brand Name :
ECHU
Model Number :
YFFB, H07VVH6-F, H07VVD3H6-F
Certification :
CE
Place of Origin :
China
MOQ :
300M
Price :
USD1.593-USD4.208/M
Payment Terms :
T/T, Western Union
Supply Ability :
10000KM/week
Delivery Time :
10days
Packaging Details :
plywood Reel
Color :
Black, grey, orange
Conductor :
Superfine copper strands acc. to VDE0295, class5
Installation :
Flexible/Movable
Standard :
acc. to VDE0482, part265-2-1 resp. EN50265-2-1 and IEC60332-1
Voltage :
300/500V, 450/750V, 600/1000V
Application :
as connecting/control cable for cranes and conveyors
Description

Flat Flexible Traveling Cable for Crane or Conveyor 14Cx1.5sqmm Black Jacket

As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations, crane and other related products
Structure:
Conductor: Superfine copper strands acc. To VDE0295, CLASS 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Colour: Acc. To 227IEC(brown, blue, black, green/yellow)
5cores or more with black number with white digital coding
Sheath: Special PVC, flame retardant and self-extinguishing;
Colour: Black(RAL9005)or grey (RAL7001)
Standard: Acc. To VDE 0482, part 265-2-1 resp. EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage: ≤ 1.5mm 300/500V >1.5mm: 450/750V
Test voltage: ≤ 1.5mm 2500V >1.5mm: 3000V
Mimimum bending radius: 0.3m<L<0.6m
Burning vertically test: GB/T1 8380.1-2001, IEC 60332-1: 1993 test
Passedstandard: GB5023.6, IEC60227-6, EN 50214.
Used under the normal conditions. The temperature of conductor is lower than 70° C
Temperature range: -15° C to +70° C
Cables are reommended for installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s
If it is more than this, with steel.

Type Cores Sections(mm2) width(mm) thickness(mm) Denity(kg/km) Shape
H07VVH6-F 2 1.25 9.0± 1.0 6.2± 0.5 100.5 LINE TYPE
H07VVH6-F 3 1.25 11.9± 1.0 6.2± 0.5 136.7 LINE TYPE
H07VVH6-F 4 1.25 15.8± 1.0 6.2± 0.5 181.6 LINE TYPE
H07VVH6-F 5 1.25 19.7± 1.0 6.2± 0.5 226.6 LINE TYPE
H07VVH6-F 6 1.25 22.6± 1.5 6.2± 0.5 262.8 LINE TYPE
H07VVH6-F 7 1.25 25.5± 1.5 6.2± 0.5 299 LINE TYPE
H07VVH6-F 8 1.25 28.4± 1.5 6.2± 0.5 335.2 LINE TYPE
H07VVH6-F 9 1.25 31.3± 2.0 6.2± 0.5 371.4 LINE TYPE
H07VVH6-F 10 1.25 34.2± 2.0 6.2± 0.5 407.6 LINE TYPE
H07VVH6-F 11 1.25 37.1± 2.0 6.2± 0.5 443.9 LINE TYPE
H07VVH6-F 12 1.25 40.0± 2.0 6.2± 0.5 480.1 LINE TYPE
H07VVH6-F 13 1.25 42.9± 2.0 6.2± 0.5 516.3 LINE TYPE
H07VVH6-F 14 1.25 46.8± 2.0 6.2± 0.5 561.2 LINE TYPE
H07VVH6-F 15 1.25 49.7± 2.0 6.2± 0.5 597.4 LINE TYPE
H07VVH6-F 16 1.25 52.6± 2.0 6.2± 0.5 633.6 LINE TYPE
H07VVH6-F 17 1.25 55.5± 2.0 6.2± 0.5 669.9 LINE TYPE
H07VVH6-F 18 1.25 59.4± 2.0 6.2± 0.5 714.8 LINE TYPE
H07VVH6-F 19 1.25 62.3± 2.5 6.2± 0.5 751 LINE TYPE
H07VVH6-F 20 1.25 65.2± 2.5 6.2± 0.5 787.2 LINE TYPE
H07VVH6-F 2 1.5 9.3± 1.0 5.8± 0.5 111.3 LINE TYPE
H07VVH6-F 3 1.5 12.3± 1.0 5.8± 0.5 148.5 LINE TYPE
H07VVH6-F 4 1.5 16.3± 1.0 5.8± 0.5 193.8 LINE TYPE
H07VVH6-F 5 1.5 20.3± 1.5 5.8± 0.5 239.2 LINE TYPE
H07VVH6-F 6 1.5 23.3± 1.5 5.8± 0.5 276.3 LINE TYPE
H07VVH6-F 7 1.5 26.3± 1.5 5.8± 0.5 313.5 LINE TYPE
H07VVH6-F 8 1.5 29.3± 1.5 5.8± 0.5 350.6 LINE TYPE
H07VVH6-F 9 1.5 32.3± 2.0 5.8± 0.5 387.7 LINE TYPE
H07VVH6-F 10 1.5 35.3± 2.0 5.8± 0.5 424.9 LINE TYPE
H07VVH6-F 11 1.5 38.3± 2.0 5.8± 0.5 462 LINE TYPE
H07VVH6-F 12 1.5 41.3± 2.0 5.8± 0.5 499.2 LINE TYPE
H07VVH6-F 13 1.5 44.3± 2.0 5.8± 0.5 536.3 LINE TYPE
H07VVH6-F 14 1.5 48.3± 2.0 5.8± 0.5 581.7 LINE TYPE
H07VVH6-F 15 1.5 51.3± 2.0 5.8± 0.5 618.8 LINE TYPE
H07VVH6-F 16 1.5 54.3± 2.0 5.8± 0.5 655.9 LINE TYPE
