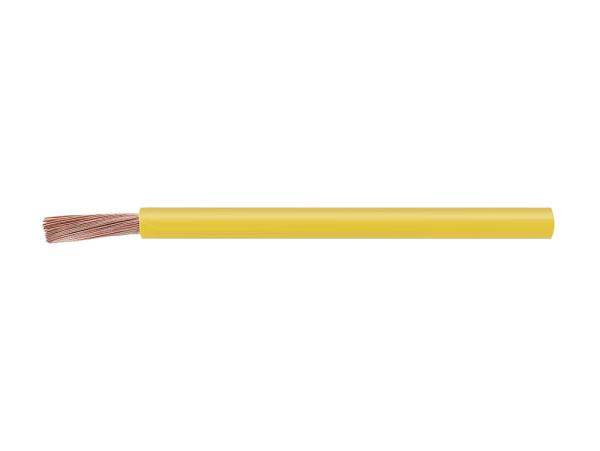

300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable
Specifications
Brand Name :
ECHU
Model Number :
UL1569
Certification :
E312831
Place of Origin :
Shanghai, China
MOQ :
300m
Price :
0.076-3.587/m
Packaging Details :
305m/roll, 610m/roll
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000km/week
Insulation :
ROHS PVC
Jacket :
ROHS PVC
Color :
Different kind of colors
Voltage :
300V
Description

300V 105℃ UL wire UL1569 Electrical Cable

AVailable size is from 26AWG to 2AWG

Application: Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage

1. Rated Temperature: 105℃

2. Rated Voltage: 300V

3. Standard: UL758 & UL1581/CSA C22.2

4. Solid or stranded bare copper wire or tinned copper wire

5. PVC insualtion, Uniform insulation thickness to ensure, easy stripping and cutting

6.Environment testing pass ROHS, REACH

7. Passes UL VW-1 & CSA FT1 vertical flame test Ultra fine version are availabe

300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 4AWG in Yellow Color, E312831 ECHU UL Cable

Type Size(AWG) Diameter(mm) Maximum resistance of conductor at 20℃
UL1569 26 1.3 140
UL1569 25 1.35 111
UL1569 24 1.4 87.6
UL1569 23 1.5 69.2
UL1569 22 1.55 55.4
UL1569 21 1.6 43.6
UL1569 20 1.7 34.6
UL1569 19 1.9 27.4
UL1569 18 2.0 21.8
UL1569 17 2.1 17.3
UL1569 16 2.3 13.7
UL1569 15 2.6 10.9
UL1569 14 2.95 8.62
UL1569 13 3.2 6.82
UL1569 12 3.45 5.43
UL1569 11 4.2 4.3
UL1569 10 4.55 3.409
UL1569 9 5.35 2.705
UL1569 8 5.8 2.144
UL1569 7 7.0 1.7
UL1569 6 7.7 1.348
UL1569 5 8.3 1.07
UL1569 4 9.1 0.8481
UL1569 3 10 0.6727
UL1569 2 10.9 0.5335
