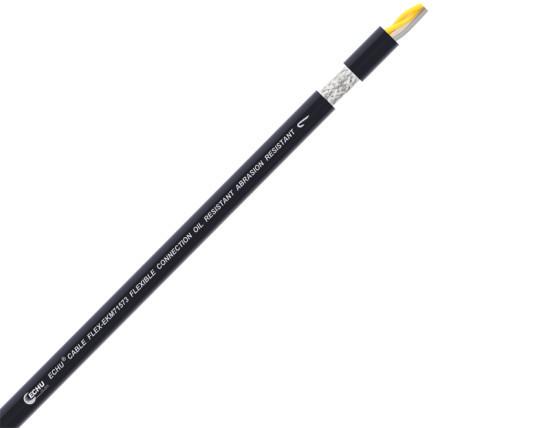

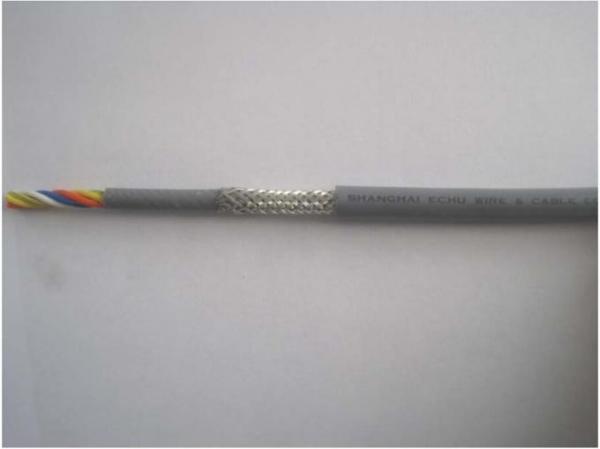

Low Smoke Zero Halogen Heat Resistance Shielded and Twisted Pairs Data Cable LIHCH
Low Smoke Zero Halogen Heat Resistance Shielded and Twisted Pairs Data Cable LIHCH
Low Smoke Zero Halogen Heat Resistance Shielded and Twisted Pairs Data Cable LIHCH
Low Smoke Zero Halogen Heat Resistance Shielded and Twisted Pairs Data Cable LIHCH
Low Smoke Zero Halogen Heat Resistance Shielded and Twisted Pairs Data Cable LIHCH
Low Smoke Zero Halogen Heat Resistance Shielded and Twisted Pairs Data Cable LIHCH
Specifications
Brand Name :
ECHU
Model Number :
LiYY, LiYCY
Certification :
CE
Place of Origin :
China
MOQ :
300meter
Price :
USD0.108-USD0.909/M
Payment Terms :
T/T, Western Union
Supply Ability :
1000km/Weeks
Delivery Time :
7 to 10days
Packaging Details :
splint reel/splint box
Color :
Black
Insulation :
PVC
Jacket :
PVC
Conductor :
copper
Shield :
tinned copper
Voltage :
300V
Description

PVC Sheath Electronic Signal Control Cable LiHCH

Shield Data Cable, LiHCH Cable

LiHCH is a VDE approved, flexible, overall shielded, PVC multi-conductor European data transmission cable.

For use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, damp or wet conditions.

Commonly used as control and signal cables in the electronics of computer systems, electronic control equipment, office machines and measuring devices in the tool making and machine industries. The tinned copper braid shield offers better protection against electrical interference for precise impulse transmissions.

LiYCY is recommended when a small outer diameter is required. Not permitted for outdoor use.

Conductor: Strands of oxygen-free copper wire acc. To DIN VDE0812
INSULATION: PVC I12 DIN VDE 0207 PART4
SHIELDING: TINNED COPPER BRAINED SHIELDED.
SHEATH: PVC YM1 DIN VDE0207 PART5
Property: Oil resistance
Standards: CE CERT. ROHS MATERIAL

Related Volatge: 350V/500V
Test Volatge: 800v/1200v
The minimum bending radius: Fixed: 5xd
When travel, the bending radius is 10xd
Anti-UV: 8X107CJ/KG

Low Smoke Zero Halogen Heat Resistance Shielded and Twisted Pairs Data Cable LIHCH

Type Size Conductor φ Weight KG/KM O.D.
LIHCH 0.14*2C 18 0.1 19 4.1
LIHCH 0.14*3C 18 0.1 22.6 4.3
LIHCH 0.14*4C 18 0.1 29 4.8
LIHCH 0.14*5C 18 0.1 33.4 5.1
LIHCH 0.14*6C 18 0.1 37.8 5.4
LIHCH 0.14*7C 18 0.1 40.8 5.4
LIHCH 0.14*8C 18 0.1 45.2 5.7
LIHCH 0.14*9C 18 0.1 53.1 6.4
LIHCH 0.14*10C 18 0.1 57.7 6.7
LIHCH 0.14*11C 18 0.1 61.5 6.9
LIHCH 0.14*12C 18 0.1 64.5 6.9
LIHCH 0.14*13C 18 0.1 68.9 7.2
LIHCH 0.14*14C 18 0.1 71.9 7.2
LIHCH 0.14*15C 18 0.1 80.1 7.7
LIHCH 0.14*16C 18 0.1 83.1 7.7
LIHCH 0.14*17C 18 0.1 87.8 8
LIHCH 0.14*18C 18 0.1 90.8 8
LIHCH 0.14*19C 18 0.1 93.9 8
LIHCH 0.14*20C 18 0.1 97.8 8.2
LIHCH 0.14*21C 18 0.1 101.6 8.3
LIHCH 0.14*22C 18 0.1 111.2 9
LIHCH 0.14*23C 18 0.1 116.1 9.3
LIHCH 0.14*24C 18 0.1 119.1 9.3
LIHCH 0.14*25C 18 0.1 123.1 9.5
LIHCH 0.14*26C 18 0.1 126.1 9.5
LIHCH 0.14*27C 18 0.1 129.1 9.5
LIHCH 0.14*28C 18 0.1 134.3 9.9
LIHCH 0.14*29C 18 0.1 137.3 9.9
LIHCH 0.14*30C 18 0.1 140.3 9.9
LIHCH 0.14*31C 18 0.1 150 10.4
LIHCH 0.14*32C 18 0.1 153.1 10.4
LIHCH 0.14*33C 18 0.1 156.1 10.4
LIHCH 0.14*34C 18 0.1 161.1 10.7
LIHCH 0.14*35C 18 0.1 164.1 10.7
LIHCH 0.14*36C 18 0.1 167.2 10.7
LIHCH 0.14*37C 18 0.1 170.2 10.7
LIHCH 0.25*2C 16 0.14 25.6 4.7
LIHCH 0.25*3C 16 0.14 30.9 4.9
LIHCH 0.25*4C 16 0.14 36.7 5.2
LIHCH 0.25*5C 16 0.14 42.7 5.6
LIHCH 0.25*6C 16 0.14 51.8 6.2
LIHCH 0.25*7C 16 0.14 56.2 6.2
LIHCH 0.25*8C 16 0.14 62.5 6.6
LIHCH 0.25*9C 16 0.14 69.4 7.1
LIHCH 0.25*10C 16 0.14 79.3 7.7
LIHCH 0.25*11C 16 0.14 84.8 7.9
LIHCH 0.25*12C 16 0.14 89.2 7.9
LIHCH 0.25*13C 16 0.14 95.4 8.2
LIHCH 0.25*14C 16 0.14 99.8 8.2
LIHCH 0.25*15C 16 0.14 106.2 8.6
LIHCH 0.25*16C 16 0.14 110.6 8.6
LIHCH 0.25*17C 16 0.14 121.5 9.2
LIHCH 0.25*18C 16 0.14 125.9 9.2
LIHCH 0.25*19C 16 0.14 130.4 9.2
LIHCH 0.25*20C 16 0.14 135.9 9.4
LIHCH 0.25*21C 16 0.14 141.4 9.6
LIHCH 0.25*22C 16 0.14 148.8 10.1
LIHCH 0.25*23C 16 0.14 161.1 10.8
LIHCH 0.25*24C 16 0.14 165.6 10.8
LIHCH 0.25*25C 16 0.14 171.2 11
LIHCH 0.25*26C 16 0.14 175.7 11
LIHCH 0.25*27C 16 0.14 180.1 11
LIHCH 0.25*28C 16 0.14 186.6 11.3
LIHCH 0.25*29C 16 0.14 191 11.3
LIHCH 0.25*30C 16 0.14 195.5 11.3
LIHCH 0.25*31C 16 0.14 207.9 11.9
LIHCH 0.25*32C 16 0.14 212.3 11.9
LIHCH 0.25*33C 16 0.14 216.7 11.9
LIHCH 0.25*34C 16 0.14 223.7 12.3
LIHCH 0.25*35C 16 0.14 228.2 12.3
LIHCH 0.25*36C 16 0.14 232.6 12.3
LIHCH 0.25*37C 16 0.14 237.1 12.3
LIHCH 0.34*2C 7 0.25 27.9 4.8
LIHCH 0.34*3C 7 0.25 34.2 5
LIHCH 0.34*4C 7 0.25 41 5.4
LIHCH 0.34*5C 7 0.25 48.1 5.7
LIHCH 0.34*6C 7 0.25 58.2 6.4
LIHCH 0.34*7C 7 0.25 63.6 6.4
LIHCH 0.34*8C 7 0.25 70.9 6.8
LIHCH 0.34*9C 7 0.25 82.4 7.5
LIHCH 0.34*10C 7 0.25 89.9 7.9
LIHCH 0.34*11C 7 0.25 96.4 8.1
LIHCH 0.34*12C 7 0.25 101.8 8.1
LIHCH 0.34*13C 7 0.25 109 8.5
LIHCH 0.34*14C 7 0.25 114.3 8.5
LIHCH 0.34*15C 7 0.25 126.1 9
LIHCH 0.34*16C 7 0.25 131.5 9
LIHCH 0.34*17C 7 0.25 139.1 9.5
LIHCH 0.34*18C 7 0.25 144.5 9.5
LIHCH 0.34*19C 7 0.25 149.9 9.5
LIHCH 0.34*20C 7 0.25 156.5 9.7
LIHCH 0.34*21C 7 0.25 163 9.9
LIHCH 0.34*22C 7 0.25 176.5 10.6
LIHCH 0.34*23C 7 0.25 184.3 11
LIHCH 0.34*24C 7 0.25 189.7 11
LIHCH 0.34*25C 7 0.25 196.4 11.2
LIHCH 0.34*26C 7 0.25 201.8 11.2
LIHCH 0.34*27C 7 0.25 207.2 11.2
LIHCH 0.34*28C 7 0.25 214.7 11.6
LIHCH 0.34*29C 7 0.25 220.1 11.6
LIHCH 0.34*30C 7 0.25 225.5 11.6
LIHCH 0.34*31C 7 0.25 239 12.1
LIHCH 0.34*32C 7 0.25 244.4 12.1
LIHCH 0.34*33C 7 0.25 249.8 12.1
LIHCH 0.34*34C 7 0.25 257.9 12.6
LIHCH 0.34*35C 7 0.25 263.3 12.6
LIHCH 0.34*36C 7 0.25 268.7 12.6
LIHCH 0.34*37C 7 0.25 274.1 12.6
LIHCH 0.5*2C 33 0.14 37.7 5.7
LIHCH 0.5*3C 33 0.14 50.2 6.2
LIHCH 0.5*4C 33 0.14 60.8 6.6
LIHCH 0.5*5C 33 0.14 71.6 7.2
LIHCH 0.5*6C 33 0.14 86.3 7.9
LIHCH 0.5*7C 33 0.14 94.7 7.9
LIHCH 0.5*8C 33 0.14 105.9 8.4
LIHCH 0.5*9C 33 0.14 122.5 9.4
LIHCH 0.5*10C 33 0.14 133.9 9.9
LIHCH 0.5*11C 33 0.14 148.8 10.4
LIHCH 0.5*12C 33 0.14 157.2 10.4
LIHCH 0.5*13C 33 0.14 168.5 10.8
LIHCH 0.5*14C 33 0.14 176.9 10.8
LIHCH 0.5*15C 33 0.14 188.4 11.4
LIHCH 0.5*16C 33 0.14 196.8 11.4
LIHCH 0.5*17C 33 0.14 214.3 12.1
LIHCH 0.5*18C 33 0.14 222.7 12.1
LIHCH 0.5*19C 33 0.14 231.1 12.1
LIHCH 0.5*20C 33 0.14 241.3 12.4
LIHCH 0.5*21C 33 0.14 251.4 12.6
LIHCH 0.5*22C 33 0.14 271 13.6
LIHCH 0.5*23C 33 0.14 283.9 14.2
LIHCH 0.5*24C 33 0.14 292.3 14.2
LIHCH 0.5*25C 33 0.14 309.6 14.7
LIHCH 0.5*26C 33 0.14 318 14.7
LIHCH 0.5*27C 33 0.14 326.4 14.7
LIHCH 0.5*28C 33 0.14 338.3 15.1
LIHCH 0.5*29C 33 0.14 346.7 15.1
LIHCH 0.5*30C 33 0.14 355.1 15.1
LIHCH 0.5*31C 33 0.14 367.4 15.7
LIHCH 0.5*32C 33 0.14 375.8 15.7
LIHCH 0.5*33C 33 0.14 384.1 15.7
LIHCH 0.5*34C 33 0.14 404.4 16.4
LIHCH 0.5*35C 33 0.14 412.8 16.4
LIHCH 0.5*36C 33 0.14 421.2 16.4
LIHCH 0.5*37C 33 0.14 429.6 16.4
LIHCH 0.75*2C 49 0.14 47.9 6.3
LIHCH 0.75*3C 49 0.14 60.5 6.6
LIHCH 0.75*4C 49 0.14 74.1 7.1
LIHCH 0.75*5C 49 0.14 91.8 7.9
LIHCH 0.75*6C 49 0.14 106 8.5
LIHCH 0.75*7C 49 0.14 117.2 8.5
LIHCH 0.75*8C 49 0.14 135.9 9.3
LIHCH 0.75*9C 49 0.14 151.5 10.1
LIHCH 0.75*10C 49 0.14 171.3 10.9
LIHCH 0.75*11C 49 0.14 184.3 11.2
LIHCH 0.75*12C 49 0.14 195.5 11.2
LIHCH 0.75*13C 49 0.14 215.5 11.9
LIHCH 0.75*14C 49 0.14 226.7 11.9
LIHCH 0.75*15C 49 0.14 241.6 12.5
LIHCH 0.75*16C 49 0.14 252.8 12.5
LIHCH 0.75*17C 49 0.14 274.9 13.4
LIHCH 0.75*18C 49 0.14 286 13.4
LIHCH 0.75*19C 49 0.14 297.2 13.4
LIHCH 0.75*20C 49 0.14 310.5 13.7
LIHCH 0.75*21C 49 0.14 323.7 14
LIHCH 0.75*22C 49 0.14 347.7 15
LIHCH 0.75*23C 49 0.14 363.4 15.6
LIHCH 0.75*24C 49 0.14 374.5 15.6
LIHCH 0.75*25C 49 0.14 388 15.9
LIHCH 0.75*26C 49 0.14 399.2 15.9
LIHCH 0.75*27C 49 0.14 410.3 15.9
LIHCH 0.75*28C 49 0.14 433.3 16.6
LIHCH 0.75*29C 49 0.14 444.5 16.6
LIHCH 0.75*30C 49 0.14 455.6 16.6
LIHCH 0.75*31C 49 0.14 471.4 17.2
LIHCH 0.75*32C 49 0.14 482.5 17.2
LIHCH 0.75*33C 49 0.14 493.7 17.2
LIHCH 0.75*34C 49 0.14 518.2 18
LIHCH 0.75*35C 49 0.14 529.4 18
LIHCH 0.75*36C 49 0.14 540.5 18
LIHCH 0.75*37C 49 0.14 551.7 18
