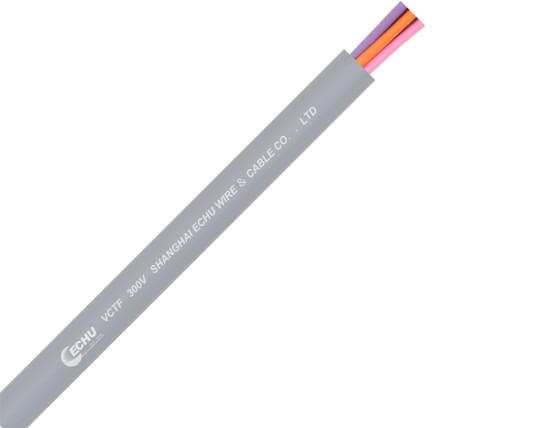

JIS Standards PVC Insulation PVC Jacket Soft Electrical Cable VCTF 300V
JIS Standards PVC Insulation PVC Jacket Soft Electrical Cable VCTF 300V
Specifications
Brand Name :
ECHU
Model Number :
VCTF
Certification :
PSE
Place of Origin :
China
MOQ :
300m
Price :
USD0.5-USD2.03/M
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000KM/day
Delivery Time :
7 to 10days
Packaging Details :
in roll, splint boxes, pallet
Color :
Red, Black
Conductor :
bare copper
Shape :
Parrallel
Standard :
JIS
Description

JIS Standards PVC Insulation PVC Jacket Soft Electrical Cable VCTF 300V

Application of Standards:JIS C3312-2000

Product structure and color Conductor: Stranded or solid bare copper or tinned copper wire JIS C3102JIS C3152 Insulation: PVC comply with JIS C3312-2000

Color code: cores using color recognition,should be consistent with the standard JIS C3312-2000

Sheath Material :PVC TYPE Sheath

color:black (RAL9005) Technical parameters

Rated voltage: 600V

Test voltage: 3000V/1MIN comply with JIS C3005 Minimum

bending radius Fixed laying: 4xd (cable diameter)

Mobile installation: 7.5xd (cable diameter)

Temperature

Fixed laying:-30C-+80C

Flexing : -5c-+70C

Fire retardant: Flame retardant and self-extinguishing acc. to JIS C3005 NO.4.26

Characteristics and Compliance Features: comply with PSE fine conductors, a smaller bending angle soft Meet the certification: ROHS Typical applications: for electrical, instrumentation, power equipment and automation devices without external direction even without forced traction movable cable.

Type Cond.No. Cond.Dia.φ Weight External Dia.
VCTF 0.5*2C 20 0.18 55.4 6
VCTF 0.5*3C 20 0.18 64.8 6.3
VCTF 0.5*4C 20 0.18 77 6.8
VCTF 0.5*5C 20 0.18 89.9 7.4
VCTF 0.5*6C 20 0.18 103.1 8
VCTF 0.5*7C 20 0.18 112.8 8
VCTF 0.5*8C 20 0.18 125.9 8.6
VCTF 0.5*9C 20 0.18 145.8 9.6
VCTF 0.5*10C 20 0.18 164.8 10.3
VCTF 0.5*11C 20 0.18 181.3 10.7
VCTF 0.5*12C 20 0.18 187.9 10.7
VCTF 0.5*13C 20 0.18 203.9 11.2
VCTF 0.5*14C 20 0.18 210.4 11.2
VCTF 0.5*15C 20 0.18 229.6 11.9
VCTF 0.5*16C 20 0.18 238.5 11.9
VCTF 0.5*17C 20 0.18 258.5 12.6
VCTF 0.5*18C 20 0.18 265.2 12.6
VCTF 0.5*19C 20 0.18 274.8 12.6
VCTF 0.5*20C 20 0.18 287 13
VCTF 0.5*21C 20 0.18 302.1 13.3
VCTF 0.5*22C 20 0.18 308.2 14.2
VCTF 0.5*23C 20 0.18 325.7 14.9
VCTF 0.5*24C 20 0.18 335.4 14.9
VCTF 0.5*25C 20 0.18 345.1 14.9
VCTF 0.5*26C 20 0.18 358.9 15.3
VCTF 0.5*27C 20 0.18 368.6 15.3
VCTF 0.5*28C 20 0.18 385.5 15.9
VCTF 0.5*29C 20 0.18 395.1 15.9
VCTF 0.5*30C 20 0.18 404.8 15.9
VCTF 0.5*31C 20 0.18 422.6 16.5
VCTF 0.5*32C 20 0.18 432.3 16.5
VCTF 0.5*33C 20 0.18 442 16.5
VCTF 0.5*34C 20 0.18 460.5 17.2
VCTF 0.5*35C 20 0.18 470.2 17.2
VCTF 0.5*36C 20 0.18 479.9 17.2
VCTF 0.5*37C 20 0.18 489.6 17.2
VCTF 0.75*2C 30 0.18 68.5 6.6
VCTF 0.75*3C 30 0.18 80.9 7
VCTF 0.75*4C 30 0.18 97 7.6
VCTF 0.75*5C 30 0.18 122 8.6
VCTF 0.75*6C 30 0.18 140 9.3
VCTF 0.75*7C 30 0.18 153.1 9.3
VCTF 0.75*8C 30 0.18 171 10
VCTF 0.75*9C 30 0.18 197.4 11.1
VCTF 0.75*10C 30 0.18 219.9 11.8
VCTF 0.75*11C 30 0.18 237.9 12.2
VCTF 0.75*12C 30 0.18 247.1 12.2
VCTF 0.75*13C 30 0.18 268.6 12.8
VCTF 0.75*14C 30 0.18 277.5 12.8
VCTF 0.75*15C 30 0.18 302.9 13.5
VCTF 0.75*16C 30 0.18 314.6 13.5
VCTF 0.75*17C 30 0.18 341.1 14.3
VCTF 0.75*18C 30 0.18 350.2 14.3
VCTF 0.75*19C 30 0.18 363.3 14.3
VCTF 0.75*20C 30 0.18 379.6 14.8
VCTF 0.75*21C 30 0.18 399.7 15.1
VCTF 0.75*22C 30 0.18 407.6 16.2
VCTF 0.75*23C 30 0.18 430.8 17
VCTF 0.75*24C 30 0.18 443.9 17
VCTF 0.75*25C 30 0.18 462.4 17.4
VCTF 0.75*26C 30 0.18 475.5 17.4
VCTF 0.75*27C 30 0.18 488.7 17.4
VCTF 0.75*28C 30 0.18 511 18.1
VCTF 0.75*29C 30 0.18 524.1 18.1
VCTF 0.75*30C 30 0.18 537.3 18.1
VCTF 0.75*31C 30 0.18 560.9 18.9
VCTF 0.75*32C 30 0.18 574 18.9
VCTF 0.75*33C 30 0.18 587.2 18.9
VCTF 0.75*34C 30 0.18 611.6 19.7
VCTF 0.75*35C 30 0.18 624.8 19.7
VCTF 0.75*36C 30 0.18 637.9 19.7
VCTF 0.75*37C 30 0.18 651.1 19.7

Size: 0.2-22mm2 or more, cores 1- 37 cores or more
