Specifications
Brand Name :
ECHU
Model Number :
TVVB, H05VVH6-F, TVVBG, TVVBP, TVVBPG, TVVBG-STP
Certification :
CCC, CE
Place of Origin :
China
MOQ :
100-300M
Price :
0.1013-10.198USD/m
Payment Terms :
T/T, Western Union
Supply Ability :
10000km/week
Delivery Time :
within 10days
Packaging Details :
plywoode reel
Color :
Orange
Voltage :
300/500V
installation :
Flexible
Insulation :
PVC
Jacket :
Flexible PVC
Description

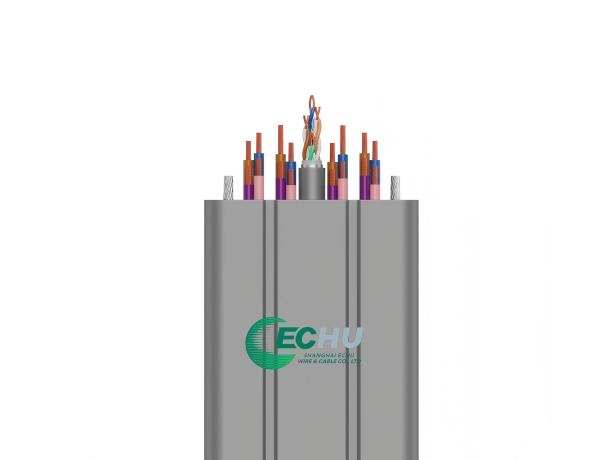

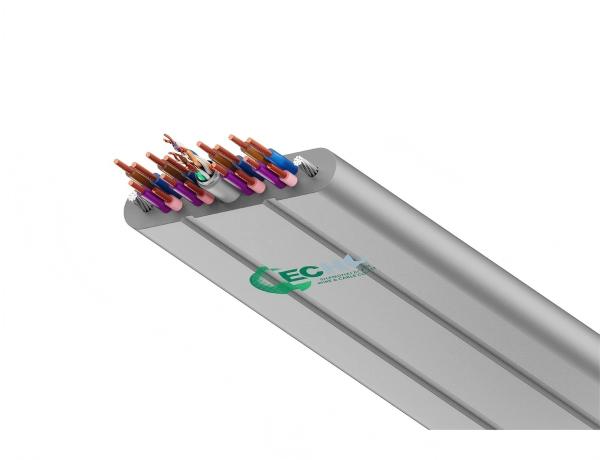

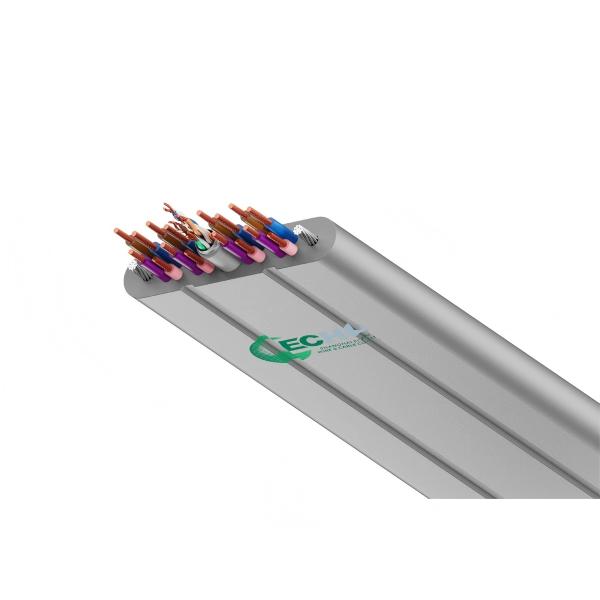

ECHU Flat Traveling Cable for Elevator use, Shielded Flat Travel Cable with STP/UTP CAT6

Approvals: CCC & CE approval


Conductor:bare copper , VDE 0295 class 5
Insulation:special PVC
Sheath: special PVC
flexible, wear -resistant ,cold-resistant

Range of application:
As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
Properties:
The outer sheath is extensively resistant to oil and cooling liquid.
Standards:GB5023.6,IEC60227-6,EN 50214
Structure:
Conductor: fine strands of bare copper wire,
Acc.to VDE0295 CLASS5
Insulation:special PVC
Colour:yellow,white,orangeg with black number with white digital coding
Bearing:steel rope
Outer sheath:flexible PVC,cold resistance ,flame resistance
Colour:grey(RAL7001)
Technical data:
Rated voltage:300/500V
Test voltage:2500V
Minimum bending radius:0.3m<L<0.6M
Burning vertically test:GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions.the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C
TVVB (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.

Type Size Widthxthickness(mm)
TVVB2G 75-5+2X1.0 22.9±1.0×9.3±0.5
TVVB2G 75-5+2X0.75 22.9±1.0×9.3±0.5
TVVB1G 75-3+2X0.75 17.0±1.0×6.5±0.5
TVVB2G SYV75-5-2 13.3±1.0×7.1±0.5
SYV2G 75-5-2 8.1±0.5×3.7±0.2

E CORES SPEC. Shielding Width mm Thickness mm Weight (kg/km)
TVVBP 24 0.75 2*2P*0.75(bare copper braid) 44.3±2.0 8.4±0.5 824
TVVBP 30 0.75 2*2P*0.75(bare copper braid) 53.1±2.0 7.8±0.5 925
TVVBP 36 0.75 2*2P*0.75(bare copper braid) 56.8±2.0 8.4±0.5 1042
TVVBP 40 0.75 2*2P*0.75(bare copper braid) 64.2±2.5 7.8±0.5 1087
TVVBP 42 0.75 2*2P*0.75(bare copper braid) 63.0±2.5 8.4±0.5 1140
TVVBP 48 0.75 2*2P*0.75(bare copper braid) 69.1±2.5 8.4±0.5 1238
TVVBP 54 0.75 2*2P*0.75(bare copper braid) 75.3±2.5 8.4±0.5 1336
TVVBP 60 0.75 2*2P*0.75(bare copper braid) 81.4±2.5 8.4±0.5 1434
TVVBP 66 0.75 2*2P*0.75(bare copper braid) 87.6±2.5 8.4±0.5 1533
TVVBP(G) 24 0.75 2*2P*0.75(bare copper braid) 53.3±2.0 7.8±0.5 963
TVVBP(G) 30 0.75 2*2P*0.75(bare copper braid) 61.3±2.5 8.4±0.5 1047
TVVBP(G) 36 0.75 2*2P*0.75(bare copper braid) 65.0±2.5 7.8±0.5 1171
TVVBP(G) 40 0.75 2*2P*0.75(bare copper braid) 72.4±2.5 8.4±0.5 1210
TVVBP(G) 42 0.75 2*2P*0.75(bare copper braid) 72.2±2.5 8.4±0.5 1301
TVVBP(G) 48 0.75 2*2P*0.75(bare copper braid) 78.3±2.5 8.4±0.5 1399
TVVBP(G) 54 0.75 2*2P*0.75(bare copper braid) 84.5±2.5 8.4±0.5 1497
TVVBP(G) 60 0.75 2*2P*0.75(bare copper braid) 90.6±2.5 8.4±0.5 1596
TVVBP(G) 66 0.75 2*2P*0.75(bare copper braid) 96.8±2.5 8.4±0.5 1694
