RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
Specifications
Brand Name :
ECHU
Model Number :
UL2501
Certification :
UL
Place of Origin :
China
MOQ :
200Meter
Price :
USD0.155-USD2.88/m
Payment Terms :
T/T, Western Union
Supply Ability :
10000KM/week
Delivery Time :
10day after receiving payment
Packaging Details :
splint reel/ splint box
Type :
Insulaton
Application :
Appliance
Rated Voltage :
600V
Rated Temp :
105℃
Conductor Material :
Copper
Conductor Type :
stranded
Installation :
flexible
Description

RoHS UL2501 Sheild PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable

Application:

Robots,towing chains,mobile devices

◆Properties:

Waterproofing;oil resistance;coolresistance;abra- sion resistancefame resistance;anti-ultraviolet. Bending for life:above 10000000times

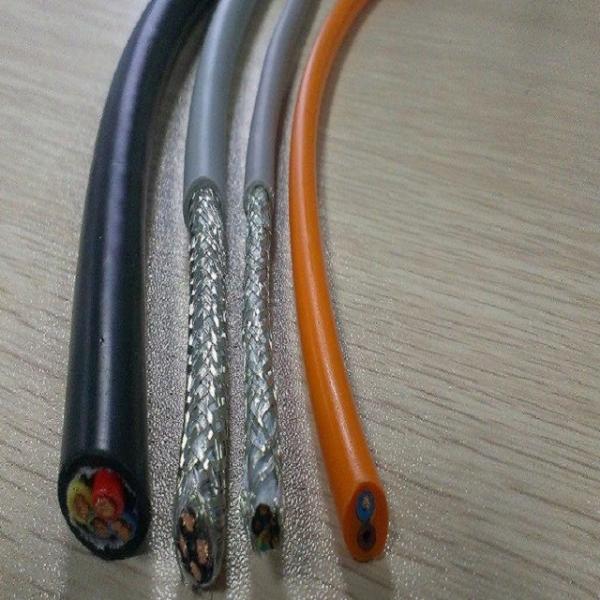

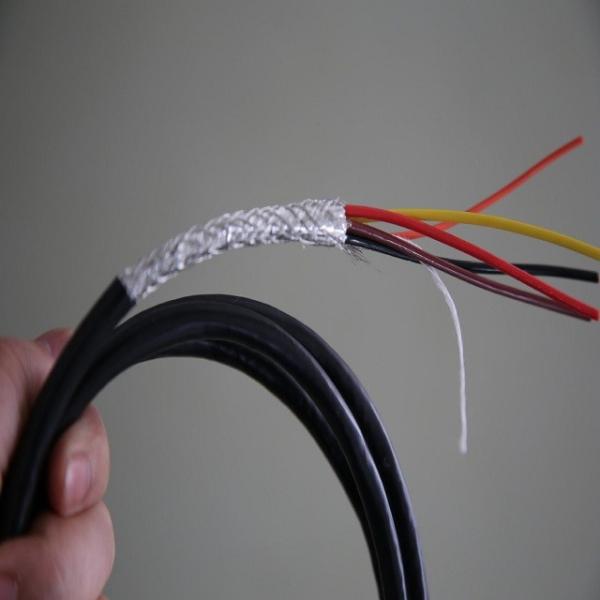

◆ Structure:

Conductor:Fine strands of oxygen-free copper wire Insulation:special PVC

Shielding:tinned copper brainded shielding Dentity:above 80%

Sheath:special PVC

Black grey orange Related voltage:600V

Test voltage:3000V

The working temperature:

fixed installation:-15℃~+105℃ Moved installation:-5℃~+105℃ Minimun bending radius:

fixed installation:5×outer diameter Moved installation:

When travel<10m,bending radius of 8×d When trave≥10m,bending radius of 10×d

Part-No

Specification

 (kg/km) Weight

(mm)

Extermal Diameter
2501 18AWG*2C 122 9.7
2501 18AWG*3C 147 10.4
2501 18AWG*4C 171 11.1
2501 18AWG*6C 238 13.1
2501 18AWG*8C 314 15.1
2501 18AWG*10C 400 17.2
2501 BAWG*12C 485 19.2
2501 18AWG*16C 503 18.6
2501 18AWG*20C 615 20.7
2501 16AWG*2C 149 10.6
2501 16AWG*3C 174 11.1
2501 16AWG*4C 220 12.2
2501 16AWG*6C 299 14.2
2501 16AWG*8C 395 16.4
2501 16AWG*10C 488 18.6
2501 16AWG*12C 604 21
2501 16AWG*16C 634 20.3
2501 16AWG*20C 785 22.6

Part-No

Specification

 (kg/km) Weight

(mm)

Extemal Diameter
2501 14AWG*2C 182 11.4
2501 AWG*3C 222 12.2
2501 14AWG*4C 266 13.1
2501 14AWG*6C 381 15.6
2501 14AWG*8C 495 18
2501 14AWG*10C 634 20.6
2501 14AWG*12C 769 23
2501 14AWG*16C 832 22.4
2501 14AWG*20C 1013 24.7
2501 12AWG*2C 237 12.7
2501 12AWG*3C 288 13.3
2501 12AWG*4C 354 14.6
2501 12AWG*5C 431 16
2501 12AWG*6C 511 17.4
2501 12AWG*7C 595 18.9
2501 10AWG*2C 340 15
2501 10AWG*3C 424 16
2501 10AWG*4C 527 17.5
