UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
UL2464 Power Lighting Cable Wire Low Voltage Power Connection cable 300V 80℃
Specifications
Brand Name :
ECHU or OEM
Model Number :
UL2464
Certification :
CCC, UL, ISO...
Place of Origin :
Shanghai, China
MOQ :
300M
Price :
USD0.315 -5.128/M
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000KM/Week
Delivery Time :
7 days after receiving deposit
Packaging Details :
wooden reel or wooden box
Description

Appliancaton:

As measuring, monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air condition system.

Properties:

Good insulation property, excellent chemical performance, electromagnetic wave resistance. Excellent crosstalk-resistant property.

Standards: UL 758

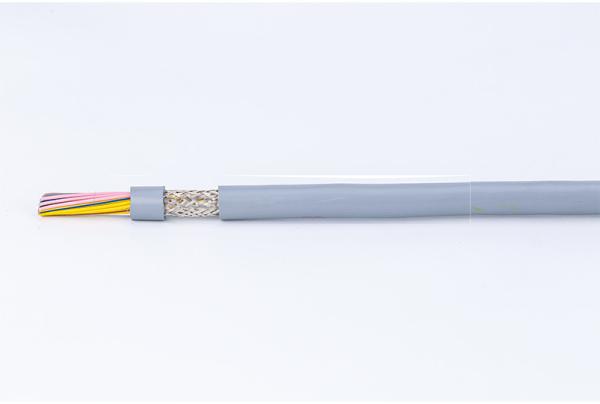

Structure:

Conductor: fine strands of tinned copper wire, exellent corrosion resistance.

Insulation: special PVC

Colour: acc. to UL 758

Inner shielding: aluminum foil

Drain wire: bare copper (optional)

Shield: bare or tinned copper shielded

Sheath: 80 heat-resistant flame-resistant PVC, pass VW-1 flame testing

Colour: green (RAL6018) orange(RAL2003) purple(RAL4001)

or refer to customers requirement.

Technical data:

Rated voltage: 300V

Test voltage: 2000V

Type Spec. Pairs Con. No. Per Cond. Dia.φ weight /KM External dia/least mm
UL2464 26AWG*2C 2 7 0.16 45.1 6.1
UL2464 26AWG*2C 3 7 0.16 53.8 6.5
UL2464 26AWG*2C 4 7 0.16 64.2 7.0
UL2464 26AWG*2C 5 7 0.16 75.3 7.7
UL2464 26AWG*2C 32 7 0.16 336.8 16.1
UL2464 26AWG*2C 33 7 0.16 343 16.1
UL2464 26AWG*2C 34 7 0.16 358.1 16.8
UL2464 26AWG*2C 35 7 0.16 364.3 16.8
UL2464 26AWG*2C 36 7 0.16 370.4 16.8
UL2464 25AWG*2C 2 11 0.14 48.8 6.1
UL2464 25AWG*2C 3 11 0.14 58.4 6.4
UL2464 25AWG*2C 4 11 0.14 69.9 6.9
UL2464 25AWG*2C 5 11 0.14 82 7.6
UL2464 25AWG*2C 6 11 0.14 94.6 8.2
UL2464 25AWG*2C 7 11 0.14 101.9 8.2
UL2464 25AWG*2C 31 11 0.14 364 15.9
UL2464 25AWG*2C 32 11 0.14 371.3 15.9
UL2464 25AWG*2C 33 11 0.14 378.6 15.9
UL2464 25AWG*2C 34 11 0.14 394.6 16.5
UL2464 25AWG*2C 35 11 0.14 401.8 16.5
UL2464 25AWG*2C 36 11 0.14 409.1 16.5
UL2464 24AWG*2C 2 11 0.16 61.6 7.6
UL2464 24AWG*2C 3 11 0.16 73 7.9
UL2464 24AWG*2C 4 11 0.16 88 8.7
UL2464
